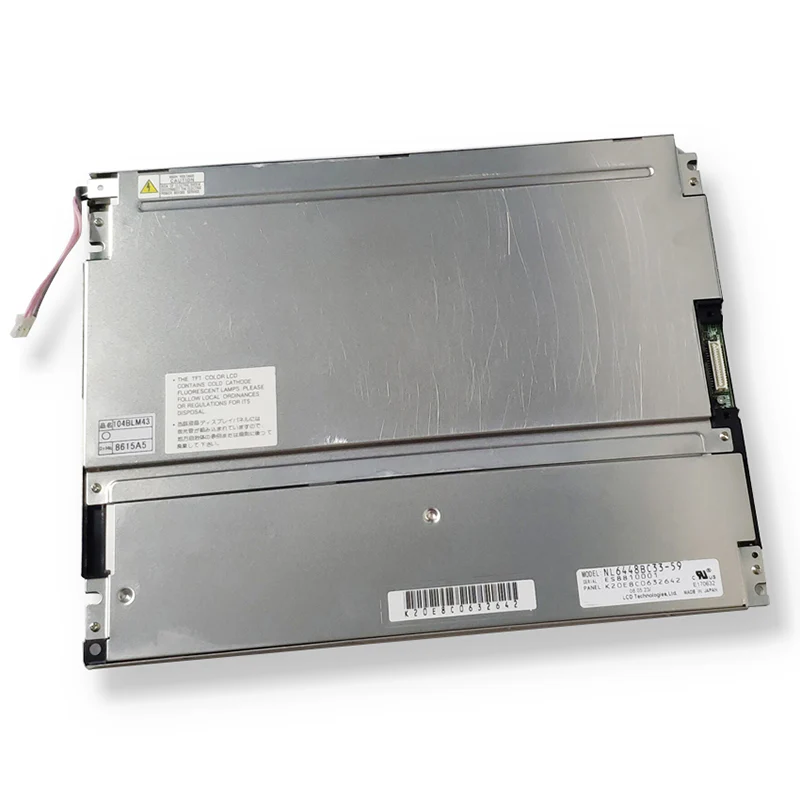

LCD display NL6448BC33-59 10.4 inch 640*480 Industrial screen

LCD display NL6448BC33-59 10.4 inch 640*480 Industrial screen

Price: €89.63

€85.11/ Price

Delivery:

Payment:

Calculate shipping price

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

Mr.

Ms.

1. Quote with shipping freight?

Email : *

YES

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

Specifications Ordering instructions Overview Q&A Reviews

LCD display NL6448BC33-59 10.4 inch 640*480 Industrial screen

Data sheets：

LCD display NL6448BC33-59 10.4 inch 640*480 Industrial screen.pdf

Product Information Product Specifications

Model:

NL6448BC33-59

Brand:

NEC

Application:

Industrial

Size:

10.4"

Resolution:

640(RGB)×480, VGA 76PPI

Brightness:

450 cd/m² (Typ.)

Contrast Ratio:

600:1 (Typ.) (TM)

Viewing Angle:

70/70/45/55 (Typ.)(CR≥10)

Lamp Type:

CCFL [2 pcs] , W/O Driver

Signal Interface:

CMOS (1 ch, 6-bit) , 31 pins Connector

Panel Type:

a-Si TFT-LCD, LCM

Frame Rate:

60Hz

Active Area:

211.2(W)×158.4(H) mm

Outline:

243(H)×185.1(V) ×11(D) mm

Storage Temp:

-20 ~ 80 °C

Operating Temp:

-10 ~ 70 °C

Support Color:

262K 43% NTSC

Ordering instructions

Quality:

test ok before ship it

RMA Policy:

RMA 6 month

Sample:

Paid Sample

Stock:

983

Stock Location:

China

Delivery:

WorldWide

Lead Time:

1-3 Days

Weight:

1.000 KG

Overview

LCD display NL6448BC33-59 10.4 inch 640*480 Industrial screen

The NL6448BC33-59 is a high-performance 10.4-inch industrial LCD display engineered for reliability in demanding environments. Featuring a sharp VGA (640 x 480) resolution, it delivers clear and legible image quality for a wide range of applications. This robust screen is specifically built to withstand the rigors of industrial use, ensuring stable operation in manufacturing, process control, test and measurement equipment, and specialized human-machine interfaces (HMIs).

Its design prioritizes longevity and consistent performance, making it an ideal, dependable component for integrating into medical devices, transportation systems, and other critical industrial machinery where failure is not an option. Choose the NL6448BC33-59 for your most challenging projects that require a durable and trusted display solution.

NL6448BC33-59 is a 10.4" a-Si TFT-LCD, LCM Display screen Product from NEC.According to NEC's product specification sheet,NL6448BC33-59 display has a resolution of 640(RGB)×480, VGA 76PPI, Contrast Ratio is 600:1 (Typ.) (TM),Viewing Angle is 70/70/45/55 (Typ.)(CR≥10),Lamp Type is CCFL [2 pcs] , W/O Driver,Signal Interface is CMOS (1 ch, 6-bit) , 31 pins Connector,Brightness is 450 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of NL6448BC33-59 after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.

Questions & Answers

Ask a Question >

All (5) uncategorised (5) Package (0) Delivery (0) Payment (0) After Sale (0)

If this screen fails, are there replacement or repair options available today?

Yes, but compatibility must be considered. Find New Old Stock: You can look for brand new or refurbished modules from specialized industrial display suppliers. Repair: If the CCFL backlight fails, you can attempt to replace the CCFL tubes or the entire inverter. This requires professional skills and tools. Replacement/Upgrade: A more recommended solution is to look for a "replacement module". Many manufacturers offer new panels with the same mounting size and resolution but featuring modern LED backlights and digital interfaces (like LVDS). When replacing, it is crucial to carefully verify the mechanical dimensions, mounting holes, pinout, and driving method to ensure compatibility.

What are the main applications and key features of this display?

This is a classic industrial-grade screen widely used in: Industrial Automation: PLC HMI, CNC machine panels, industrial consoles. Medical Equipment: Early patient monitors, diagnostic equipment. Test and Measurement Instruments. Professional Equipment: Such as copiers, printing presses. Its key features are ruggedness and high reliability, designed for harsh industrial environments requiring 24/7 operation. However, its resolution and color performance are relatively low by modern standards.

Is the backlight of this screen LED? What is its lifespan?

No, the NL6448BC33-59 uses a CCFL (Cold Cathode Fluorescent Lamp) backlight, not the modern LED backlight. The lifespan of CCFL backlights is limited, typically around 30,000 to 50,000 hours to half-brightness. Since this panel model is quite old, many units still in service may be approaching or have exceeded their rated lifespan, leading to dimming or yellowing. Replacing the CCFL tubes or the entire screen is a common solution.

What interface does this screen use and how do I drive it?

This screen uses an Analog RGB interface. This is an older standard interface, different from modern digital interfaces like LVDS or eDP. To drive it, you need a controller or driver board that can output an analog RGB signal. Many older industrial motherboards or embedded systems (e.g., x86-based boards) featured this output. It is typically connected via a metal pin connector.

What are the basic specifications and who is the manufacturer of the NL6448BC33-59 display?

The NL6448BC33-59 is a 10.4-inch industrial-grade LCD panel manufactured by NEC of Japan. Its key specifications include: Size: 10.4 inches Resolution: 640 x 480 (VGA) Brightness: Approx. 450 cd/m² (Typ.) Contrast Ratio: 600:1 (Typ.)
