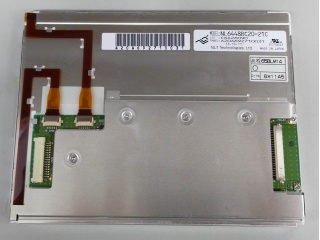

LCD display      NL6448BC20-21C      6.5 inch         640*480      Industrial  screen
LCD display NL6448BC20-21C 6.5 inch 640*480 Industrial screen
Price: $285.00
$280.00/ piece
Add to cart
NL6448BC20-21C
LCD display      NL6448BC20-21C      6.5 inch         640*480      Industrial  screen
NL6448BC20-21C
LCD display      NL6448BC20-21C      6.5 inch         640*480      Industrial  screen

LCD display NL6448BC20-21C 6.5 inch 640*480 Industrial screen

Price: $285.00
$280.00/ Price
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

LCD display NL6448BC20-21C 6.5 inch 640*480 Industrial screen

Product Information Product Specifications
Model:
NL6448BC20-21C
Brand:
NEC
Application:
Industrial
Size:
6.5"
Resolution:
640(RGB)×480, VGA 122PPI
Brightness:
800 cd/m² (Typ.)
Contrast Ratio:
600 : 1 (Typ.) (TM)
Viewing Angle:
80/80/80/60 (Typ.)(CR≥10)
Lamp Type:
6 strings WLED , No Driver
Signal Interface:
LVDS (1 ch, 6/8-bit) , Connector 20 pins
Panel Type:
a-Si TFT-LCD, LCM
Frame Rate:
60Hz
Active Area:
132.48(W)×99.36(H) mm
Outline:
153(W)×118(H) ×9.5(D) mm
Storage Temp:
-30 ~ 80 °C
Operating Temp:
-20 ~ 70 °C
Support Color:
262K/16.7M 36% NTSC
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
96
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
0.500 KG
Overview

LCD display      NL6448BC20-21C      6.5 inch         640*480      Industrial  screen

The NL6448BC20-21C is a robust 6.5-inch industrial LCD display engineered for demanding applications where reliability and visual clarity are essential. Featuring a 640×480 VGA resolution with a standard 4:3 aspect ratio, this display delivers sharp and well-defined graphics, making it ideal for displaying critical data, control interfaces, and diagnostic information in industrial environments. Built to withstand challenging conditions, it offers excellent performance across wide temperature ranges and demonstrates strong resistance to vibration, shock, and electrical interference. The display incorporates industrial-grade components and an advanced LED backlight system that ensures consistent brightness and long-term reliability. The module's compact yet durable construction provides an ideal balance of screen size, image quality, and environmental durability, making it perfectly suited for factory automation, process control systems, human-machine interfaces, and medical equipment where dependable performance under tough conditions is essential. With its wide operating temperature range and robust electrical characteristics, this display provides a reliable visual solution for industrial applications demanding uncompromising quality and continuous operation, while maintaining excellent readability in various lighting conditions.

NL6448BC20-21C is a 6.5" a-Si TFT-LCD, LCM Display screen Product from NEC.According to NEC's product specification sheet,NL6448BC20-21C display has a resolution of 640(RGB)×480, VGA 122PPI, Contrast Ratio is 600 : 1 (Typ.) (TM),Viewing Angle is 80/80/80/60 (Typ.)(CR≥10),Lamp Type is 6 strings WLED , No Driver,Signal Interface is LVDS (1 ch, 6/8-bit) , Connector 20 pins,Brightness is 800 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of NL6448BC20-21C after packaging is 0.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
