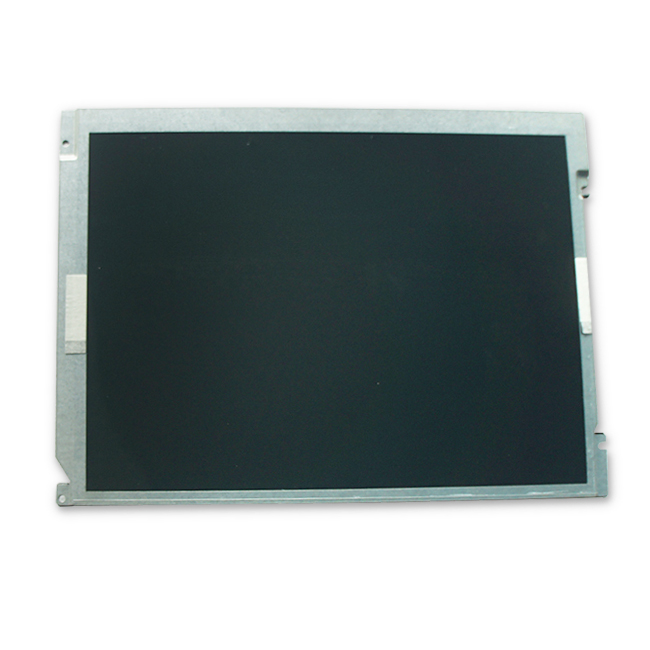

Sharp LQ121S1LG86 12.1" 800x600 High Brightness LCD
Sharp LQ121S1LG86 12.1" 800x600 High Brightness LCD
Price: $85.00
$80.00/ piece
Add to cart
Sharp LQ121S1LG86 12.1" 800x600 High Brightness LCD
Sharp LQ121S1LG86 12.1 inch 800x600 SVGA outdoor high brightness LCD panel
Sharp LQ121S1LG86 12.1 inch 800x600 SVGA outdoor high brightness LCD panel

Sharp LQ121S1LG86 12.1" 800x600 High Brightness LCD

Price: $85.00
$80.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

Sharp LQ121S1LG86 12.1" 800x600 High Brightness LCD

Product Information Product Specifications
Model:
LQ121S1LG86
Brand:
SHARP
Application:
Outdoor High Brightness
Size:
12.1"
Resolution:
800(RGB)×600, SVGA 82PPI
Brightness:
1500 cd/m² (Typ.)
Contrast Ratio:
800:1 (Typ.) (TM)
Viewing Angle:
80/80/80/60 (Typ.)(CR≥10)
Lamp Type:
WLED , 50K hours , With LED Driver
Signal Interface:
LVDS (1 ch, 6-bit) , 20 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
99
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.500 KG
Overview

The Sharp LQ121S1LG86 is a rugged, outdoor-grade 12.1-inch TFT-LCD display module specifically engineered for extreme ambient light conditions. Featuring a classic 800x600 (SVGA) resolution and an ultra-high brightness backlight (typically 800+ nits), this 12.1" screen delivers exceptional sunlight readability. The LQ121S1LG86 high brightness replacement panel is the ultimate solution for outdoor HMI control panels, marine navigation systems, and heavy machinery dashboards where standard screens wash out in the sun. ZYLCDShop supplies 100% original Sharp industrial modules, rigorously tested for high-lumen output and wide-temperature durability.

Key Features of the 12.1" Outdoor High Brightness LCD

  • Extreme Sunlight Readability: Equipped with a high-power LED backlight system (1500cd/m² or higher), ensuring crisp visibility even under direct, midday sunlight.

  • Classic SVGA Resolution: Native 800(RGB)×600 pixels in a 4:3 aspect ratio, providing excellent compatibility with legacy industrial control systems and PLC interfaces.

  • Wide Operating Temperature: Industrial-grade liquid crystal fluid and components allow stable operation in freezing winters and scorching summer heat (typically -20°C to 70°C).

  • Anti-Glare & High Contrast: Special surface treatments minimize harsh reflections, while the high contrast ratio maintains deep blacks and vibrant colors outdoors.

  • Robust Vibration Resistance: Built to withstand the constant shaking and impacts of heavy agricultural machinery, mining equipment, and marine vessels.

  • Reliable LVDS Interface: Standard LVDS signal connection ensures stable, high-speed data transmission without signal degradation in harsh electrical environments.

Technical Specifications

ParameterDetails
ManufacturerSharp
Model NumberLQ121S1LG86
Screen Size12.1 Inch Diagonal
Resolution800(RGB)×600, SVGA
Brightness (Luminance)1500 cd/m² (Typ. High Brightness / Sunlight Readable)
Active Area245.76(W) × 184.32(H) mm
Outline Dimensions278.0(W) × 209.0(H) × 13.5(D) mm (Typical)
Signal InterfaceLVDS (1 ch, 6-bit) , 20 pins Connector
Contrast Ratio800:1 (Typ.)
Color Support262K / 16.7M
Viewing Angle80/80/80/80 (Typ. CR>10, Wide View)
BacklightHigh-Power WLED (White LED)
Operating Temp.-20 ~ 70 °C (Wide Temperature)

Applications for the 12.1-Inch Sunlight Readable Module

Because standard 300-nit screens become completely unreadable outdoors, the LQ121S1LG86 is the mandatory choice for mission-critical outdoor equipment:

  • Marine & Maritime: Chartplotters, radar displays, and deck control panels exposed to direct ocean sun and salt spray.

  • Agricultural Machinery: GPS guidance systems and tractor dashboard displays used in open fields during peak daylight hours.

  • Mining & Construction: Heavy equipment dashboards, crane controls, and drilling rig monitors operating in harsh, bright environments.

  • Outdoor HMI & Kiosks: EV charging stations, outdoor ticketing machines, and smart city control panels.

  • Military & Defense: Tactical vehicle displays and field-deployable command terminals requiring extreme ruggedness and visibility.

Why Source High-Brightness Industrial LCDs from ZYLCDShop?

At ZYLCDShop, we understand that an unreadable screen in the field can lead to operational failure. We specialize in sourcing hard-to-find, high-nit outdoor displays.

  • 100% Original Sharp Guarantee: We supply authentic, brand-new LQ121S1LG86 panels. No refurbished screens with degraded backlights that fail in the sun.

  • Luminance (Nit) Testing: Every high-brightness panel is tested with a lux meter to guarantee it meets the strict 800+ nits outdoor visibility standard before shipping.

  • Heavy-Duty Industrial Packaging: We use custom anti-static ESD bags, thick shock-proof foam, and reinforced cartons to protect your valuable outdoor displays during global transit.

  • Global B2B Logistics: Fast DHL/FedEx/UPS shipping to equipment manufacturers, marine outfitters, and repair facilities worldwide.

  • Long-Term Supply Support: We offer buffer stock agreements for OEMs to ensure your production line never stops due to display shortages.

Frequently Asked Questions (FAQ)

What makes the LQ121S1LG86 "sunlight readable" compared to standard screens?

A standard indoor industrial screen typically has a brightness of 300 to 400 nits, which washes out completely in direct sunlight. The LQ121S1LG86 features a specialized high-power LED backlight array that pushes the brightness to 800 nits or higher. This overpowers the ambient sunlight, allowing operators to read data and view graphics clearly outdoors.

Does high brightness mean the screen will overheat in the summer sun?

The LQ121S1LG86 is designed with industrial-grade thermal management and wide-temperature liquid crystal fluid. It is rated to operate reliably in ambient temperatures up to 70°C (158°F), making it highly resistant to the "blackout" effect that standard screens suffer from when exposed to intense solar heating.

Is this 12.1" 800x600 screen compatible with my old 4:3 monitor?

Yes, the 800x600 SVGA resolution maintains the classic 4:3 aspect ratio, making it a perfect physical and electronic drop-in replacement for older legacy HMI panels and CRT monitor upgrades. Please verify the 20-pin LVDS connector pinout to ensure compatibility with your driver board.

Can I add a touch screen to this outdoor high brightness panel?

The LQ121S1LG86 is sold as an LCD module only (without touch). However, its high luminance is perfect for optical bonding with a ruggedized resistive or PCAP (Projected Capacitive) touch glass. If you need assistance sourcing compatible touch digitizers or optical bonding services, please contact our engineering team.

Do you offer bulk pricing for outdoor equipment manufacturers?

Absolutely. ZYLCDShop provides tiered B2B pricing for OEMs building marine, agricultural, or construction equipment. Contact us for a customized wholesale quote and long-term supply contract for the LQ121S1LG86.

Need a Screen That Survives the Sun?

Stop squinting at washed-out displays. Secure your supply of original Sharp LQ121S1LG86 12.1-inch 800-nit outdoor high brightness LCD panels. Contact our technical sales team for stock availability and OEM quotes!

Request High-Brightness Quote

Email: sales@zylcdshop.com
