LCD display KCB104VG2CG-G20 10.4 inth 640*480 Industrial screen

When purchasing, it is recommended to pay attention to the following: Condition and Testing: As industrial screens are often sold as stock or used parts after production ceases, choose sellers who promise "testing before shipping" to ensure no dead pixels or scratches . Interface Pinout: Even for the same model, the pinout definition on the interface connector may vary slightly between batches (e.g., G20 version). It is best to confirm that the cable connector model and pin sequence match your original screen. Backlight Type and Lifespan: Confirm whether it is an LED backlight or an older CCFL backlight. LED backlights have a longer lifespan and lower power consumption. Negotiable Price: Industrial screen prices fluctuate and are often flexible based on order quantity. You can contact the supplier to negotiate the price

In such cases, the repair value is usually low. Bright/Dark Lines: If there are one or more lines running across the screen, it is typically due to damage to the internal COF (Chip on Film) connection or leakage within the LCD panel itself. In industrial maintenance, this is often considered irreparable because fixing it requires professional hot-bar soldering equipment, and the reliability post-repair is poor. Replacing the screen with a new one is more economical and reliable . Color Spots/Bias: Localized spots may be caused by pressure or a deformed backlight light guide plate. Full-screen color bias might be due to a faulty RGB circuit on the driver board or poor pin contact in the cable

If the backlight is on (the screen is lit but blank) or the display is garbled, it is usually not a problem with the lamp or backlight circuit, but rather a signal transmission issue. Please troubleshoot in the following order: LVDS Cable: Check if the cable connecting the screen to the driver board is loose or has poor contact due to vibration. Try reconnecting and securing it . Driver Board or Screen Parameters: The driver board may be faulty, or the screen parameters (resolution, clock) programmed into it may not match the KCB104VG2CG-G20, causing failure to drive the panel . Motherboard Signal Source: Verify that the industrial host computer is starting up correctly and outputting a signal. Physical Damage: Check the edges of the screen for cracks. If the TFT array inside the panel is damaged, it is usually irreparable and requires replacement

The KCB104VG2CG-G20 typically uses an LVDS (Low-Voltage Differential Signaling) interface, which is a very common standard in the industrial field. Although there are industrial driver boards with VGA, DVI, or HDMI ports available on the market, the screen itself is LVDS. It is not recommended to replace it with a standard monitor. The reasons are: Interface Mismatch: Standard monitors usually have built-in HDMI or VGA interfaces and cannot connect directly to an industrial motherboard. Environmental Adaptability: Standard monitors cannot operate stably for long periods in harsh industrial environments with dust, high temperatures, or strong vibrations . Mounting Dimensions: Industrial equipment is typically designed for embedded and open-frame installation, whereas standard monitors have casings that are not compatible

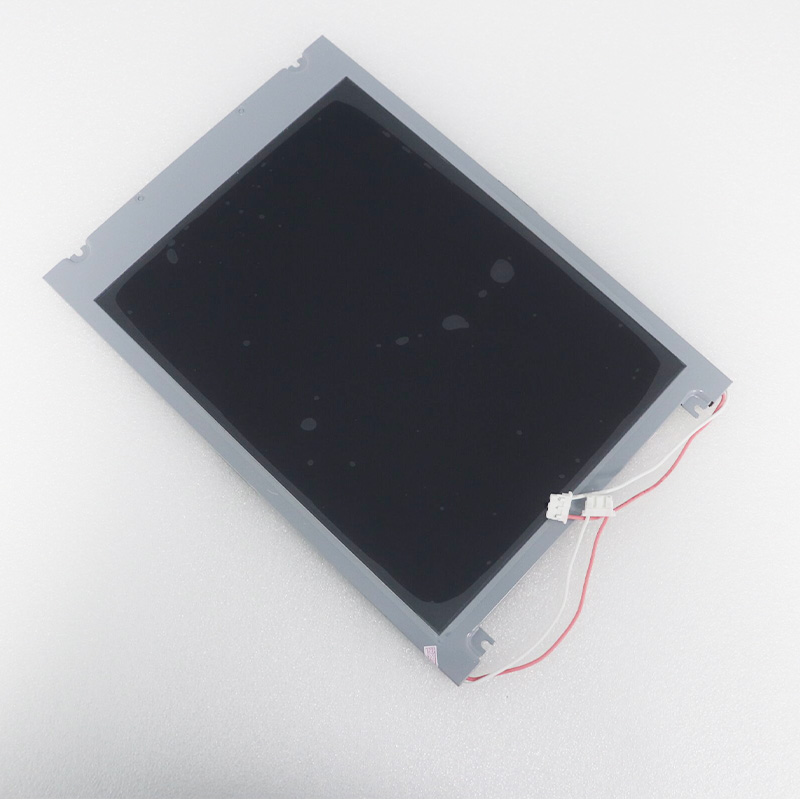

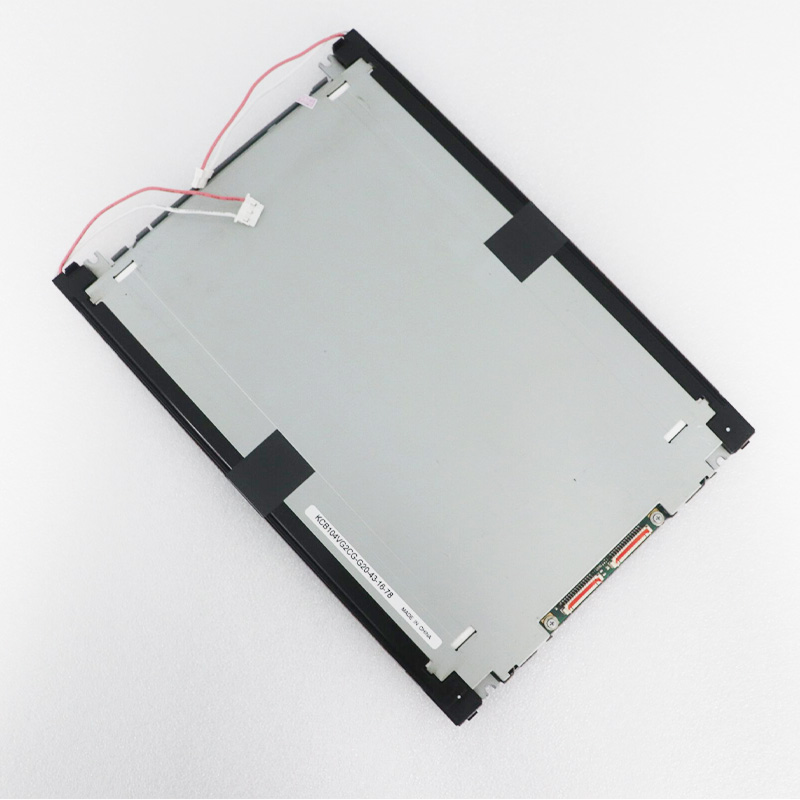

The KCB104VG2CG-G20 is a 10.4-inch industrial TFT-LCD display. Its standard resolution is 640*480 pixels, which is also known as VGA resolution. With a classic 4:3 aspect ratio, it is very suitable for industrial control, security monitoring, and medical equipment that require stability over high resolution. Additionally, this type of industrial screen typically features high brightness, a wide operating temperature range (some versions support from -30°C to 80°C), and a long-life backlight, making it ideal for 24/7 continuous operation
