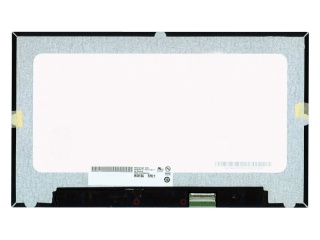

LCD display     B140HAK03.1     14.0 inth    1920*1080      Laptop screen
LCD display B140HAK03.1 14.0 inth 1920*1080 Laptop screen
Price: $90.00
$85.00/ piece
Add to cart
B140HAK03.1
B140HAK03.1

LCD display B140HAK03.1 14.0 inth 1920*1080 Laptop screen

Price: $90.00
$85.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

LCD display B140HAK03.1 14.0 inth 1920*1080 Laptop screen

Product Information Product Specifications
Model:
B140HAK03.1
Brand:
AUO
Application:
Tablet
Size:
14"
Resolution:
1920(RGB)×1080, FHD 157PPI
Brightness:
220 cd/m² (Typ.)
Contrast Ratio:
700:1 (Typ.) (TM)
Viewing Angle:
85/85/85/85 (Typ.)(CR≥10)
Lamp Type:
WLED , 15K hours , With LED Driver
Signal Interface:
eDP (2 Lanes) , eDP1.2 , 40 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
100
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
2.500 KG
Overview

Product Introduction

AUO B140HAK03.1 is a 14.0-inch a-Si TFT-LCD LCM designed for laptop displays. It delivers a 1920 × 1080 FHD resolution at 157 PPI, with a 60 Hz refresh rate and 16.2M color depth. The transmissive, normally black AHVA panel offers 220-nit brightness, wide 85/85/85/85 viewing angles, and an eDP 1.2 two-lane interface. With a 315.87 × 186.08 mm outline, 2.7 W power consumption, and a 15,000-hour minimum backlight lifetime, it is suitable for professional notebook and laptop display integrations.

Key Features

  • 0-inch a-Si TFT-LCD LCM with 1920 × 1080 FHD resolution

  • 157 PPI pixel density with 0.161 × 0.161 mm pixel pitch

  • 220-nit brightness and 700:1 typical transmissive contrast ratio

  • AHVA normally black display mode with 85/85/85/85 typical viewing angles

  • 60 Hz refresh rate with 25 ms typical response time

  • 2M color depth using 6-bit plus FRC

  • eDP 1.2 interface with two lanes

  • Low 2.7 W power consumption

  • 15,000-hour minimum backlight lifetime

  • Operating temperature range of 0 to 50 °C

  • Storage temperature range of -20 to 60 °C

Technical Specifications

Panel ModelB140HAK03.1
Panel Typea-Si TFT-LCD, LCM
Display Size14
Resolution1920(RGB)×1080 [FHD] [157PPI]
Pixel Pitch0.161×0.161
Application FieldLaptop
Operating Temperature0 ~ 50 °C
Storage Temperature-20 ~ 60 °C
Brightness220
Contrast Ratio700 : 1 (Typ.) (Transmissive)
Response Time25 (Typ.)(Tr+Td) ms
Viewing Angle85/85/85/85 (Typ.)(CR≥10)
Color Depth16.2M (6-bit + FRC)
Color Temperature6485K
Display ModeAHVA, Normally Black, Transmissive
Refresh Rate60Hz
sRGB Coverage62% coverage (CIE 1931)
Outline Dimension315.87(H)×186.08(V)
Active Area309.14(H)×173.89(V)
Weight320g (Max.)
Voltage5.0/12.0/21.0V (Min./Typ./Max.)
Power Consumption2.7W
Backlight Lifetime15K (Min.) hrs
InterfaceeDP (2 Lanes), eDP1.2

Applications

  • Laptop and notebook computer displays

  • Business notebook display assemblies

  • Professional mobile computing systems

  • Portable workstation screens

  • Compact notebook display integrations requiring FHD resolution

Frequently Asked Questions

Q1: What display resolution and size does the AUO B140HAK03.1 provide?

A: The B140HAK03.1 is a 14.0-inch panel with a 1920 × 1080 FHD resolution and 157 PPI pixel density.

Q2: What panel technology is used in the B140HAK03.1?

A: It uses a-Si TFT-LCD technology in an LCM configuration, with an AHVA, normally black, transmissive display mode.

Q3: Which interface does the B140HAK03.1 support?

A: The panel supports an eDP 1.2 interface with two lanes.

Q4: What are the brightness and contrast specifications?

A: The display provides 220-nit brightness and a typical transmissive contrast ratio of 700:1.

Q5: What is the backlight lifetime of the B140HAK03.1?

A: The specified backlight lifetime is 15,000 hours minimum.

Q6: What are the panel dimensions and active display area?

A: The outline dimensions are 315.87 mm high by 186.08 mm wide, and the active area measures 309.14 mm by 173.89 mm.

Q7: What operating and storage temperature ranges are supported?

A: The operating temperature range is 0 to 50 °C, while the storage temperature range is -20 to 60 °C.

Q8: How much power does the panel consume?

A: The specified power consumption is 2.7 W.

B140HAK03.1 is a 14" a-Si TFT-LCD, LCM Display screen Product from AUO.According to AUO's product specification sheet,B140HAK03.1 display has a resolution of 1920(RGB)×1080, FHD 157PPI, Contrast Ratio is 700:1 (Typ.) (TM),Viewing Angle is 85/85/85/85 (Typ.)(CR≥10),Lamp Type is WLED , 15K hours , With LED Driver,Signal Interface is eDP (2 Lanes) , eDP1.2 , 40 pins Connector,Brightness is 220 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Tablet and other products.The weight of B140HAK03.1 after packaging is 2.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
