AUO AA065VD11 6.5" 640x480 High Brightness LCD
AUO AA065VD11 6.5" 640x480 High Brightness LCD
Price: $190.00
$186.00/ piece
Add to cart
AUO AA065VD11 6.5" 640x480 High Brightness LCD
AA065VD11

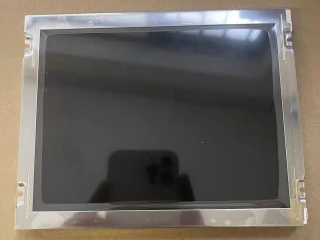

AA065VD11
AA065VD11
AA065VD11

AUO AA065VD11 6.5" 640x480 High Brightness LCD

Price: $190.00
$186.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

AUO AA065VD11 6.5" 640x480 High Brightness LCD

Product Information Product Specifications
Model:
AA065VD11
Brand:
Mitsubishi
Application:
Outdoor High Brightness
Size:
6.5"
Resolution:
640(RGB)×480, VGA 122PPI
Brightness:
1300 cd/m² (Typ.)
Contrast Ratio:
600 : 1 (Typ.) (TM)
Viewing Angle:
80/80/80/60 (Typ.)(CR≥10)
Lamp Type:
2 strings WLED , 100K hours , No Driver
Signal Interface:
CMOS (1 ch, 6-bit) , 31 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Frame Rate:
60Hz
Active Area:
132.48(W)×99.36(H) mm
Outline:
154 × 121 × 11.5 (H×V×D)
Storage Temp:
-30 ~ 80 °C
Operating Temp:
-30 ~ 80 °C
Support Color:
262K 40% NTSC
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
39
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

The AUO AA065VD11 is a rugged, outdoor-grade 6.5-inch TFT-LCD display module specifically engineered for extreme sunlight and harsh environments. Featuring a classic 640x480 (VGA) resolution and an ultra-high brightness backlight (typically 1000 nits), this 6.5" screen delivers exceptional sunlight readability. The AA065VD11 high brightness replacement panel is the ultimate solution for marine chartplotters, agricultural machinery dashboards, and outdoor mining equipment where standard screens wash out or black out under solar heating. ZYLCDShop supplies 100% original AUO industrial modules, rigorously tested for high-lumen output and wide-temperature durability.

Key Features of the 6.5" Outdoor High Brightness LCD

  • Extreme Sunlight Readability (1000 Nits): Equipped with a high-power LED backlight system that pushes luminance to 1000 cd/m², overpowering direct midday sunlight for crisp visibility.

  • Anti-Blackout Thermal Management: Utilizes specialized wide-temperature liquid crystal fluid and thermal dissipation designs to prevent the "blackout" effect caused by intense solar heating in outdoor enclosures.

  • UV-Resistant Polarizer: Features an advanced anti-UV polarizer film that prevents the screen from yellowing or degrading after years of direct ultraviolet exposure.

  • Classic VGA Resolution: Native 640(RGB)×480 pixels in a 4:3 aspect ratio, providing excellent compatibility with legacy industrial control systems, GPS modules, and marine instruments.

  • Ultra-Wide Operating Temperature: Industrial-grade components allow stable operation in freezing winters and scorching summer heat (typically -30°C to 80°C).

  • Robust Vibration Resistance: Built to withstand the constant shaking and impacts of heavy agricultural machinery, tractors, and marine vessels.

Technical Specifications

ParameterDetails
ManufacturerAUO (AU Optronics)
Model NumberAA065VD11
Screen Size6.5 Inch Diagonal
Resolution640(RGB)×480, VGA
Brightness (Luminance)1300 cd/m² (Typ. Ultra-High Brightness)
Active Area132.48(W) × 99.36(H) mm
Outline Dimensions154 × 121 × 11.5 (H×V×D)
Signal InterfaceLVDS / RGB TTL (Check specific pinout)
Contrast Ratio600:1 (Typ.)
Viewing Angle85/85/85/85 (Typ. CR>10, Wide View)
BacklightHigh-Power WLED (White LED)
Operating Temp.-30 ~ 80 °C (Extreme Wide Temperature)
Surface TreatmentAnti-Glare, Anti-UV, Hard Coating

Applications for the 6.5-Inch Sunlight Readable Module

Because standard 300-nit screens become completely unreadable or fail outdoors, the AA065VD11 is the mandatory choice for mission-critical outdoor equipment:

  • Marine & Maritime: Chartplotters, fishfinders, radar displays, and deck control panels exposed to direct ocean sun and salt spray.

  • Agricultural Machinery: GPS guidance systems, tractor dashboard displays, and harvester controls used in open fields during peak daylight hours.

  • Mining & Construction: Heavy equipment dashboards, excavator controls, and drilling rig monitors operating in harsh, bright environments.

  • Military & Defense: Tactical vehicle displays, handheld field terminals, and ruggedized communication devices.

  • Outdoor HMI & Kiosks: EV charging stations, outdoor ticketing machines, and smart city control panels.

Why Source High-Brightness Industrial LCDs from ZYLCDShop?

At ZYLCDShop, we understand that an unreadable screen in the field can lead to operational failure or safety hazards. We specialize in sourcing hard-to-find, high-nit outdoor displays.

  • 100% Original AUO Guarantee: We supply authentic, brand-new AA065VD11 panels. No refurbished screens with degraded backlights that fail in the sun.

  • Luminance (Nit) Testing: Every high-brightness panel is tested with a calibrated lux meter to guarantee it meets the strict 1000 nits outdoor visibility standard before shipping.

  • Heavy-Duty Industrial Packaging: We use custom anti-static ESD bags, thick shock-proof foam, and reinforced cartons to protect your valuable outdoor displays during global transit.

  • Global B2B Logistics: Fast DHL/FedEx/UPS shipping to equipment manufacturers, marine outfitters, and repair facilities worldwide.

  • Long-Term Supply Support: We offer buffer stock agreements for OEMs to ensure your production line never stops due to display shortages.

Frequently Asked Questions (FAQ)

What makes the AA065VD11 "sunlight readable" compared to standard screens?

A standard indoor industrial screen typically has a brightness of 300 to 400 nits, which washes out completely in direct sunlight. The AA065VD11 features a specialized high-power LED backlight array that pushes the brightness to 1000 nits. This overpowers the ambient sunlight, allowing operators to read data and view graphics clearly outdoors.

Will this screen suffer from "blackout" when exposed to direct summer sun?

No. Standard LCDs suffer from "blackout" (isotropic failure) when the liquid crystal fluid exceeds its clearing point temperature under solar heating. The AA065VD11 uses specialized wide-temperature liquid crystal fluid and enhanced thermal management, allowing it to operate reliably in ambient temperatures up to 80°C without blacking out.

Does the screen have UV protection for long-term outdoor use?

Yes. Prolonged exposure to ultraviolet light can cause standard polarizers to yellow and degrade. The AA065VD11 features an anti-UV polarizer and hard coating, ensuring long-term optical clarity and preventing discoloration in marine and agricultural applications.

Is this 6.5" 640x480 screen compatible with my old 4:3 monitor?

Yes, the 640x480 VGA resolution maintains the classic 4:3 aspect ratio, making it a perfect physical and electronic drop-in replacement for older legacy HMI panels and CRT monitor upgrades. Please verify the interface pinout (LVDS/RGB) to ensure compatibility with your driver board.

Can I add a touch screen to this outdoor high brightness panel?

The AA065VD11 is sold as an LCD module only (without touch). However, its high luminance is perfect for optical bonding with a ruggedized resistive or PCAP (Projected Capacitive) touch glass to eliminate internal reflections. If you need assistance sourcing compatible touch digitizers or optical bonding services, please contact our engineering team.

Need a Screen That Survives the Sun?

Stop squinting at washed-out displays. Secure your supply of original AUO AA065VD11 6.5-inch 1000-nit outdoor high brightness LCD panels. Contact our technical sales team for stock availability and OEM quotes!

Request High-Brightness Quote

Email: sales@zylcdshop.com | WhatsApp: [Your Number]

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
AUO AA065VD11 6.5" 640x480 High Brightness LCD

AUO AA065VD11 6.5" 640x480 High Brightness LCD

AA065VD11

6.5"
640(RGB)×480, VGA 122PPI
1300 cd/m² (Typ.)
600 : 1 (Typ.) (TM)
80/80/80/60 (Typ.)(CR≥10)
2 strings WLED , 100K hours , No Driver
CMOS (1 ch, 6-bit) , 31 pins Connector
a-Si TFT-LCD, LCM
AA104SH02--T1 Mitsubishi 10.4" a-Si TFT-LCD  LCM 800(RGB)×600  SVGA  96PPI

AA104SH02--T1 Mitsubishi 10.4" a-Si TFT-LCD LCM 800(RGB)×600 SVGA 96PPI

AA104SH02--T1

10.4"
800(RGB)×600, SVGA 96PPI
560 cd/m² (Typ.)
660:1 (Typ.) (TM)
80/80/80/60(Typ.)(CR≥10)
WLED [2 strings], 60K hours, W/O Driver
LVDS(1ch,6/8-bit),20pinsConnector
a-Si TFT-LCD, LCM
AA104SL02-CE1 Mitsubishi 10.4"a-Si TFT-LCD LCM 800(RGB)×600  SVGA  96PPI

AA104SL02-CE1 Mitsubishi 10.4"a-Si TFT-LCD LCM 800(RGB)×600 SVGA 96PPI

AA104SL02-CE1

10.4"
800(RGB)×600, SVGA 96PPI
700 (Typ.)(cd/m²)
700 : 1 (Typ.) (TM)
GoodViewat
2 strings WLED , 100K hours , No Driver
LVDS(1ch,6/8-bit),20pinsConnector
a-Si TFT-LCD, LCM
AA104SH01 screen 800*600 lcd module 10.4 inch tft lcd screen

AA104SH01 screen 800*600 lcd module 10.4 inch tft lcd screen

AA104SH01

10.4"
800(RGB)×600, SVGA 96PPI
700 cd/m² (Typ.)
700 : 1 (Typ.) (TM)
80/80/80/80 (Typ.)(CR≥10
2 strings WLED , 60K hours , No Driver
LVDS (1 ch, 6/8-bit) , 20 pins Connector
a-Si TFT-LCD, LCM
