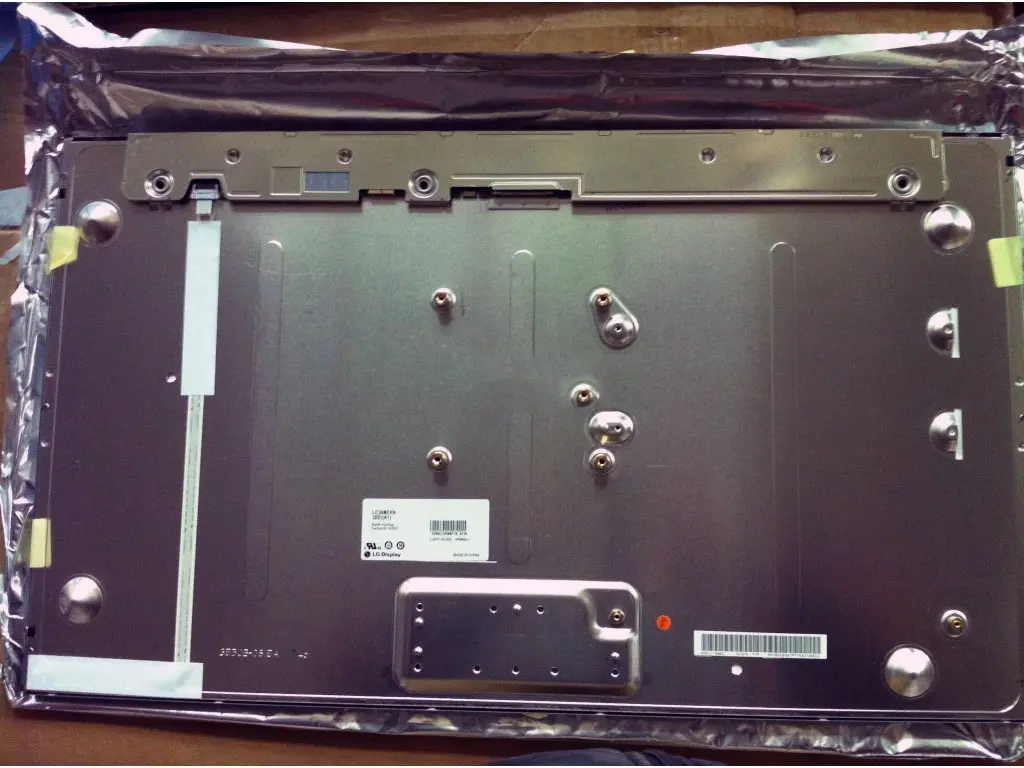

LC260EXN-SDA1 LG Display 26"1366*768 lcd display module
LC260EXN-SDA1 LG Display 26"1366*768 lcd display module
The LC260EXN-SDA1 is a professional-grade 26-inch TFT-LCD module manufactured by LG Display. Featuring a native 1366 × 768 (HD) resolution, this panel is engineered for commercial-grade applications, including digital signage, hospitality displays, and public information kiosks. It is built on LG's world-renowned IPS (In-Plane Switching) technology, ensuring that visual content remains vibrant and accurate from any perspective.
Premium IPS Wide Viewing: Utilizes advanced IPS technology to provide an ultra-wide 89/89/89/89 (Min.)(CR≥10) viewing angle. This ensures zero color shift and consistent image quality, making it ideal for displays positioned in high-traffic public areas.
High-Luminance Performance: Delivers a brightness of 350 cd/m², providing excellent visibility and punchy visuals even in environments with strong indoor ambient lighting.
Exceptional Contrast Ratio: Boasts a typical 1000:1 contrast ratio, offering deep blacks and a wide dynamic range that enhances the clarity of both text and high-definition video.
Professional Color Depth: Supports 16.7 million colors (8-bit), ensuring smooth gradients and life-like color reproduction for professional branding and advertisement content.
Efficient WLED Backlight: Equipped with a high-efficiency WLED backlight system designed for long-term reliability and lower power consumption, contributing to a thinner and lighter overall module design.
Standard LVDS Interface: Features a 1-port LVDS interface (30-pin), ensuring high-speed data transmission and broad compatibility with industrial and commercial AD (Analog-to-Digital) driver boards.
Durable Surface Treatment: The screen surface is finished with an Anti-glare (AG) and Hard Coating (3H) to minimize distracting reflections and provide essential protection against surface wear.
| Category | Specification Details |
| Manufacturer | LG Display |
| Model Name | LC260EXN-SDA1 |
| Screen Size | 26.0 inch |
| Resolution | 1366 × 768 (WXGA) |
| Aspect Ratio | 16:9 |
| Display Mode | S-IPS, Normally Black, Transmissive |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Interface Type | LVDS (1 ch, 8-bit), 30 pins Connector |
| Backlight Type | WLED (Integrated Driver) |
| Operating Temp. | 0 ~ 50 °C |
| Surface Treatment | Antiglare (Haze 10%), Hard coating (3H) |
Digital signage and commercial advertisements
Industrial monitoring and control workstations
Public information display (PID) kiosks
Medical imaging secondary monitors
Transportation scheduling and status boards
FAQ:
What is the resolution of this 26-inch screen? Does it support HD display?
This module features a $1366 \times 768$ (WXGA) resolution, which is standard HD. As an industrial/commercial grade panel from LG, it offers high color accuracy and wide viewing angles, making it ideal for commercial displays and monitoring terminals.
Are you supplying genuine LG original products? Are they brand new or refurbished?
We guarantee that we supply 100% brand new and genuine LG Display products in original packaging, with no refurbished or pulled units.
How long does it usually take to ship after placing an order? Do you support international express?
This model is currently in stock. We typically arrange shipment within 2-3 working days after receiving payment. We support shipping via major global couriers such as DHL, FedEx, and UPS.
