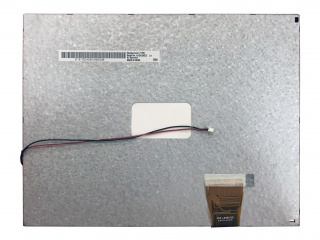

KCS6448HSTT-X21       10.4"      tft     display     for       Kyocera
KCS6448HSTT-X21 10.4" tft display for Kyocera
Price: $358.00
$350.00/ piece
Add to cart
KCS6448HSTT-X21       10.4"      tft     display     for       Kyocera
KCS6448HSTT-X21  10.4
KCS6448HSTT-X21  10.4

KCS6448HSTT-X21 10.4" tft display for Kyocera

Price: $358.00
$350.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

KCS6448HSTT-X21 10.4" tft display for Kyocera

Product Information Product Specifications
Model:
KCS6448HSTT-X21
Brand:
KYOCERA
Application:
Industrial
Size:
10.4"
Resolution:
640(RGB)×480, VGA 76PPI
Brightness:
150 cd/m² (Typ.)
Contrast Ratio:
25:1 (Typ.) (TM)
Viewing Angle:
50/50/50/35 (Typ.)(CR≥2)
Lamp Type:
2 pcs CCFL , 10K hours , Without Driver
Signal Interface:
Parallel Data (1ch, 8-bit) , 29 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
115
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

Product Introduction

The Kyocera KCS6448HSTT-X21 is a 10.4-inch CSTN-LCD module designed for reliable performance in demanding industrial environments. Engineered by Kyocera, this panel delivers a VGA resolution of 640(RGB)×480 with a pixel pitch of 0.110×0.330 mm, making it well-suited for legacy industrial systems that require proven display technology. With an operating temperature range of 0 ~ 50 °C and a storage temperature range of -20 ~ 60 °C, the KCS6448HSTT-X21 ensures stable operation across varied industrial conditions. The module features a normally black, transmissive STN display mode, a brightness level of 150 cd/m², a contrast ratio of 25:1, and a refresh rate of 75Hz. Its parallel data (1ch, 8-bit) interface simplifies integration into existing industrial control architectures, while the CCFL backlight, rated for 10K hours of typical lifetime, supports long-term deployment in industrial applications.

Key Features

  • 4-inch CSTN-LCD panel manufactured by Kyocera

  • VGA resolution of 640(RGB)×480 for clear industrial display output

  • Operating temperature range of 0 ~ 50 °C suitable for industrial environments

  • Storage temperature range of -20 ~ 60 °C for reliable non-operational durability

  • STN, normally black, transmissive display mode with 75Hz refresh rate

  • Parallel Data (1ch, 8-bit) interface for straightforward system integration

  • CCFL backlight with typical lifetime of 10,000 hours

  • Brightness of 150 cd/m² and contrast ratio of 25:1 (Typ.)

  • Viewing angles of 50/50/50/35 (Typ.)(CR≥2)

  • Active area of 211.2×158.4 mm within an outline dimension of 253.2×187.4 mm

  • Typical power consumption of 344mW and maximum of 534mW

  • Industrial-grade panel weight of 580g (Typ.)

Technical Specifications

Panel ModelKCS6448HSTT-X21
Panel TypeCSTN-LCD, LCM
Display Size10.4
Resolution640(RGB)×480, VGA
Pixel Pitch0.110×0.330 mm (H×V)
Application FieldIndustrial
Operating Temperature0 ~ 50 °C
Storage Temperature-20 ~ 60 °C
Brightness150
Contrast Ratio25:1 (Typ.) (Transmissive)
Response Time160/80 (Typ.)(Tr/Td) ms
Viewing Angle50/50/50/35 (Typ.)(CR≥2)
Color DepthColor
Color Temperature6638K
Display ModeSTN, Normally Black, Transmissive
Refresh Rate75Hz
sRGB Coverage59% coverage (CIE 1931)
Outline Dimension253.2×187.4 mm (H×V)
Active Area211.2×158.4 mm (H×V)
Weight580g (Typ.)
Voltage520V (Typ.)
Power Consumption344/534mW (Typ./Max.)
Backlight TypeCCFL
Backlight Lifetime10K (Typ.) hrs
InterfaceParallel Data (1ch, 8-bit) Logic Voltage -

Applications

  • Industrial control systems and HMI panels

  • Factory automation equipment

  • Legacy industrial monitoring and instrumentation

  • Process control displays

  • Medical and laboratory instruments requiring proven CSTN technology

  • Test and measurement equipment

  • Industrial-grade embedded systems

Frequently Asked Questions

A: The KCS6448HSTT-X21 uses CSTN-LCD (Color STN-LCD) panel technology with a normally black, transmissive display mode.

Q1: What is the display technology used in the Kyocera KCS6448HSTT-X21?

A: The panel features a 10.4-inch screen with a VGA resolution of 640(RGB)×480 pixels.

Q2: What is the resolution and screen size of this Kyocera panel?

A: The KCS6448HSTT-X21 operates within a temperature range of 0 ~ 50 °C and can be stored within -20 ~ 60 °C.

Q3: What are the operating and storage temperature ranges?

A: The panel uses a Parallel Data (1ch, 8-bit) interface for connectivity.

Q4: What type of interface does the KCS6448HSTT-X21 use?

A: The KCS6448HSTT-X21 is equipped with a CCFL backlight with a typical lifetime of 10,000 hours.

Q5: What backlight technology is integrated into this display?

A: The panel provides a brightness of 150 cd/m² and a typical contrast ratio of 25:1 in transmissive mode.

Q6: What is the brightness and contrast ratio of this Kyocera LCD?

A: The KCS6448HSTT-X21 consumes 344mW (Typ.) and a maximum of 534mW.

Q7: What is the typical power consumption of this panel?

A: The outline dimensions are 253.2×187.4 mm (H×V) and the active display area measures 211.2×158.4 mm (H×V).

Q8: What are the outline dimensions and active area of this module?

A: Yes, the KCS6448HSTT-X21 is specifically designed for industrial application fields, offering reliable performance across standard industrial temperature ranges.

Q9: Is this panel suitable for industrial applications?
