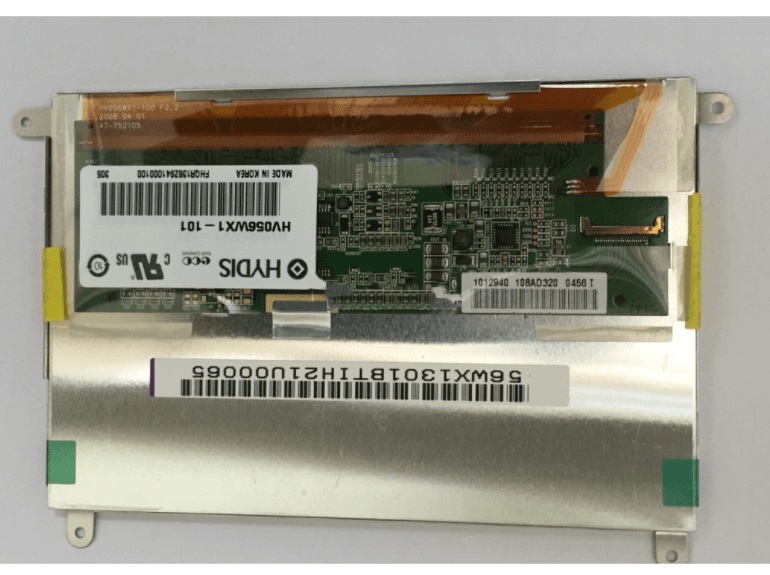

HV056WX1-101 is a 5.6" a-Si TFT-LCD, LCM Display screen Product from .According to 's product specification sheet,HV056WX1-101 display has a resolution of 1280(RGB)×800, WXGA 268PPI, Contrast Ratio is 500 : 1 (Typ.) (TM),Viewing Angle is 85/85/85/85 (Typ.)(CR≥10),Lamp Type is 8S2P WLED , 12K hours , With LED Driver,Signal Interface is LVDS (1 ch, 6-bit) , Connector 25 pins,Brightness is 300 cd/m² (Ty85/85/85/85 (Typ.)(CR≥10)p.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of HV056WX1-101 after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
