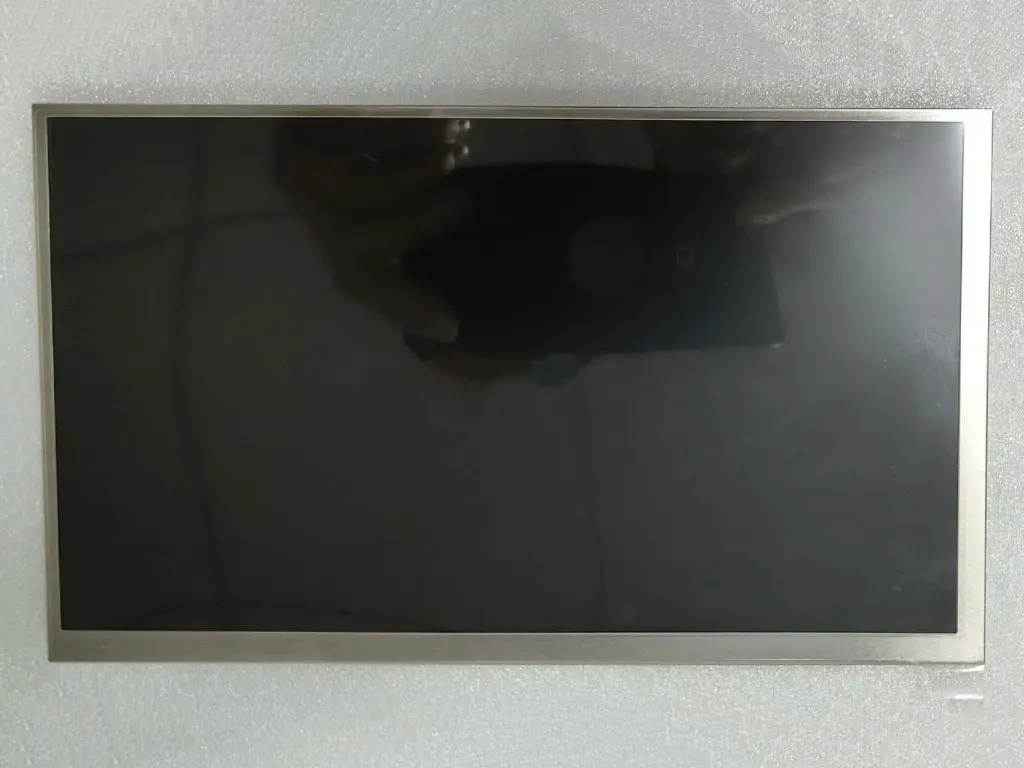

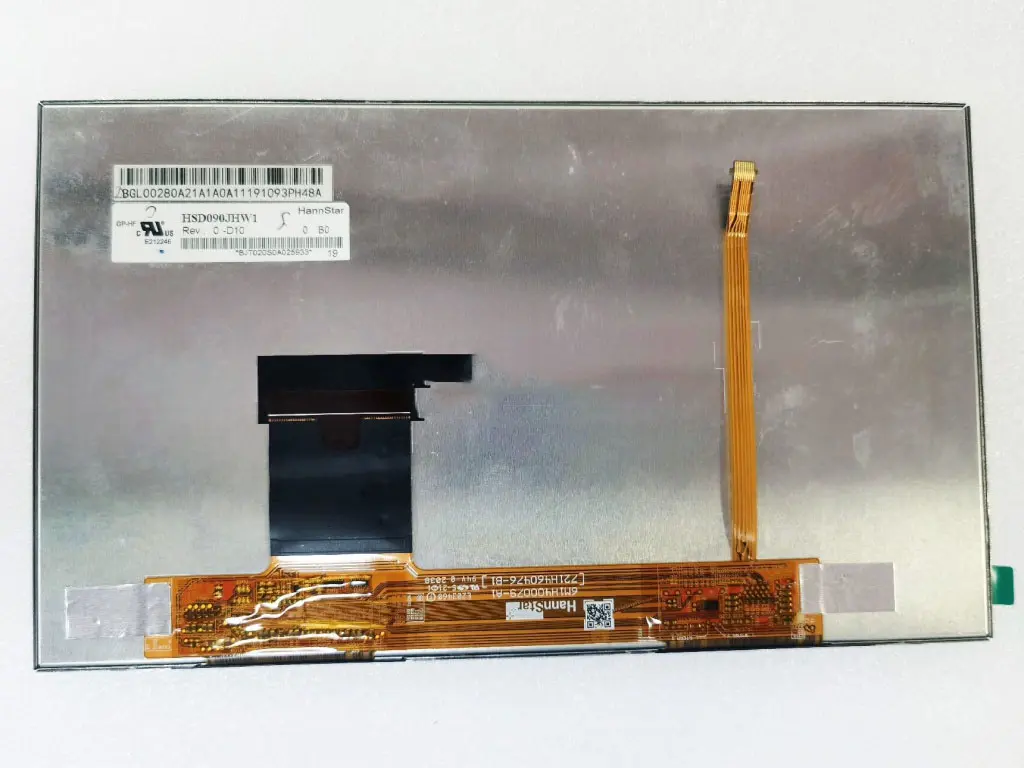

HSD090JHW1-D10 HannStar 9 inch 1280*720 lcd display panel

Price: $90.00

$83.00/ piece

Delivery:

Payment:

Calculate shipping price

HSD090JHW1-D10 HannStar 9 inch 1280*720 lcd display panel

Data sheets：

HSD090JHW1-D10 HannStar 9 inch 1280*720 lcd display panel.pdf

Product Information Product Specifications

Model:

HSD090JHW1-D10

Application:

Automotive Display

Size:

Resolution:

1280(RGB)×720, 16:9, WXGA

Brightness:

800 cd/m² (Typ.)

Contrast Ratio:

900:1 (Typ.) (TM)

Viewing Angle:

85/85/85/85 (Typ.)(CR≥10)

Lamp Type:

9S3P WLED, 30K hrs, No Driver

Signal Interface:

LVDS (1 ch, 8-bit), 60 pins FPC

Panel Type:

a-Si TFT-LCD, LCM

Frame Rate:

60Hz

Active Area:

198.912×111.888 mm (H×V)

Outline:

210.7×124.15×8.15 mm (H×V×D)

Storage Temp:

.-40 ~ 90 °

Operating Temp:

-40 ~ 85 °C

Support Color:

16.7M, 70% NTSC

Ordering instructions

Quality:

test ok before ship it

RMA Policy:

RMA 6 month

Sample:

Paid Sample

Stock:

390

Stock Location:

China

Delivery:

WorldWide

Lead Time:

1-3 Days

Weight:

0.500 KG

Overview

The HSD090JHW1-D10 is a 9-inch a-Si TFT-LCD display module developed by HannStar (Taiwan) specifically for automotive and harsh industrial applications, featuring HannStar's patented IPS Pro wide-view technology. It entered mass production in Q4 2023 and is the mainstream high-reliability solution for 9-inch automotive displays.

This module delivers 1280×720 WXGA resolution (163PPI), 800 cd/m² ultra-high brightness (sunlight readable), 900:1 high static contrast ratio, 85° all-direction viewing angle without color shift, 16.7M (8-bit) true color display, and 70% NTSC standard color gamut, ensuring clear and stable visuals even under direct outdoor sunlight or extreme temperature conditions. Equipped with LVDS (1-channel/8-bit) 40-pin FPC interface, edge-lit WLED backlight system (30,000-hour typical lifespan), and 60Hz standard refresh rate, it provides stable signal transmission and long backlight life for 24/7 automotive and industrial operation.

With a matte anti-glare surface treatment and rigorous automotive-grade reliability testing, it operates at -40℃~85℃, stores at -40℃~90℃, and has a vibration resistance of 2.9G, offering exceptional environmental adaptability for various automotive, outdoor industrial, and medical devices.

HSD090JHW1-D10 HannStar lcd display panel Highlights:

100% Genuine HannStar Quality: All modules are sourced directly from HannStar official channels with traceability certificates, no refurbished or used screens, stable mass production supply

Automotive-Grade Wide Temperature: -40℃~85℃ ultra-wide operating temperature range, adapting to extreme cold, high temperature and rapid temperature changes for global automotive applications

800nits Sunlight Readable: Far brighter than standard consumer screens, ensuring clear visibility even under direct midday sunlight

HannStar Patented IPS Pro Technology: Higher contrast, faster response time and more uniform color than traditional IPS panels, more comfortable for long-term use

High Reliability & Long Lifespan: 30,000-hour backlight lifespan, 2.9G vibration resistance, supports 24/7 uninterrupted operation

Comprehensive Technical Support: Provides matching driver boards, capacitive/resistive touch screen solutions and professional technical guidance, one-stop service for customer customization need

HSD090JHW1-D10 HannStar lcd display panel Specifications:

Category	Specification
Basic Info	Brand: HannStar; Model: HSD090JHW1-D10; Type: a-Si TFT-LCD LCM; Production Status: In mass production
Display Parameters	Size: 9.0 inches (diagonal); Resolution: 1280(RGB)×720 (WXGA); Pixel Density: 163PPI; Aspect Ratio: 16:9
Optical Performance	Technology: IPS Pro (Normally Black, Transmissive); Brightness: 800 cd/m² (Typ.); Contrast: 900:1 (Typ.); Viewing Angle: 85/85/85/85° (CR≥10); Color: 16.7M colors (8-bit); Gamut: 70% NTSC
Backlight System	Type: WLED; Configuration: 9S3P; Type: Edge-lit; Driver: External; Lifespan: 30,000 hours (Typ.)
Interface	Type: LVDS 1.0; Lanes: 1-channel; Pins: 40-pin FPC; Data Bits: 8-bit
Electrical	Input Voltage: 3.3V/12V (Typ.); Refresh Rate: 60Hz; Response Time: 30ms (Tr+Td); Power Consumption: ≤10W
Mechanical	Active Area: 198.912×111.888mm; Outline: 210.7×124.1×6.2mm; Surface: Matte (Anti-glare); Weight: ~260g
Environmental	Operating Temp: -40℃~85℃; Storage Temp: -40℃~90℃; Humidity: 5%~95% (non-condensing); Vibration Resistance: 2.9G
Certifications	RoHS, REACH compliant; Touch: No; Designed For: Automotive displays, Industrial control

HSD090JHW1-D10 HannStar lcd display panel Applications:

Automotive Displays: Car navigation systems, central control screens, rearview cameras, dashboard secondary displays, RV entertainment systems, commercial vehicle monitoring screens

Industrial Control: PLC HMIs, CNC machine tool displays, construction machinery panels,industrial all-in-ones, embedded monitoring panels

Outdoor Smart Devices: EV charging station displays, parcel locker terminals, smart access control, parking gate displays, outdoor digital signage

Medical & Instruments: Portable medical monitors, testing equipment displays, laboratory instrument panels, in-vehicle medical devices

Special Equipment: Marine display systems, aviation ground equipment, military training simulators, security monitoring terminals

FAQ:

Q1: Can HSD090JHW1-D10 directly replace other brands of screens of the same size?A1: It can usually be directly replaced as long as the interface type (LVDS 1-channel 8-bit 40-pin), supply voltage and outline dimensions are consistent. However, the backlight drive parameters of different brands may vary slightly. It is recommended to consult our technical team first to confirm compatibility.

Q2: Can this screen work normally in an environment of minus 40 degrees Celsius?A2: Yes, HSD090JHW1-D10 has passed rigorous automotive-grade low-temperature tests and can work stably in the temperature range of -40℃~85℃, suitable for cold northern regions and outdoor equipment.

Q3: What is the lead time for bulk orders? Can you provide samples?A3: Regular bulk orders (100-500 pieces) ship within 3-7 days. For large orders (over 500 pieces), please consult 10 days in advance. We can provide 1-2 samples for testing, and the sample fee can be deducted from the bulk order.
