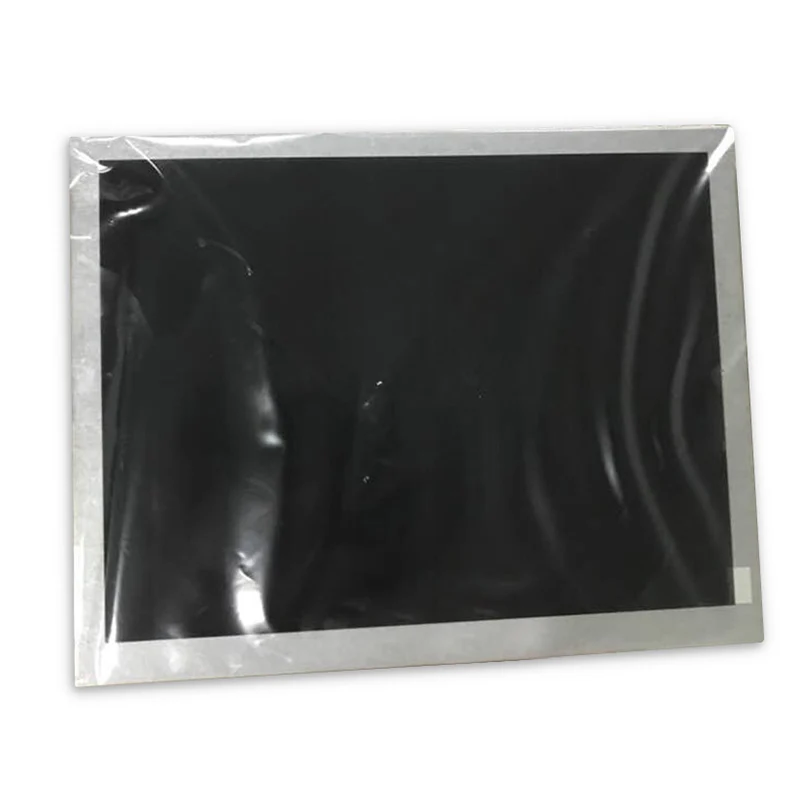

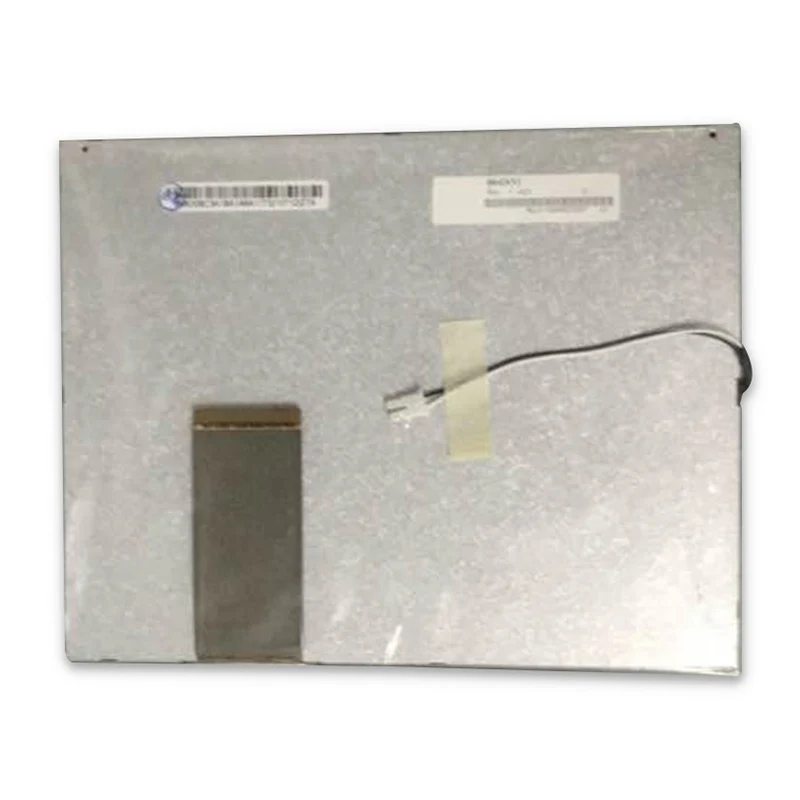

HannStar HSD084ISN1-A01 8.4-Inch 800×600 TFT LCD Panel Industrial Display
The HannStar HSD084ISN1-A01 is an 8.4-inch industrial TFT LCD display module manufactured by HannStar Display Corporation, designed for industrial equipment, embedded systems, digital control terminals, factory automation devices, and LCD replacement applications.
Featuring 800 × 600 SVGA resolution, a-Si TFT active matrix technology, TN Normally White transmissive display mode, and TTL RGB interface, the HSD084ISN1-A01 provides stable image quality, compact mechanical design, and reliable long-term operation for professional display applications.
With a 380 cd/m² high-brightness WLED backlight, 600:1 contrast ratio, and a wide operating temperature range of -20°C to +70°C, this HannStar LCD module is suitable for industrial environments requiring dependable display performance.
Original HannStar industrial TFT LCD panel
8.4-inch display size
Resolution: 800 × 600 pixels
SVGA display format
4:3 aspect ratio
a-Si TFT active matrix technology
TN Normally White transmissive mode
262K / 16.2M display colors
RGB vertical stripe pixel arrangement
TTL RGB 1-channel 6/8-bit interface
60-pin FPC connector
380 cd/m² brightness
600:1 contrast ratio
Wide viewing angle performance
White LED backlight system
No external inverter required
| Specification | Details |
|---|---|
| Model | HSD084ISN1-A01 |
| Manufacturer | HannStar Display Corporation |
| Display Size | 8.4 Inch |
| LCD Type | a-Si TFT-LCD |
| Resolution | 800 × 600 pixels |
| Display Format | SVGA |
| Aspect Ratio | 4:3 |
| Display Mode | TN Normally White Transmissive |
| Display Colors | 262K / 16.2M |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 170.4 × 127.8 mm |
| Pixel Pitch | 0.213 × 0.213 mm |
| Brightness | 380 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) |
| Viewing Angle | 75/75/60/70 (L/R/U/D) |
| Response Time | 2/6 ms (Typ.) |
| Refresh Rate | 60Hz |
| Interface | TTL RGB |
| Interface Type | 1 Channel 6/8-bit |
| Connector | 60-pin FPC |
| Input Voltage | 3.3V |
| Backlight Type | WLED |
| LED Configuration | 3S9P |
HannStar HSD084ISN1-A01 is suitable for:
Industrial PC displays
Factory automation equipment
PLC control terminals
HMI operator interfaces
Embedded computers
Medical instruments
Measurement equipment
Digital control systems
Transportation displays
Industrial monitoring devices
Legacy LCD replacement projects
Original HannStar TFT LCD quality
Classic 8.4-inch SVGA industrial display format
High brightness 380 cd/m² output
Reliable TTL RGB interface
Low-power WLED backlight technology
Wide operating temperature capability
Compact and lightweight LCD structure
Suitable for long-life industrial equipment
Excellent replacement solution for discontinued displays
Ideal for automation maintenance and repair projects
Supports OEM industrial LCD supply requirements
Each HannStar HSD084ISN1-A01 LCD module can be tested with:
Power-on display testing
Pixel defect inspection
Brightness uniformity testing
TTL RGB signal verification
Backlight function inspection
FPC connector inspection
Voltage testing
Appearance quality inspection
Anti-static protective packaging
Professional industrial LCD quality control
The HSD084ISN1-A01 is an 8.4-inch TFT LCD module from HannStar Display with SVGA resolution, designed for industrial and embedded display applications.
It features 800 × 600 SVGA resolution with a 4:3 aspect ratio.
The panel uses a TTL RGB 1-channel 6/8-bit interface with a 60-pin FPC connector.
It uses a white LED (WLED) backlight system with approximately 20,000 hours lifetime and no external inverter required.
No. The standard HSD084ISN1-A01 is a display-only TFT LCD module without touchscreen.
Yes. Its SVGA resolution, stable TTL RGB interface, WLED backlight, and wide operating temperature range make it suitable for industrial HMI and embedded systems.
