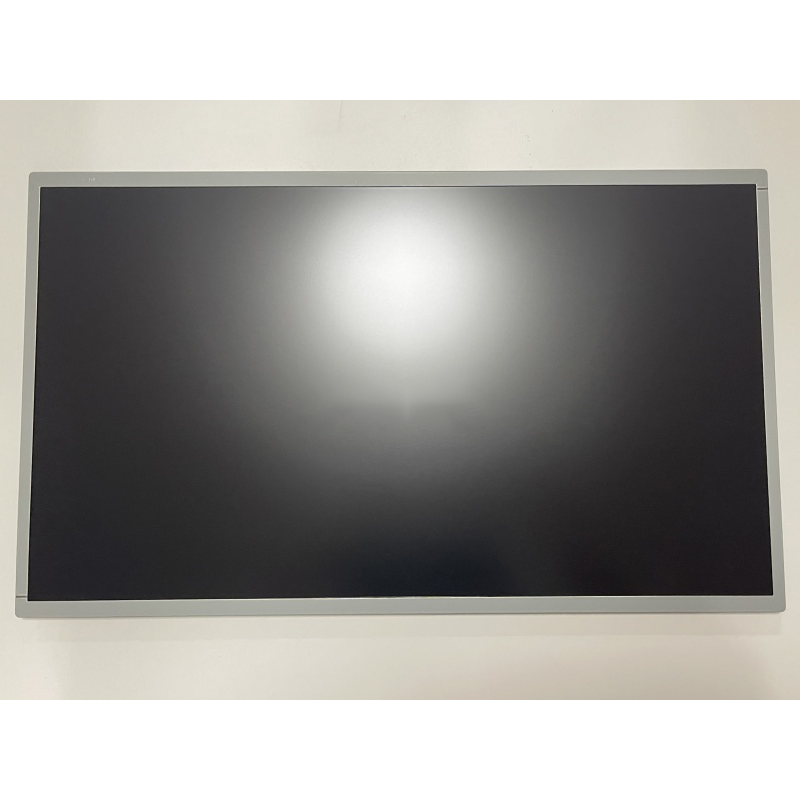

G215HAN01.2   21.5"  lcd   display  panel  for AUO
G215HAN01.2 21.5" lcd display panel for AUO
Price: $115.00
$108.00/ piece
Add to cart
G215HAN01.2   21.5"  lcd   display  panel  for AUO
G215HAN01.2   21.5
G215HAN01.2 AUO  21.5
G215HAN01.2   21.5
G215HAN01.2   lcd   display  panel
G215HAN01.2   21.5
G215HAN01.2 AUO  21.5
G215HAN01.2   21.5
G215HAN01.2   lcd   display  panel

G215HAN01.2 21.5" lcd display panel for AUO

Price: $115.00
$108.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

G215HAN01.2 21.5" lcd display panel for AUO

Product Information Product Specifications
Model:
G215HAN01.2
Brand:
AUO
Application:
Industrial
Size:
21.5"
Resolution:
1920(RGB)×1080, FHD 102PPI
Brightness:
350 cd/m² (Typ.)
Contrast Ratio:
1000 : 1 (Typ.) (TM)
Viewing Angle:
89/89/89/89 (Typ.)(CR≥10)
Lamp Type:
WLED [12S4P] , 50K hours , W/O Driver
Signal Interface:
LVDS (2 ch, 8-bit) , 30 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
115
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
5.500 KG
Overview

Product Introduction

The AUO G215HAN01.2 is a 21.5-inch industrial TFT-LCD display panel designed for OEM and system-integrator applications. This a-Si TFT-LCD LCM module delivers Full HD resolution, 350-nit brightness, wide viewing angles, and a 60Hz refresh rate in a transmissive, normally black AHVA configuration. With an LVDS 2-channel, 8-bit interface and a 50,000-hour minimum WLED backlight lifetime, the G215HAN01.2 supports demanding industrial display environments where visual performance and operating reliability are essential.

Key Features

  • 5-inch a-Si TFT-LCD LCM with 1920 × 1080 Full HD resolution

  • 350-nit brightness and 1000:1 typical contrast ratio

  • 89° viewing angles across all four directions

  • 12/10 ms typical response time and 60Hz refresh rate

  • 7M color depth using 6-bit + Hi-FRC

  • 97% sRGB coverage based on CIE 1931

  • AHVA display mode with normally black, transmissive configuration

  • LVDS interface with 2-channel, 8-bit data transmission

  • WLED backlight rated for a minimum operating lifetime of 50,000 hours

  • Wide operating temperature range from 0°C to 60°C

  • Low typical power consumption of 11.68W

  • Compact outline dimensions of 497.6 × 292.2mm and a typical weight of 1.74kg

Technical Specifications

Panel ModelG215HAN01.2
Panel Typea-Si TFT-LCD, LCM
Display Size21.5
Resolution1920(RGB)×1080, FHD
Pixel Pitch0.08265×0.24795 mm (H×V)
Application FieldIndustrial
Operating Temperature0 ~ 60 °C
Storage Temperature-20 ~ 60 °C
Brightness350
Contrast Ratio1000:1 (Typ.) (Transmissive)
Response Time12/10 (Typ.)(Tr/Td) ms
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Color Depth16.7M (6-bit + Hi-FRC)
Color Temperature6485K
Display ModeAHVA, Normally Black, Transmissive
Refresh Rate60Hz
sRGB Coverage97% coverage (CIE 1931)
Outline Dimension497.6×292.2 mm (H×V)
Active Area476.064×267.786 mm (H×V)
Weight1.74Kgs (Typ.)
Voltage33.6/40.8V (Typ./Max.)
Power Consumption11.68W (Typ.)
Backlight TypeWLED
Backlight Lifetime50K (Min.) hrs
InterfaceLVDS (2 ch, 8-bit) Logic Voltage -

Applications

  • Industrial operator panels and process-control interfaces

  • Factory automation and machine-control systems

  • Industrial monitoring and test equipment

  • HMI terminals and production-line displays

  • Control-room and diagnostic display systems

  • OEM embedded display platforms requiring a 21.5-inch FHD panel

Frequently Asked Questions

Q1: What display resolution and panel technology does the AUO G215HAN01.2 provide?

A: The G215HAN01.2 is a 21.5-inch a-Si TFT-LCD LCM with a native 1920 × 1080 Full HD resolution.

Q2: What interface is used for this industrial display panel?

A: It uses an LVDS interface configured for 2-channel, 8-bit data transmission.

Q3: What are the brightness and contrast specifications?

A: The panel provides 350-nit brightness and a typical contrast ratio of 1000:1 in a transmissive configuration.

Q4: What are the viewing angle and response time specifications?

A: Typical viewing angles are 89° in all four directions, with a typical response time of 12/10ms for Tr/Td.

Q5: What operating temperature range is supported?

A: The G215HAN01.2 is rated for operation from 0°C to 60°C and storage from -20°C to 60°C.

Q6: How is the panel backlit, and what is the specified backlight lifetime?

A: The display uses a WLED backlight with a specified minimum lifetime of 50,000 hours.

Q7: What power supply voltage does the panel require?

A: The typical and maximum voltages are 33.6V and 40.8V, respectively.

Q8: What are the panel's physical dimensions and weight?

A: The outline dimensions are 497.6 × 292.2mm, with a typical weight of 1.74kg. The active area measures 476.064 × 267.786mm.
