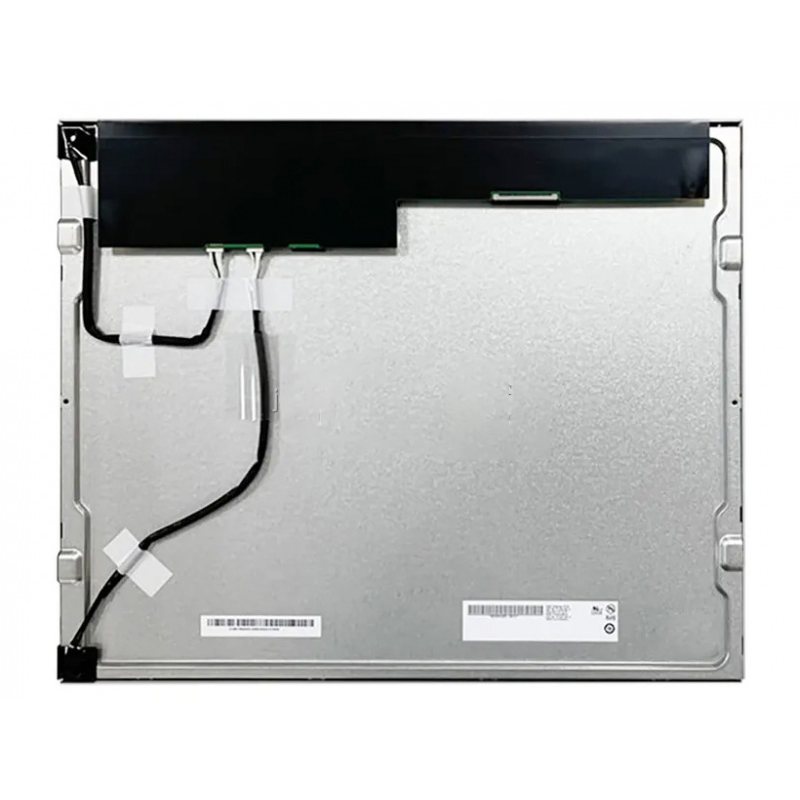

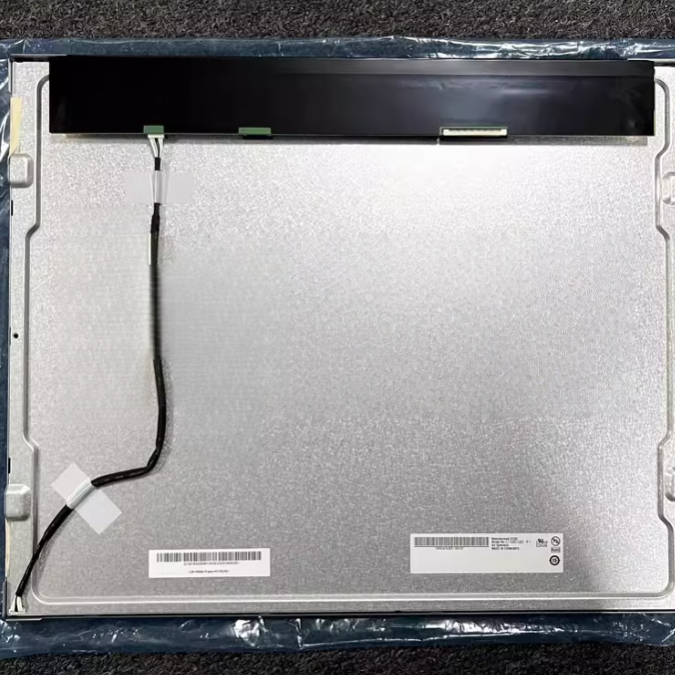

G190EG02 V104 19" tft lcd  module  for AUO
G190EG02 V104 19" tft lcd module for AUO
Price: $168.00
$160.00/ piece
Add to cart
G190EG02 V104 19
G190EG02 V104 19
G190EG02 V104 19
G190EG02 V104 19

G190EG02 V104 19" tft lcd module for AUO

Price: $168.00
$160.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

G190EG02 V104 19" tft lcd module for AUO

Product Information Product Specifications
Model:
G190EG02 V104
Brand:
AUO
Application:
Industrial
Size:
19"
Resolution:
1280(RGB)×1024, SXGA 86PPI
Brightness:
350 cd/m² (Typ.)
Contrast Ratio:
2000:1 (Typ.) (TM)
Viewing Angle:
89/89/89/89 (Typ.)(CR≥10)
Lamp Type:
WLED , 50K hours , With LED Driver
Signal Interface:
LVDS (2 ch, 8-bit) , 30 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
115
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
3.500 KG
Overview

Product Introduction

The AUO G190EG02 V104 is a 19-inch a-Si TFT-LCD LCM designed for demanding industrial applications. Featuring SXGA resolution of 1280(RGB)×1024 at 86 PPI, it provides sharp, detailed visuals suitable for professional monitoring, control systems, and medical equipment. With MVA (Multi-domain Vertical Alignment) technology and a wide 89/89/89/89 viewing angle, the display delivers consistent image quality across all directions, while the 2000:1 contrast ratio (Typ.) and 350 cd/m² brightness ensure clear visibility under varied lighting conditions. The module operates reliably within a -15°C to 70°C temperature range and offers a backlight lifetime of 50K hours minimum, making it a durable choice for long-term deployment in industrial environments. It also provides 93% sRGB coverage (CIE 1931) for accurate color reproduction.

Key Features

  • 19-inch a-Si TFT-LCD LCM with SXGA resolution (1280×1024) and 86 PPI pixel density

  • MVA panel technology with 89/89/89/89 viewing angles and Normally Black transmissive mode

  • High contrast ratio of 2000:1 (Typ.) with 350 cd/m² brightness

  • Fast response time of 15/5 ms (Tr/Td Typ.) for clear motion rendering

  • 93% sRGB coverage (CIE 1931) for accurate color reproduction

  • Wide operating temperature range: -15°C to 70°C; storage temperature: -20°C to 70°C

  • LVDS (2 ch, 8-bit) interface for reliable signal transmission

  • 50K hours minimum backlight lifetime for extended operational durability

  • Active area of 376.32×301.056 mm with slim outline dimension of 15.3±0.5 mm

  • Typical power consumption of 14.54W at 12.0V input voltage

  • 60Hz refresh rate suitable for standard industrial display applications

Technical Specifications

Panel ModelG190EG02 V104
Panel Typea-Si TFT-LCD, LCM
Display Size19
Resolution1280(RGB)×1024, SXGA [86PPI]
Pixel Pitch0.098×0.294 mm
Operating Temperature-15 ~ 70 °C
Storage Temperature-20 ~ 70 °C
Brightness350
Contrast Ratio2000:1 (Typ.) (Transmissive)
Response Time15/5 (Typ.)(Tr/Td) ms
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Color Temperature6485K
Display ModeMVA, Normally Black, Transmissive
Refresh Rate60Hz
sRGB Coverage93% coverage (CIE 1931)
Outline Dimension15.3±0.5 mm
Active Area376.32×301.056 mm
Weight1.74Kgs (Typ.)
Voltage12.0V (Typ.)
Power Consumption14.54W (Typ.)
Backlight Lifetime50K (Min.) hrs
InterfaceLVDS (2 ch, 8-bit)

Applications

  • Industrial control systems and HMI (Human-Machine Interface) panels

  • Medical imaging and diagnostic equipment displays

  • Factory automation and process monitoring stations

  • Test and measurement instrumentation

  • Security and surveillance monitoring systems

  • Transportation and railway information terminals

  • Military and aerospace control consoles

  • Professional broadcasting and studio monitoring

  • Banking and financial trading terminal displays

  • Kiosk and self-service terminal displays

Frequently Asked Questions

A: The AUO G190EG02 V104 is a 19-inch panel with SXGA resolution of 1280(RGB)×1024 and a pixel pitch of 0.098×0.294 mm, providing 86 PPI pixel density for industrial display requirements.

Q1: What is the resolution and display size of the AUO G190EG02 V104?

A: The G190EG02 V104 operates reliably within a temperature range of -15°C to 70°C and can be stored between -20°C and 70°C, making it suitable for a wide range of industrial environments.

Q2: What are the operating temperature limits for this LCD module?

A: This model uses an LVDS (2 ch, 8-bit) interface, which provides stable and reliable signal transmission for industrial-grade display applications.

Q3: What interface does the G190EG02 V104 use?

A: The G190EG02 V104 features a typical contrast ratio of 2000:1 (Transmissive) and brightness of 350 cd/m², ensuring clear visibility in various ambient lighting conditions.

Q4: What is the contrast ratio and brightness level of this display?

A: The backlight of the G190EG02 V104 has a minimum lifetime of 50,000 hours, supporting extended use in long-term industrial deployments.

Q5: What is the backlight lifetime of the G190EG02 V104?

A: Yes, the G190EG02 V104 uses MVA technology with viewing angles of 89/89/89/89 (Typ.) (CR≥10), allowing consistent image quality from nearly any viewing direction.

Q6: Does the G190EG02 V104 support wide viewing angles?

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
G190EG02 V104 19" tft lcd  module  for AUO

G190EG02 V104 19" tft lcd module for AUO

G190EG02 V104

19"
1280(RGB)×1024, SXGA 86PPI
350 cd/m² (Typ.)
2000:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED , 50K hours , With LED Driver
LVDS (2 ch, 8-bit) , 30 pins Connector
a-Si TFT-LCD, LCM
AUO G190EG02 V.0  19  inch lcd display module

AUO G190EG02 V.0 19 inch lcd display module

G190EG02 V.0

19"
1280(RGB)×1024, SXGA 86PPI
600 cd/m² (Typ.)
2000 : 1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED , 50K hours , With LED Driver
LVDS (2 ch, 8-bit) , 30 pins Connector
a-Si TFT-LCD, LCM
AUO  G190EAN01.1   19  inch  tft screen

AUO G190EAN01.1 19 inch tft screen

G190EAN01.1

19"
1280(LCR)×1024, SXGA 86PPI
1300 cd/m² (Typ.)
1000 : 1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
9S6P WLED , 50K hours , With LED Driver
LVDS (2 ch, 8-bit) , 30 pins Connector
a-Si TFT-LCD, LCM
G190EG02 V104 is a 19" a-Si TFT-LCD, LCM Display screen Product from AUO.According to AUO's product specification sheet,G190EG02 V104 display has a resolution of 1280(RGB)×1024, SXGA 86PPI, Contrast Ratio is 2000:1 (Typ.) (TM),Viewing Angle is 89/89/89/89 (Typ.)(CR≥10),Lamp Type is WLED , 50K hours , With LED Driver,Signal Interface is LVDS (2 ch, 8-bit) , 30 pins Connector,Brightness is 350 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of G190EG02 V104 after packaging is 3.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
