Commercial Widescreen: AUO G185HAN01.1 18.5" FHD 1920×1080 Monitor Panel
Commercial Widescreen: AUO G185HAN01.1 18.5" FHD 1920×1080 Monitor Panel
Price: $190.00
$186.00/ piece
Add to cart
Commercial Widescreen: AUO G185HAN01.1 18.5" FHD 1920×1080 Monitor Panel

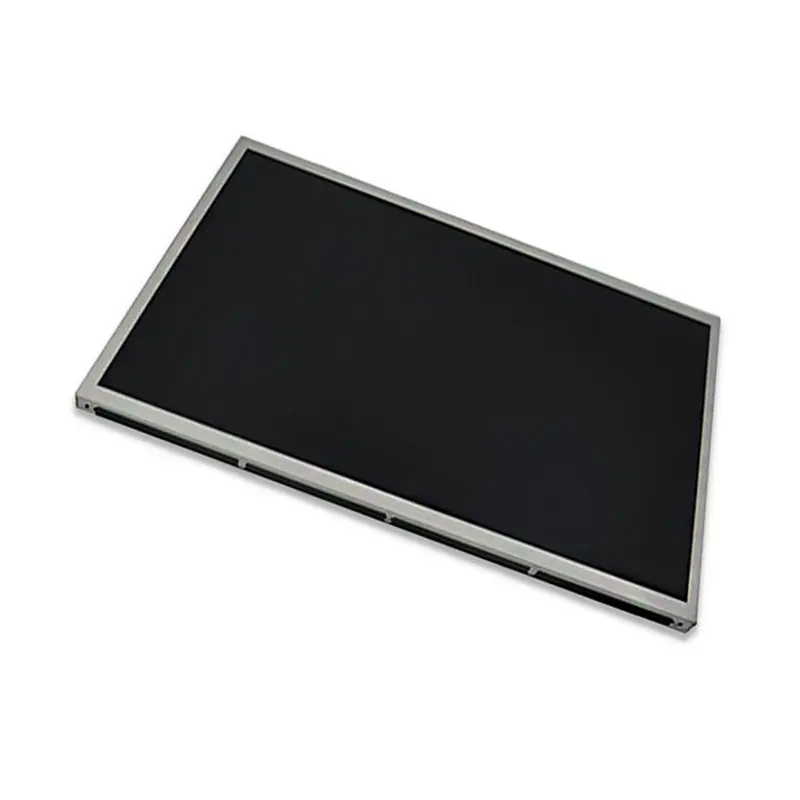

AUO G185HAN01.1 18.5 inch FHD 1920x1080 commercial monitor LCD panel front view

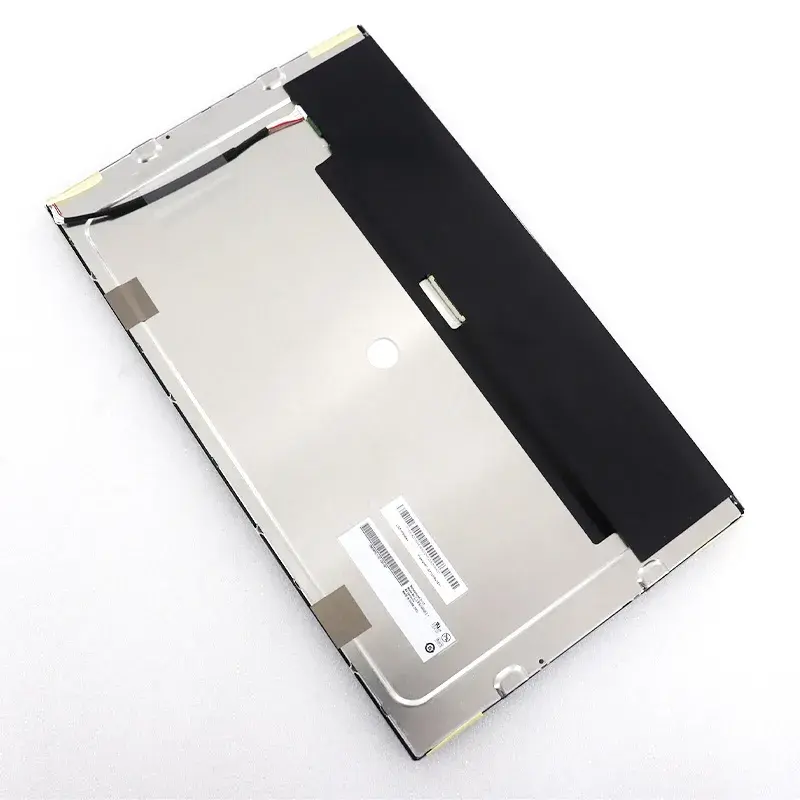

G185HAN01.1 back panel showing LVDS connector and AUO .1 version label
AUO G185HAN01.1 18.5 inch FHD 1920x1080 commercial monitor LCD panel front view
G185HAN01.1 back panel showing LVDS connector and AUO .1 version label

Commercial Widescreen: AUO G185HAN01.1 18.5" FHD 1920×1080 Monitor Panel

Price: $190.00
$186.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

Commercial Widescreen: AUO G185HAN01.1 18.5" FHD 1920×1080 Monitor Panel

Product Information Product Specifications
Model:
G185HAN01.1
Brand:
AUO
Application:
Industrial
Size:
18.5"
Resolution:
1920(RGB)×1080, FHD 119PPI
Brightness:
500 cd/m² (Typ.)
Contrast Ratio:
1000 : 1 (Typ.) (TM)
Viewing Angle:
89/89/89/89 (Typ.)(CR≥10)
Lamp Type:
WLED [8S7P] , 50K hours , With LED Driver
Signal Interface:
LVDS (2 ch, 8-bit) , 30 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
115
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
3.500 KG
Overview

The AUO G185HAN01.1 is a premium 18.5-inch Full HD TFT LCD panel featuring a crisp 1920×1080 resolution and a standard 16:9 widescreen aspect ratio. Engineered specifically for commercial and professional environments, this genuine AUO display delivers exceptional color accuracy, wide viewing angles, and the reliable 24/7 durability required for desktop monitors, Point of Sale (POS) terminals, and digital signage. The specific .1 revision ensures exact mechanical fitment and electrical compatibility with your original equipment. At ZYLCD Shop, every unit is rigorously tested to restore your commercial displays to factory brilliance.

Product Features

  • True FHD Widescreen Clarity: 1920×1080 resolution on an 18.5" panel delivers sharp text and vibrant graphics, providing an optimal visual experience for office productivity, retail checkout systems, and multimedia content.

  • Standard 16:9 Commercial Format: The industry-standard 16:9 aspect ratio perfectly matches modern operating systems, video content, and standard 18.5-inch desktop monitor housings without black bars or stretching.

  • Exact .1 Variant Match: Genuine AUO G185HAN01.1 ensures plug-and-play compatibility with your monitor's specific driver board, preventing issues with brightness control, inverted colors, or signal timing errors.

  • 24/7 Commercial Durability: Built to withstand continuous operation in demanding retail, office, and public-facing environments where consumer-grade panels would quickly degrade.

  • Grade A+ Quality Guaranteed: 100% tested before shipment to ensure zero dead pixels, uniform WLED backlight brightness, and flawless high-bandwidth signal transmission.

Technical Specifications

Part NumberG185HAN01.1
BrandAU Optronics (AUO)
Diagonal Size18.5 Inch
Resolution1920(RGB) × 1080 (FHD)
Aspect Ratio16:9 (Widescreen)
Display Technologya-Si TFT-LCD, Transmissive (AHVA/IPS-like)
Signal InterfaceLVDS / eDP (Verify by .1 spec)
Backlight TypeWLED (White LED)
Surface TreatmentAnti-Glare (Matte) / Hard Coating
Operating Temperature0°C ~ 50°C (Standard Commercial)

Common Applications

This AUO 18.5" FHD professional display is widely deployed in:

  • Desktop PC Monitors (Office, Home, and Student Workstations)

  • Point of Sale (POS) Terminals & Retail Checkout Systems

  • Commercial Digital Signage & Indoor Advertising Displays

  • All-in-One (AIO) PC Replacement Screens

  • Security Control Room & CCTV Surveillance Monitors

Why Choose ZYLCD Shop?

  • Authentic AUO Inventory: We source directly from authorized channels; every G185HAN01.1 is guaranteed genuine Grade A+ commercial stock.

  • Strict Version Verification: Our engineers provide free cross-reference confirmation via your original panel's photo to ensure the .1 revision matches perfectly.

  • Secure Global Shipping: Professional ESD-safe and heavy-duty shock-proof packaging via DHL/FedEx to protect the large 18.5" glass substrate.

  • Comprehensive Warranty: All commercial displays backed by standard warranty for worry-free B2B procurement.

Frequently Asked Questions

What does the ".1" suffix mean in AUO G185HAN01.1?

The ".1" suffix indicates a specific hardware revision by AUO, defining the exact backlight type, LED driver voltage, interface pinout mapping (LVDS vs eDP), and optical film configuration. Substituting a panel with a different version (e.g., .0 or .2) will likely result in incompatible connectors, wrong voltage, or dim display. Always match the exact .1 suffix for plug-and-play installation.

Is the 18.5" FHD panel suitable for continuous 24/7 digital signage use?

Yes. Unlike standard consumer-grade TV panels that may suffer from image retention or premature backlight degradation under constant use, the AUO G185HAN01.1 is engineered for commercial applications. Its robust WLED backlight system and thermal management design make it highly suitable for 24/7 operation in POS systems, menu boards, and indoor advertising kiosks.

Where can I download the G185HAN01.1 datasheet and pinout diagram?

You can request the official AUO G185HAN01.1 datasheet PDF, including mechanical dimensions, backlight specs, and the exact interface pinout, by clicking the "Request Datasheet" button below or contacting our live chat support team for instant access.

Restore Your Commercial Display Today

Don't risk downtime for your business with incompatible substitutes. Secure your genuine AUO G185HAN01.1 FHD replacement panel now.

Request Quote / Verify Version      Add to Cart
Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
Commercial Widescreen: AUO G185HAN01.1 18.5" FHD 1920×1080 Monitor Panel

Commercial Widescreen: AUO G185HAN01.1 18.5" FHD 1920×1080 Monitor Panel

G185HAN01.1

18.5"
1920(RGB)×1080, FHD 119PPI
500 cd/m² (Typ.)
1000 : 1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED [8S7P] , 50K hours , With LED Driver
LVDS (2 ch, 8-bit) , 30 pins Connector
a-Si TFT-LCD, LCM
AUO G185HAN01.0 18.5" FHD (1920x1080) IPS Industrial TFT LCD Panel

AUO G185HAN01.0 18.5" FHD (1920x1080) IPS Industrial TFT LCD Panel

G185HAN01.0

18.5"
1920(RGB)×1080, FHD 119PPI
350 cd/m² (Typ.)
1000:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED [9S7P] , 50K hours , With LED Driver
LVDS (2 ch, 8-bit) , 30 pins Connector
a-Si TFT-LCD, LCM
G185HAN01.004      18.5"       lcd    display     module      for     AUO

G185HAN01.004 18.5" lcd display module for AUO

G185HAN01.004

18.5"
1920(RGB)×1080, FHD 119PPI
350 cd/m² (Typ.)
1000:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
8S7P WLED , 50K hours , With LED Driver
LVDS (2 ch, 8-bit) , 30 pins Connector
a-Si TFT-LCD, LCM
G185HAN01.2       18.5"       LCD     display    Screen      module   for      AUO

G185HAN01.2 18.5" LCD display Screen module for AUO

G185HAN01.2

18.5"
1920(RGB)×1080, FHD 119PPI
500 (Typ.)(cd/m²)
1000 : 1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
8S7P WLED , 50K hours , With LED Driver
LVDS (2 ch, 8-bit) , 30 pins Connector
a-Si TFT-LCD, LCM
G185HAN01.1 is a 18.5" a-Si TFT-LCD, LCM Display screen Product from AUO.According to AUO's product specification sheet,G185HAN01.1 display has a resolution of 1920(RGB)×1080, FHD 119PPI, Contrast Ratio is 1000 : 1 (Typ.) (TM),Viewing Angle is 89/89/89/89 (Typ.)(CR≥10),Lamp Type is WLED [8S7P] , 50K hours , With LED Driver,Signal Interface is LVDS (2 ch, 8-bit) , 30 pins Connector,Brightness is 500 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of G185HAN01.1 after packaging is 3.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
