Produktinformationen Produktspezifikationen

Modell:

G156HCE-L01

Marke:

INNOLUX

Anwendung:

Größe:

Entschließung:

1920(RGB)×1080, FHD 141PPI

Helligkeit:

450 cd/m² (Typ.)

Kontrastverhältnis:

800 : 1 (Typ.) (TM)

Betrachtungswinkel:

85/85/85/85 (Typ.)(CR≥10)

Lampentyp:

WLED , 50K hours , With LED Driver

Signalschnittstelle:

LVDS (2 ch, 8-bit) , 40 pins Connector

Panel-Typ:

a-Si TFT-LCD, LCM

Bestellanleitung

Modell:

test ok before ship it

Größe:

RMA 6 month

Entschließung:

Paid Sample

Lagerbestand:

115

Betrachtungswinkel:

China

Lampentyp:

WorldWide

Signalschnittstelle:

1-3 Days

Gewicht:

3.500 KG

Übersicht

Produktvergleich

Modell:

Größe:

Entschließung:

Helligkeit:

Kontrastverhältnis:

Betrachtungswinkel:

Lampentyp:

Signalschnittstelle:

Panel-Typ:

G156HCE-L01

1920(RGB)×1080, FHD 141PPI

450 cd/m² (Typ.)

800 : 1 (Typ.) (TM)

85/85/85/85 (Typ.)(CR≥10)

WLED , 50K hours , With LED Driver

LVDS (2 ch, 8-bit) , 40 pins Connector

a-Si TFT-LCD, LCM

G156HCE-L01-S01

1920(RGB)×1080,

1000 cd/m² (Typ.)

800 : 1 (Typ.) (TM)

89/89/89/89 (L/R/U/D)

WLED

40 pins

a-Si TFT-LCD, LCM

G156HCE-L01-S03

1920(RGB)×1080,

450 cd/m² (Typ.)

800 : 1 (Typ.) (TM)

89/89/89/89 (L/R/U/D)

WLED

40 pins

a-Si TFT-LCD, LCM

G156HCE-L01-1500

1920(RGB)×1080,

1500 cd/m² (Typ.)

800 : 1 (Typ.) (TM)

85/85/85/85 (Typ.)(CR≥10)

WLED

40 pins

a-Si TFT-LCD, LCM

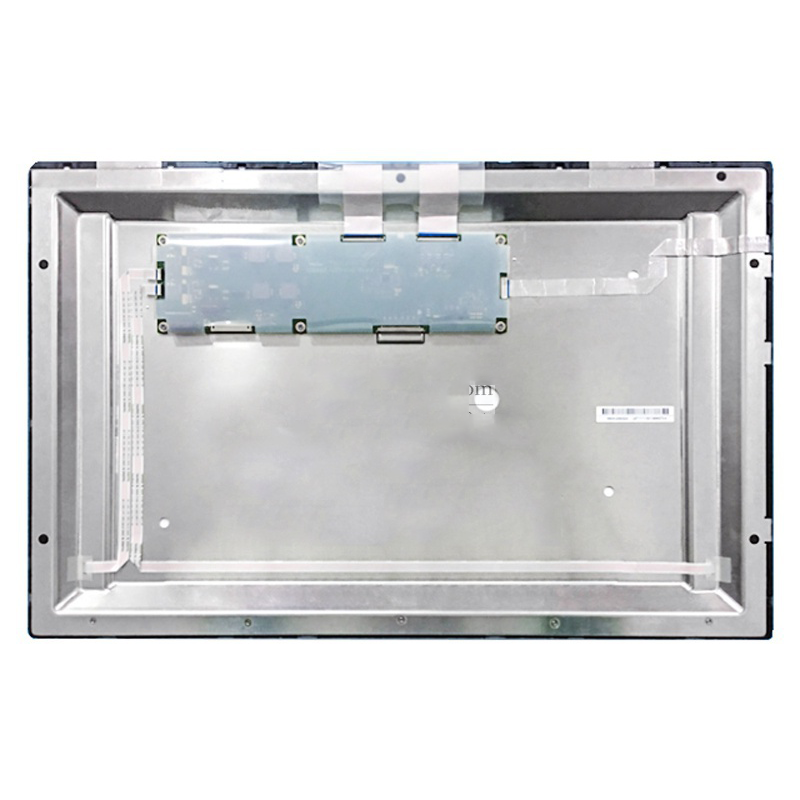

G156HCE-L01 is a 15.6" a-Si TFT-LCD, LCM Display screen Product from INNOLUX.According to INNOLUX's product specification sheet,G156HCE-L01 display has a resolution of 1920(RGB)×1080, FHD 141PPI, Contrast Ratio is 800 : 1 (Typ.) (TM),Viewing Angle is 85/85/85/85 (Typ.)(CR≥10),Lamp Type is WLED , 50K hours , With LED Driver,Signal Interface is LVDS (2 ch, 8-bit) , 40 pins Connector,Brightness is 450 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of G156HCE-L01 after packaging is 3.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.

Fragen und Antworten

Eine Frage stellen >

Alle (5) (5) Package (0) Express Delivery (0) (0) (0)

Where can I buy an authentic G156HCE-L01 screen? How can I identify a genuine one?

It is recommended to purchase from authorized distributors or reputable electronic component suppliers. To identify a genuine screen, you can: 1. Check the label on the back of the screen to see if the model number and QR code are clear and neat; 2. Compare it with pictures in the official datasheet; 3. Perform a power-on test to check for dead pixels, flickering, or color abnormalities.

What is the total thickness of this screen? Will it fit my device?

The total thickness of the G156HCE-L01 is typically 2.6mm. You need to measure the thickness and internal space of the original screen in your device to ensure the new screen can be properly installed without being too thick.

Can the G156HCE-L01 be used as a replacement for other 15.6-inch screen models?

Not necessarily. While the size is the same, compatibility depends on several factors, including the interface type, pinout, voltage, cable position, and mounting holes. Before replacement, you must confirm that the target device's screen parameters completely match those of the G156HCE-L01.

What are the resolution, brightness, and contrast of this display?

The G156HCE-L01 is a 15.6-inch screen with a standard resolution of 1920 x 1080. Its typical brightness is 450 nits, and the contrast ratio is 800:1.

What is the interface type for the G156HCE-L01 screen? And what is its pin configuration?

The G156HCE-L01 uses an LVDS interface. Specifically, it's a 2-channel LVDS with a 30-pin connector. For the detailed pinout definition, please refer to the official datasheet, as incorrect wiring can permanently damage the screen.
