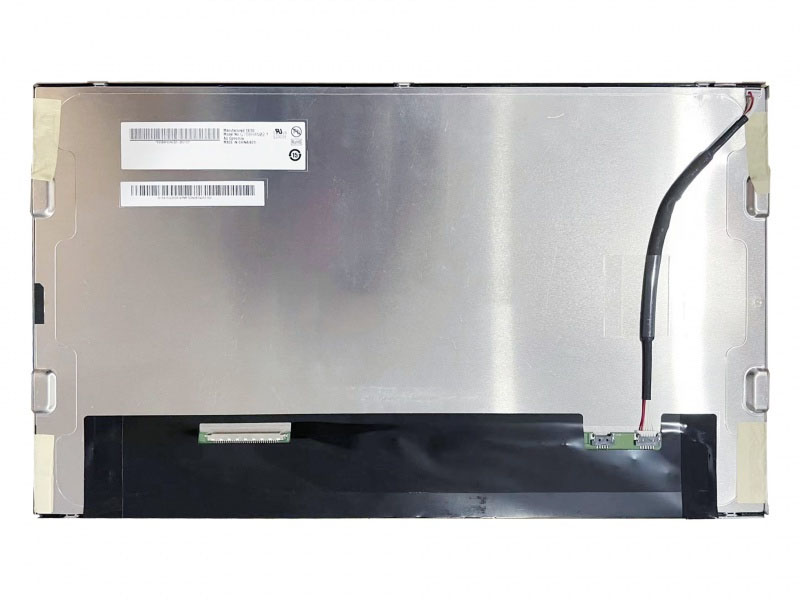

G156HAN02.1 AUO 15,6 Zoll FHD LCD Panel LVDS Display
G156HAN02.1 AUO 15,6 Zoll FHD LCD Panel LVDS Display
Der Preis: €135.81
€131.28/ Mitglied
In den Warenkorb
G156HAN02.1 AUO 15,6 Zoll FHD LCD Panel LVDS Display
G156HAN02.1  15.6 inch panel lcd
G156HAN02.1  15.6 inch panel lcd
G156HAN02.1  15.6 inch panel lcd
G156HAN02.1  15.6 inch panel lcd

G156HAN02.1 AUO 15,6 Zoll FHD LCD Panel LVDS Display

Der Preis: €135.81
€131.28/ Mitglied
Lieferung:
Zahlung:
Berechnung der fracht
Erforderlich:*
Produktmodell* Zielpreis Qty *
Nachricht
Ihre Kontaktdaten: Weitere Informationen:
Name: *
Herr. Frau.
1. Angebot mit Versand Fracht?
Email : *
JA NEIN
Telefon: 2. Welchen Carrier perfert ihr??
Unternehmen:
Fedex UPS DHL
TNT andere
Land:*

G156HAN02.1 AUO 15,6 Zoll FHD LCD Panel LVDS Display

Produktinformationen Produktspezifikationen
Modell:
G156HAN02.1
Marke:
AUO
Anwendung:
Industrie
Größe:
Entschließung:
1920(RGB)×1080, FHD 141PPI
Helligkeit:
500 cd/m² (Typ.)
Kontrastverhältnis:
1000:1 (Typ.) (TM)
Betrachtungswinkel:
89/89/89/89 (Typ.)(CR≥10)
Lampentyp:
WLED , 50K hours , With LED Driver
Signalschnittstelle:
LVDS (2 ch, 8-bit) , 30 pins Connector
Panel-Typ:
a-Si TFT-LCD, LCM
Bestellanleitung
Qualität:
test ok before ship it
Größe:
RMA 6 month
Entschließung:
Paid Sample
Lagerbestand:
115
Betrachtungswinkel:
China
Lampentyp:
WorldWide
Signalschnittstelle:
1-3 Days
Gewicht:
2.500 KG
Übersicht

Produkteinführung

Das AUO G156HAN02.1 ist ein 15,6-Zoll a-Si TFT-LCD-Panelmodul, das für anspruchsvolle industrielle und gewerbliche Displayanwendungen entwickelt wurde. Mit einer nativen Auflösung von 1920(RGB)×1080 und einer Pixeldichte von 141 PPI liefert das Panel gestochen scharfe Full-HD-Bilder, während die 99% sRGB-Farbraumabdeckung (CIE 1931) eine präzise Farbwiedergabe für professionelle Überwachungsaufgaben gewährleistet. Die AHVA-Technologie (Advanced Hyper-Viewing Angle) in Kombination mit dem Normally Black-Modus sorgt für Betrachtungswinkel von 89/89/89/89 und ein Kontrastverhältnis von 1000:1, wodurch die Bildkonsistenz bei unterschiedlichen Blickpositionen erhalten bleibt. Eine Helligkeit von 500 cd/m² unterstützt die Ablesbarkeit in Umgebungen mit starker Umgebungsbeleuchtung, und das schlanke mechanische Profil von 8,3 mm ermöglicht die Integration in platzbeschränkte Gehäuse. Das für den Dauerbetrieb ausgelegte Panel verfügt über eine 2-Kanal 8-Bit LVDS-Schnittstelle, einen breiten Betriebstemperaturbereich von -20°C bis 70°C sowie eine Mindestlebensdauer der Hintergrundbeleuchtung von 50.000 Stunden und bietet Systemingenieuren eine zuverlässige, langlebige Displaylösung für anspruchsvolle Industrieumgebungen.

Wichtige Merkmale

  • 15,6-Zoll a-Si TFT-LCD-Panel mit FHD-Auflösung von 1920×1080 und einer Pixeldichte von 141 PPI für detailreiche industrielle Bildgebung

  • 500 cd/m² Helligkeit mit 1000:1 Kontrastverhältnis für klare Sichtbarkeit bei starker Umgebungsbeleuchtung

  • AHVA-Weitwinkeltechnologie mit Betrachtungswinkeln von 89/89/89/89 für konsistente Bildtreue bei mehreren Betrachtern

  • 99% sRGB-Farbraumabdeckung (CIE 1931) für präzise Farbwiedergabe in professionellen Überwachungs- und Bildgebungssystemen

  • Breiter Betriebstemperaturbereich von -20°C bis 70°C, validiert für anspruchsvolle Industrie- und Außenumgebungen

  • 2-Kanal 8-Bit LVDS-Schnittstelle für stabile, störunempfindliche Signalübertragung bei der Integration in eingebettete Systeme

  • Schlankes mechanisches Profil von 8,3 mm mit einer Mindestlebensdauer der Hintergrundbeleuchtung von 50.000 Stunden für langfristigen, wartungsarmen Betrieb

  • Typische Leistungsaufnahme von 12,5 W bei 12,0±1,2 V Eingangsspannung zur Vereinfachung des Stromversorgungsdesigns

Anwendungen

  • Industrielle Steuerungssysteme und Mensch-Maschine-Schnittstellen (HMI)

  • Medizintechnische Bildgebungs- und Diagnoseüberwachungsgeräte

  • Fabrikautomatisierung und Prozessleitanzeigen

  • Öffentliche Informationsterminals und Digital-Signage-Systeme

  • Anzeigen für Prüf- und Messgeräte

  • Informationsdisplays für Transportwesen, Luftfahrt und Marine

  • Professionelle Broadcast-, Überwachungs- und Sicherheitssysteme

  • Robuste tragbare Computer- und Feldeinsatzterminals

Häufig gestellte Fragen

A: Das G156HAN02.1 liefert eine Full-HD-Auflösung von 1920(RGB)×1080 bei einer Pixeldichte von 141 PPI. In Kombination mit der AHVA-Technologie, einer 99% sRGB-Farbraumabdeckung (CIE 1931) und einem Kontrastverhältnis von 1000:1 erzeugt das Panel gestochen scharfe, farbgenaue Bilder, die sich für professionelle Bildgebungsanwendungen eignen.

Q1: Welche Auflösung und Bildqualität bietet das G156HAN02.1?

A: Das G156HAN02.1 ist für einen Betriebstemperaturbereich von -20°C bis 70°C und einen Lagertemperaturbereich von -20°C bis 70°C ausgelegt und ermöglicht so einen zuverlässigen Einsatz in thermisch anspruchsvollen Industrieumgebungen.

Q2: Welche Betriebs- und Lagertemperaturbereiche sind für dieses Panel spezifiziert?

A: Das Panel integriert eine 2-Kanal 8-Bit LVDS-Schnittstelle (Low-Voltage Differential Signaling), die eine stabile, hochgeschwindigkeits Datenübertragung mit hoher Störfestigkeit für industrielle Embedded-Plattformen bietet.

Q3: Welchen Display-Schnittstellenstandard unterstützt das G156HAN02.1?

A: Das G156HAN02.1 bietet eine typische Helligkeit von 500 cd/m² und eine Mindestlebensdauer der Hintergrundbeleuchtung von 50.000 Stunden und unterstützt somit den langfristigen Einsatz sowohl in Innenräumen als auch in Industrieumgebungen mit starker Umgebungsbeleuchtung.

Q4: Welche Helligkeit und Lebensdauer der Hintergrundbeleuchtung sind bei diesem Display zu erwarten?

A: Das Panel verfügt über eine aktive Fläche von 344,16 × 193,59 mm, eine typische Profildicke von 8,3 mm (maximal 9,3 mm) sowie ein typisches Gewicht von 600 g (maximal 660 g) und ermöglicht so die Integration in kompakte Industriegehäuse.

Q5: Welche mechanischen Abmessungen und welches Gewicht hat das G156HAN02.1?

A: Ja, die AHVA-Technologie bietet Betrachtungswinkel von 89/89/89/89 (CR≥10) und gewährleistet eine konsistente Farb- und Kontrastleistung aus nahezu jeder Blickrichtung – ein entscheidender Faktor für gemeinsam genutzte Industriearbeitsplätze und Leitstände.

Q6: Unterstützt dieses Panel weite Betrachtungswinkel für Umgebungen mit mehreren Bedienern?

A: Das Panel nimmt bei einer Standard-Eingangsspannung von 12,0±1,2 V eine typische Leistung von 12,5 W auf und ermöglicht so ein effizientes Thermodesign sowie eine vereinfachte Auswahl des Netzteils für Embedded-Systemintegratoren.

Q7: Wie hoch ist die typische Leistungsaufnahme des G156HAN02.1?

Produktvergleich
Modell:
Größe:
Entschließung:
Helligkeit:
Kontrastverhältnis:
Betrachtungswinkel:
Lampentyp:
Signalschnittstelle:
Panel-Typ:
G156HAN02.1 AUO 15,6 Zoll FHD LCD Panel LVDS Display

G156HAN02.1 AUO 15,6 Zoll FHD LCD Panel LVDS Display

G156HAN02.1

1920(RGB)×1080, FHD 141PPI
500 cd/m² (Typ.)
1000:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED , 50K hours , With LED Driver
LVDS (2 ch, 8-bit) , 30 pins Connector
a-Si TFT-LCD, LCM

G156HAN02.5

1920*1080
500 cd/m²
1000:1
89/89/89/89
WLED , 50K hours , With LED Driver
eDP (2 Lanes) , Connector 30 pins
a-Si TFT-LCD, LCM

G156HAN02.2

1920(RGB)×1080, FHD 141PPI
400 cd/m² (Typ.)
1000:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED [2S3P] , 10K hours , W/O Driver
eDP (2 Lanes) , 40 pins Connector
a-Si TFT-LCD, LCM

G156HAN02.0

1920(RGB)×1080, FHD 141PPI
500 cd/m² (Typ.)
1000 : 1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED , 50K hours , With LED Driver
eDP (2 Lanes) , 30 pins Connector
a-Si TFT-LCD, LCM
