AUO G156HAB02.5 15.6 "FHD Laptop LCD Bildschirm 1920x1080 30-Pin Ersatz
AUO G156HAB02.5 15.6 "FHD Laptop LCD Bildschirm 1920x1080 30-Pin Ersatz
Der Preis: €113.17
€108.65/ Mitglied
In den Warenkorb
AUO G156HAB02.5 15.6 "FHD Laptop LCD Bildschirm 1920x1080 30-Pin Ersatz

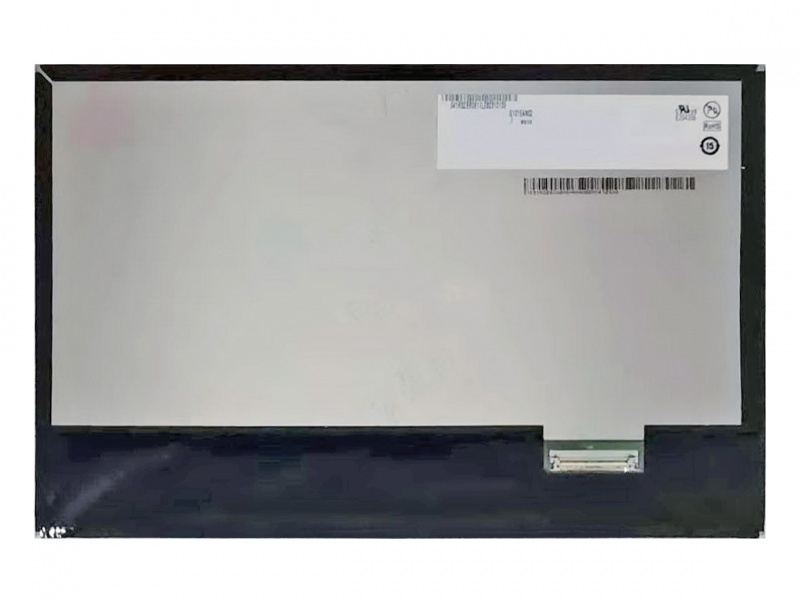

AUO G156HAB02.5 15.6 inch FHD laptop LCD screen 1920x1080 front view
AUO G156HAB02.5 15.6 inch FHD laptop LCD screen 1920x1080 front view

AUO G156HAB02.5 15.6 "FHD Laptop LCD Bildschirm 1920x1080 30-Pin Ersatz

Der Preis: €113.17
€108.65/ Mitglied
Lieferung:
Zahlung:
Berechnung der fracht
Erforderlich:*
Produktmodell* Zielpreis Qty *
Nachricht
Ihre Kontaktdaten: Weitere Informationen:
Name: *
Herr. Frau.
1. Angebot mit Versand Fracht?
Email : *
JA NEIN
Telefon: 2. Welchen Carrier perfert ihr??
Unternehmen:
Fedex UPS DHL
TNT andere
Land:*

AUO G156HAB02.5 15.6 "FHD Laptop LCD Bildschirm 1920x1080 30-Pin Ersatz

Produktinformationen Produktspezifikationen
Modell:
G156HAB02.5
Marke:
AUO
Anwendung:
Industrie
Größe:
Entschließung:
1920(RGB)×1080, FHD 141PPI
Kontrastverhältnis:
800 : 1 (Typ.) (TM)
Betrachtungswinkel:
89/89/89/89 (Typ.)(CR≥10)
Lampentyp:
WLED , 50K hours , With LED Driver
Signalschnittstelle:
eDP (2 Lanes) , eDP1.2
Panel-Typ:
a-Si TFT-LCD, LCM
Bestellanleitung
Qualität:
test ok before ship it
Größe:
RMA 6 month
Entschließung:
Paid Sample
Lagerbestand:
115
Betrachtungswinkel:
China
Lampentyp:
WorldWide
Signalschnittstelle:
1-3 Days
Gewicht:
2.500 KG
Übersicht

Produktübersicht

DieAUO G156HAB02.5ist eine premium15,6-Zoll FHD TFT-LCD laptop Bildschirm ErsatzEntwickelt für atemberaubende visuelle Klarheit und lebendige Farbwiedergabe. Lieferung eines crispFull HD-Auflösung von 1920×1080 Pixeln (1080p)bei60HzDieses display verfügt über fortschrittliche Weitbetrachtungswinkeltechnologie, die gleichbleibende Farben auch bei seitlicher Betrachtung gewährleistet. Entworfen mit einem standard30-polige EDP-SchnittstelleUnd WLED-Hintergrundbeleuchtung, dient es als perfekter direkter Plug-and-Play-Ersatz für rissige Bildschirme in Gaming-Laptops, ultrabooks und ist sehr beliebt bei DIY-Enthusiasten, die benutzerdefinierte tragbare Monitore bauen. beiZYLCDShop, garantieren wir authentische AUO-Panels mit strengen Dead-Pixel-Tests.

Technische Spezifikationen

SpezifikationDetails
ModellnummerG156HAB02.5
MarkeAUO
Bildschirmgröße15,6 Zoll (diagonal)
Auflösung1920 (RGB) ×1080 Pixel (FHD/1080p)
Aktualisierungsrate60Hz
Schnittstelle30-poliger eDP (eingebetteter DisplayPort)
HintergrundbeleuchtungstypWLED (weiße LED)
Betrachtungswinkel85/85/85/85 (Typ. CR> 10, breiter Betrachtungswinkel)
OberflächenbehandlungAnti-Glare (matt) /harte Beschichtung (bitte original überprüfen)
ZustandOriginal/neu Ersatz

Kompatibilität & Anwendungen

DieAUO G156HAB02.5 15,6-Zoll-FHD-LCD-PanelWird weit verbreitet als genaues Ersatzteil oder upgrade für:

  • Laptop-Marken:Kompatibel mit den meisten 15,6-Zoll-FHD-Modellen von ASUS, Acer, Dell, HP, Lenovo und MSI, die einen 30-poligen EDP-Anschluss verwenden.

  • DIY tragbare Monitore:Die hervorragende Farbwiedergabe und die weiten Betrachtungswinkel machen es zu einer Top-Wahl für Hobbyisten, die benutzerdefinierte USB-C tragbare Gaming-oder Arbeitsmonitore bauen.

  • Bildschirm Reparatur:Ideal zum Ersetzen von Bildschirmen mit physischen Rissen, Tintenbluten, toten Pixeln, vertikalen/horizontalen Linien oder Hintergrundbeleuchtungsfehlern.

⚠ ️ (Wichtiger Hinweis: AUO produziert mehrere Versionen dieses Panels (z. B.,. 0,. 2,. 5). Bitte zerlegen Sie die Lünette Ihres Laptops und überprüfen Sie den genauen Aufkleber mit der Modellnummer auf der Rückseite Ihres kaputten Bildschirms, um sicherzustellen, dass es übereinstimmtG156HAB02.5. Überprüfen Sie, ob Ihr Kabel30-poliger eDPvor dem Kauf.)

Warum bei ZYLCDShop kaufen?

  • Authentische AUO-Paneele:Wir liefern 100% echte AUO Laptop-Bildschirme, die Fabrikstandard-Helligkeit und perfekte Farbkalibrierung gewährleisten.

  • Zero Dead Pixel Garantie:Jedes G156HAB02.5 panel wird eingeschaltet und vor dem Versand streng auf Pixelperfektion getestet.

  • Anti-Shatter-Verpackung:Wir verwenden maßgeschneiderten EPE-Schaum, Blasenfolie und starre, robuste Kartonboxen, um eine sichere globale Ankunft zu garantieren.

  • Einfache Installation:Der Standard-30-polige EDP-Anschluss sorgt für ein echtes Plug-and-Play-Erlebnis ohne Löten oder Kabeländerungen.

Häufig gestellte Fragen (FAQ)

F: Woher weiß ich, ob das G156HAB02.5 für meinen laptop passt?

A: Der beste Weg besteht darin, die Bildschirmlünette Ihres Laptops vorsichtig zu entfernen und sich den Aufkleber auf der Rückseite Ihres aktuellen kaputten Bildschirms anzusehen. Wenn es G156HAB02.5 (oder ein kompatibles Cross-Reference-Modell) steht und einen 30-poligen EDP-Anschluss verwendet, passt es perfekt.

F: Warum ist die Versionsnummer (. 5) so wichtig?

A: AUO aktualisiert häufig panels mit unterschiedlichen Befestigungshalterungspositionen (obere/untere vs. seitliche Laschen) oder geringfügigen Lünettendickenvariationen. Stellen Sie sicher, dass Sie das genaue kaufen.5version garantiert, dass die Schraubenlöcher perfekt mit Ihrem Laptop-Deckel ausgerichtet sind.

F: Kann ich diesen Bildschirm verwenden, um einen tragbaren DIY-Monitor zu bauen?

A: Ja! Der G156HAB02.5 ist in der DIY-Community sehr beliebt. Sie können es einfach mit einem Standard-15,6-Zoll-HDMI/Typ-C-LCD-Controller-Board (Treiberboard) kombinieren, um ein hochwertiges tragbares FHD-Display zu erstellen.

F: Bieten Sie Großhandelspreise für Computerreparaturwerkstätten an?

A: Absolut. ZYLCDShop unterstützt B2B-Kunden, Reparaturzentren und Renovierungsbetriebe. Bitte kontaktieren Sie unser Vertriebsteam für Volumenrabatte und schnelle Massenversandoptionen auf 15,6-Zoll-Laptop-Bildschirme.

Produktvergleich
Modell:
Größe:
Entschließung:
Helligkeit:
Kontrastverhältnis:
Betrachtungswinkel:
Lampentyp:
Signalschnittstelle:
Panel-Typ:
AUO G156HAB02.5 15.6 "FHD Laptop LCD Bildschirm 1920x1080 30-Pin Ersatz

AUO G156HAB02.5 15.6 "FHD Laptop LCD Bildschirm 1920x1080 30-Pin Ersatz

G156HAB02.5

1920(RGB)×1080, FHD 141PPI
800 : 1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED , 50K hours , With LED Driver
eDP (2 Lanes) , eDP1.2
a-Si TFT-LCD, LCM

G156HAB02.0

.
a-Si TFT-LCD, LCM

G156HAB02.4

1920(RGB)×1080, FHD 141PPI
400 cd/m² (Typ.)
800:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED , 50K hours , With LED Driver
eDP (2 Lanes) , eDP1.2 , 40 pins Connector
a-Si TFT-LCD, LCM
LCD-Anzeige G170EG01 V104 17 Zoll 1280 *1024 AUO industrieller Bildschirm

LCD-Anzeige G170EG01 V104 17 Zoll 1280 *1024 AUO industrieller Bildschirm

G156HAB02.1

1920(RGB)×1080, FHD 141PPI
800:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED , 50K hours , With LED Driver
eDP (2 Lanes) , eDP1.2 , 40 pins Connector
a-Si TFT-LCD, Assembly
G156HAB02.5 is a 15.6" a-Si TFT-LCD, LCM Display screen Product from AUO.According to AUO's product specification sheet,G156HAB02.5 display has a resolution of 1920(RGB)×1080, FHD 141PPI, Contrast Ratio is 800 : 1 (Typ.) (TM),Viewing Angle is 89/89/89/89 (Typ.)(CR≥10),Lamp Type is WLED , 50K hours , With LED Driver,Signal Interface is eDP (2 Lanes) , eDP1.2,Brightness is .Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of G156HAB02.5 after packaging is 2.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
