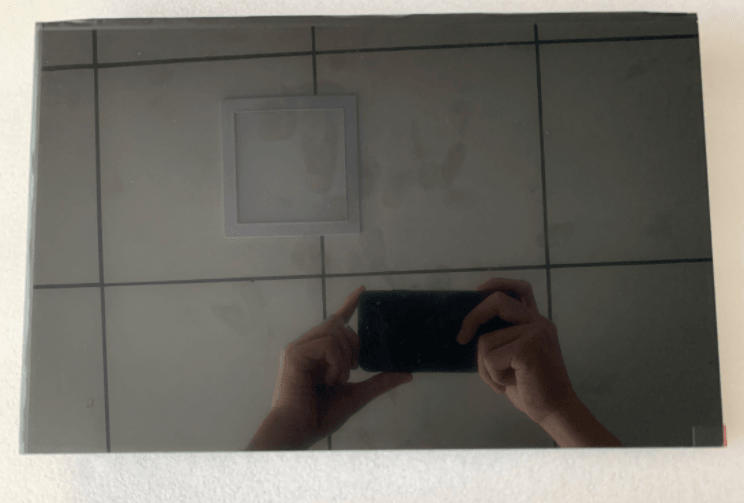

g154jce-l01  Innolux  15.4  inch panel lcd
g154jce-l01 Innolux 15.4 inch panel lcd
Price: $175.00
$168.00/ piece
Add to cart
g154jce-l01  Innolux  15.4  inch panel lcd
g154jce-l01  Innolux  15.4  inch panel lcd
g154jce-l01  Innolux  15.4  inch panel lcd
g154jce-l01  Innolux  15.4  inch panel lcd

g154jce-l01 Innolux 15.4 inch panel lcd

Price: $175.00
$168.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

g154jce-l01 Innolux 15.4 inch panel lcd

Product Information Product Specifications
Model:
g154jce-l01
Brand:
INNOLUX
Application:
Industrial
Size:
15.4"
Resolution:
1920(RGB)×1200, WUXGA 147PPI
Brightness:
800 (Typ.)(cd/m²)
Contrast Ratio:
1400 : 1 (Typ.) (TM)
Viewing Angle:
88/88/88/88 (Typ.)(CR≥10)
Lamp Type:
WLED , 40K hours , With LED Driver
Signal Interface:
FPD-Link III , 6 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
115
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
2.500 KG
Overview

Product Introduction

The Innolux G154JCE-L01 is a 15.4-inch industrial TFT-LCD panel designed for demanding B2B applications. It features a 1920 × 1200 WUXGA resolution, 800-nit brightness, 1400:1 typical contrast ratio, and wide 88° viewing angles. The transmissive, normally black AAS display operates from -40°C to 85°C and is backed by a WLED backlight rated for a minimum lifetime of 40,000 hours. With a 12.0V typical input voltage and typical power consumption of 21.6W, the panel is suitable for industrial equipment requiring consistent visual performance across a broad temperature range.

Key Features

  • 4-inch a-Si TFT-LCD LCM with 1920 × 1200 WUXGA resolution

  • 800-nit brightness for clear visibility in industrial environments

  • 1400:1 typical contrast ratio on a transmissive, normally black AAS display

  • Wide 88° viewing angles across all four directions

  • 100% sRGB coverage based on CIE 1931 colorimetry

  • 7M color depth using 8-bit color

  • 60Hz refresh rate

  • Broad operating temperature range of -40°C to 85°C

  • WLED backlight with a minimum lifetime of 40,000 hours

  • 0V typical operating voltage

  • Power consumption of 21.6W typical and 24.0W maximum

  • Compact 341.12 × 219.14 mm outline with a 330.624 × 206.64 mm active area

  • Panel weight of 1.01 ± 0.04 kg

Technical Specifications

Panel ModelG154JCE-L01
Panel Typea-Si TFT-LCD, LCM
Display Size15.4
Resolution1920(RGB)×1200, WUXGA
Pixel Pitch0.0574×0.1722 mm (H×V)
Application FieldIndustrial
Operating Temperature-40 ~ 85 °C
Storage Temperature-40 ~ 95 °C
Brightness800
Contrast Ratio1400:1 (Typ.) (Transmissive)
Response Time13/12 (Typ.)(Tr/Td) ms
Viewing Angle88/88/88/88 (Typ.)(CR≥10)
Color Depth16.7M (8-bit)
Color Temperature6485K
Display ModeAAS, Normally Black, Transmissive
Refresh Rate60Hz
sRGB Coverage100% coverage (CIE 1931)
Outline Dimension341.12×219.14 mm (H×V)
Active Area330.624×206.64 mm (H×V)
Weight1.01±0.04Kgs
Voltage12.0V (Typ.)
Power Consumption21.6/24.0W (Typ./Max.)
Backlight TypeWLED
Backlight Lifetime40K (Min.) hrs
InterfaceFPD-Link III Logic Voltage -

Applications

  • Industrial control and monitoring systems

  • Industrial automation equipment

  • Machine vision and inspection systems

  • Process-control displays

  • Diagnostic and testing equipment

  • Commercial and professional display systems requiring wide operating temperatures

Frequently Asked Questions

Q1: What is the native resolution of the Innolux G154JCE-L01?

A: The panel has a native resolution of 1920 × 1200 pixels, supporting WUXGA display content.

Q2: What type of display and backlight does the G154JCE-L01 use?

A: It uses an a-Si TFT-LCD LCM with a transmissive, normally black AAS display mode and a WLED backlight.

Q3: What is the brightness and contrast ratio of the panel?

A: The G154JCE-L01 provides 800-nit brightness and a typical contrast ratio of 1400:1.

Q4: What operating temperature range does the industrial panel support?

A: The operating temperature range is -40°C to 85°C. Its specified storage temperature range is -40°C to 95°C.

Q5: What are the viewing angles and color coverage?

A: The typical viewing angles are 88° in each direction. The panel supports 100% sRGB coverage according to CIE 1931 and displays 16.7M colors at 8-bit color depth.

Q6: How is the G154JCE-L01 powered, and how much power does it consume?

A: The panel operates at a typical voltage of 12.0V and consumes 21.6W typically, with a maximum of 24.0W.

Q7: What is the expected backlight lifetime?

A: The WLED backlight has a specified minimum lifetime of 40,000 hours.

Q8: What are the panel's physical dimensions and weight?

A: The outline dimensions are 341.12 × 219.14 mm, the active area is 330.624 × 206.64 mm, and the panel weight is 1.01 ± 0.04 kg.
