G150XVN01.0 15 Zoll AUO LCD Display Panel XGA
G150XVN01.0 15 Zoll AUO LCD Display Panel XGA
Der Preis: €81.49
€77.86/ Mitglied
In den Warenkorb
G150XVN01.0 15 Zoll AUO LCD Display Panel XGA

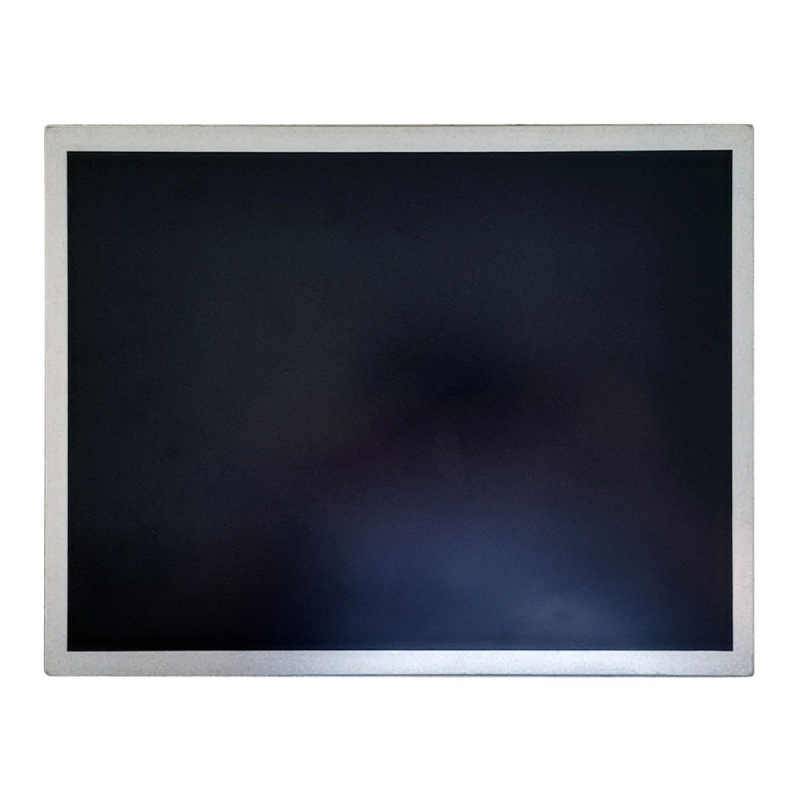

AUO G150XVN01.0 15 inch XGA LCD screen front view
AUO B150XG01 compatible screen
AUO G150XVN01.0 15 inch XGA LCD screen front view
AUO B150XG01 compatible screen

G150XVN01.0 15 Zoll AUO LCD Display Panel XGA

Der Preis: €81.49
€77.86/ Mitglied
Lieferung:
Zahlung:
Berechnung der fracht
Erforderlich:*
Produktmodell* Zielpreis Qty *
Nachricht
Ihre Kontaktdaten: Weitere Informationen:
Name: *
Herr. Frau.
1. Angebot mit Versand Fracht?
Email : *
JA NEIN
Telefon: 2. Welchen Carrier perfert ihr??
Unternehmen:
Fedex UPS DHL
TNT andere
Land:*

G150XVN01.0 15 Zoll AUO LCD Display Panel XGA

Produktinformationen Produktspezifikationen
Modell:
G150XVN01.0
Marke:
AUO
Anwendung:
Industrie
Größe:
Entschließung:
1024(RGB)×768, XGA 85PPI
Helligkeit:
300 cd/m² (Typ.)
Kontrastverhältnis:
1500 : 1 (Typ.) (TM)
Betrachtungswinkel:
89/89/89/89 (Typ.)(CR≥10)
Lampentyp:
WLED , 50K hours , With LED Driver
Signalschnittstelle:
LVDS (1 ch, 6/8-bit) , 30 pins Connector
Panel-Typ:
a-Si TFT-LCD, LCM
Bestellanleitung
Qualität:
test ok before ship it
Größe:
RMA 6 month
Entschließung:
Paid Sample
Lagerbestand:
115
Betrachtungswinkel:
China
Lampentyp:
WorldWide
Signalschnittstelle:
1-3 Days
Gewicht:
2.500 KG
Übersicht

Produkteinführung

Das AUO G150XVN01.0 ist ein 15 Zoll großes a-Si TFT-LCD Industrieanzeigentieweist, das für den zuverlässigen Einsatz in anspruchsvollen B2B-Umgebungen entwickelt wurde. Es vereint eine XGA-Auflösung von 1024×768 RGB-Pixeln mit MVA-Normally-Black-Technologie und bietet damit breite Betrachtungswinkel sowie ein starkes Kontrastverhältnis – ideal für missionskritische Mensch-Maschine-Schnittstellen. Mit einer typischen Helligkeit von 300 cd/m², einem Kontrastverhältnis von 1500:1 und einer sRGB-Abdeckung von 92 % (CIE 1931) gewährleistet das Panel eine konsistente Farbgenauigkeit und Bildklarheit unter unterschiedlichen Lichtbedingungen. Die LED-Hintergrundbeleuchtung mit einer Lebensdauer von 50.000 Stunden, die LVDS-1-Kanal-Schnittstelle und der breite Betriebstemperaturbereich von -10 °C bis 70 °C ermöglichen den langfristigen Einsatz in der Fabrikautomatisierung, Prozessleittechnik und in robusten Feldgeräten. Die kompakte mechanische Außenabmessung von 326,5×253,5 mm sowie die standardisierte elektrische Schnittstelle erleichtern die Integration in platzbeschränkte Industrieausführungen.

Wichtige Merkmale

  • 15 Zoll a-Si TFT-LCD LCM-Panel von AUO, gefertigt für Industrieanwendungen mit hoher Zuverlässigkeit und langem Produktlebenszyklus

  • XGA-Auflösung von 1024×768 RGB mit 0,297 mm Pixelpitch für eine scharfe Bilddarstellung in Steueroberflächen

  • MVA-Normally-Black-Anzeigemodus mit weiten Betrachtungswinkeln und hohem Kontrastverhältnis von 1500:1 für gute Lesbarkeit

  • Typische Leuchtdichte von 300 cd/m², 92 % sRGB-Abdeckung (CIE 1931) sowie Unterstützung von 262K/16,2M Farben über 6-Bit oder 6-Bit + FRC

  • Breiter Betriebstemperaturbereich von -10 °C bis 70 °C und Lagertemperaturbereich von -30 °C bis 70 °C für raue Industrieumgebungen

  • Typische Lebensdauer der Hintergrundbeleuchtung von 50.000 Stunden, wodurch die Wartungsintervalle im Langzeiteinsatz reduziert werden

  • LVDS-1-Kanal-Schnittstelle mit Unterstützung von 6/8-Bit-Logik für eine unkomplizierte Systemintegration und hohe Signalstörfestigkeit

  • Eingangsspannung 12,0±1,2 V bei typischer Leistungsaufnahme von 13,75 W, kompakte Außenabmessung von 326,5×253,5 mm und maximales Gewicht von 950 g

Anwendungen

  • Industrielle Mensch-Maschine-Schnittstellen (HMI)

  • Fabrikautomatisierung und Produktionsleitsysteme

  • Prozessleitsysteme und Überwachungsgeräte

  • Medizintechnische Diagnosegeräte und Laborinstrumente

  • Prüf- und Messtechnik

  • Verkehrsleitsysteme und Bahninformationssysteme

  • Kiosk- und Self-Service-Terminalanzeigen

  • Gebäudeautomation sowie Sicherheits- und Überwachungspanels

  • Energie- und Versorgungsmanagementsysteme

Häufig gestellte Fragen

A: Das G150XVN01.0 nutzt die a-Si TFT-LCD-Technologie im MVA-Normally-Black-Modus und stellt eine XGA-Auflösung von 1024×768 RGB-Pixeln bereit. Es bietet eine stabile Bildqualität mit breiten Betrachtungswinkeln und eignet sich damit für industrielle Schnittstellen.

Q1: Welche Anzeigetechnologie und Auflösung verwendet das AUO G150XVN01.0?

A: Das Panel arbeitet in einem Bereich von -10 °C bis 70 °C und unterstützt Lagertemperaturen von -30 °C bis 70 °C. Damit ist ein zuverlässiger Einsatz in vielfältigen und thermisch anspruchsvollen Industrieumgebungen gewährleistet.

Q2: Welchen Betriebs- und Lagertemperaturbereich unterstützt das G150XVN01.0?

A: Das Display verfügt über eine LVDS-1-Kanal-Schnittstelle, die mit 6-Bit- oder 8-Bit-Logikeingängen kompatibel ist. Sie ermöglicht eine störfeste Signalübertragung, wie sie für industrielle Systemauslegungen benötigt wird.

Q3: Welche Signalschnittstelle unterstützt das G150XVN01.0?

A: Das G150XVN01.0 erreicht eine typische Helligkeit von 300 cd/m², ein Kontrastverhältnis von 1500:1 (transmissiv), eine sRGB-Farbraumabdeckung von 92 % (CIE 1931) und unterstützt 262K oder 16,2M Farben über 6-Bit- oder 6-Bit + FRC-Konfigurationen.

Q4: Wie lauten die optischen Leistungsdaten des G150XVN01.0?

A: Die integrierte Hintergrundbeleuchtung bietet eine typische Betriebslebensdauer von 50.000 Stunden. Das Panel benötigt eine DC-Versorgung von 12,0±1,2 V und hat unter Standardbetriebsbedingungen eine typische Leistungsaufnahme von 13,75 W.

Q5: Welche Lebensdauer der Hintergrundbeleuchtung und welche Stromversorgung benötigt das G150XVN01.0?

A: Das Panel hat Außenabmessungen von 326,5×253,5 mm, eine aktive Anzeigefläche von 304,128×228,096 mm und ein maximales Gewicht von 950 g. Damit lässt es sich problemlos in standardisierte Industriegehäuse integrieren.

txtmore

Q6: Welche mechanischen Abmessungen und welches Gewicht hat das G150XVN01.0?

Produktvergleich
Modell:
Größe:
Entschließung:
Helligkeit:
Kontrastverhältnis:
Betrachtungswinkel:
Lampentyp:
Signalschnittstelle:
Panel-Typ:
G150XVN01.0 15 Zoll AUO LCD Display Panel XGA

G150XVN01.0 15 Zoll AUO LCD Display Panel XGA

G150XVN01.0

1024(RGB)×768, XGA 85PPI
300 cd/m² (Typ.)
1500 : 1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED , 50K hours , With LED Driver
LVDS (1 ch, 6/8-bit) , 30 pins Connector
a-Si TFT-LCD, LCM
CMO G150X1-L01 15.0 "1024x768 XGA Industrial TFT LCD Panel (Innolux kompatibel)

CMO G150X1-L01 15.0 "1024x768 XGA Industrial TFT LCD Panel (Innolux kompatibel)

g150x1-l01

1024(RGB)×768, XGA 85PPI
450 cd/m² (Typ.)
700:1 (Typ.) (TM)
80/80/80/80 (Typ.)(CR≥10)
CCFL [2 pcs] , 50K hours , W/O Driver
LVDS (1 ch, 8-bit) , 20 pins Connector
a-Si TFT-LCD, LCM

g150xge-l06

1024(RGB)×768, XGA 85PPI
250 cd/m² (Typ.)
700:1 (Typ.) (TM)
45/45/25/45 (Typ.)(CR≥10)
WLED , 30K hours , With LED Driver
LVDS (1 ch, 6/8-bit) , 20 pins Connector
a-Si TFT-LCD, LCM
LCD-Anzeige G170EG01 V104 17 Zoll 1280 *1024 AUO industrieller Bildschirm

LCD-Anzeige G170EG01 V104 17 Zoll 1280 *1024 AUO industrieller Bildschirm

G150XVN01.1

1024(RGB)×768, XGA 85PPI
300 cd/m² (Typ.)
1500:1 (Typ.) (TM)
85/85/85/85 (Typ.)(CR≥10)
WLED , 30K hours , With LED Driver
LVDS (1 ch, 6/8-bit) , 30 pins Connector
a-Si TFT-LCD, LCM
