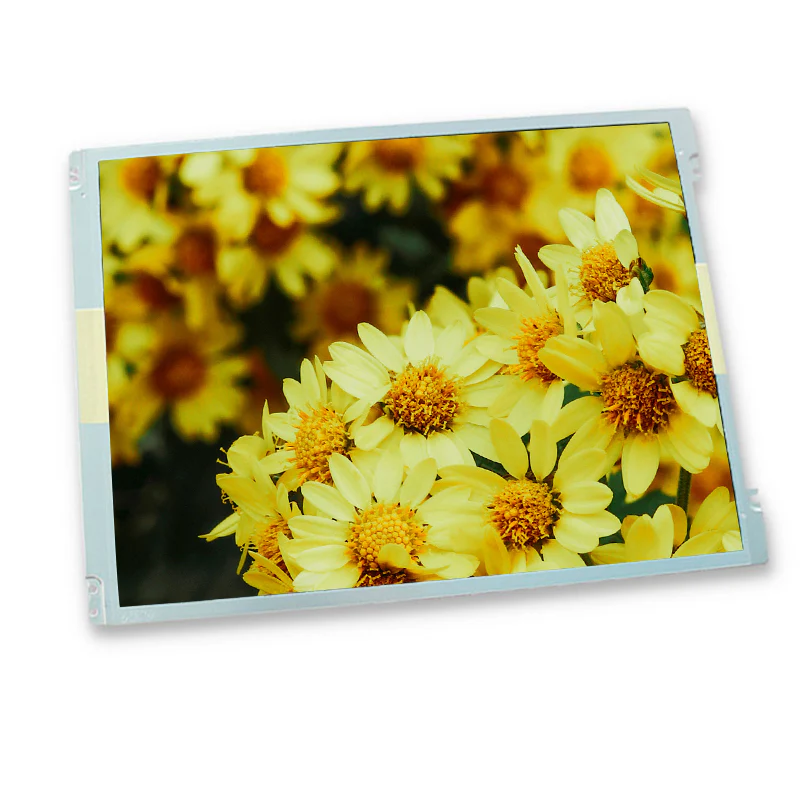

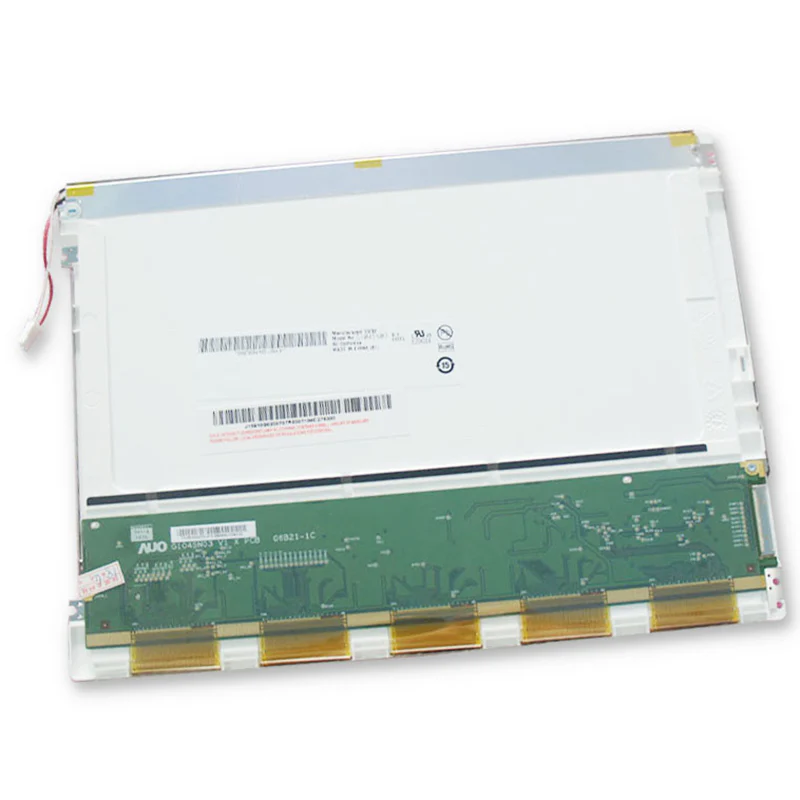

AUO G104SN03 V1 10.4-Inch LCD Display Panel 800×600 TFT-LCD Module
The AUO G104SN03 V1 is a high-reliability 10.4-inch industrial TFT-LCD display module designed for long-term operation in demanding industrial environments. Featuring 800 × 600 SVGA resolution, 230 cd/m² brightness, and a 20-pin LVDS interface, this display delivers stable image performance and dependable operation for industrial control systems, HMI equipment, medical devices, test instruments, and embedded applications.
Manufactured by AU Optronics, the G104SN03 V1 incorporates proven TFT-LCD technology that provides excellent display stability, low power consumption, and long service life, making it an ideal replacement panel for existing equipment or new industrial product development.
10.4-inch industrial-grade TFT-LCD display
Native resolution: 800 × 600 (SVGA)
Typical brightness: 230 cd/m²
LVDS signal interface for industrial integration
Wide viewing angles for improved visibility
Anti-glare surface treatment
Low power consumption design
Industrial operating temperature range
Long lifecycle support for equipment maintenance
Suitable for continuous operation environments
Technical Specifications
| Specification | Details |
|---|---|
| Model | G104SN03 V1 |
| Manufacturer | AUO |
| Display Size | 10.4 Inch |
| Resolution | 800 × 600 (SVGA) |
| Display Technology | a-Si TFT-LCD |
| Brightness | 230 cd/m² |
| Contrast Ratio | 500:1 |
| Interface | LVDS |
| Active Area | 211.2 × 158.4 mm |
| Input Voltage | 3.3V |
| Surface Treatment | Anti-Glare, Hard Coating |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
The AUO G104SN03 V1 LCD module is widely used in:
Industrial automation control systems
Human Machine Interface (HMI) terminals
CNC machinery and machine tools
Medical monitoring equipment
Factory automation displays
Test and measurement instruments
Embedded computing systems
Energy and power control equipment
Transportation control systems
Industrial replacement and maintenance projects
Why Choose the G104SN03 V1?
Industrial applications require displays that offer long-term reliability and stable performance. The G104SN03 V1 combines proven AUO display technology with industrial-grade durability, making it a dependable solution for OEMs, system integrators, maintenance engineers, and equipment manufacturers seeking a reliable 10.4-inch TFT display replacement. Its SVGA resolution, LVDS connectivity, and industrial temperature tolerance help ensure consistent operation in demanding environments.
Original industrial LCD panel
Tested before shipment
Secure anti-static packaging
Global shipping available
Technical support for panel replacement and integration
Bulk order and OEM procurement support
Yes. The G104SN03 V1 is designed for industrial equipment and supports operation in demanding environments with a wide temperature range and stable TFT-LCD performance.
The display provides a native resolution of 800 × 600 pixels (SVGA).
The panel uses an LVDS interface, allowing integration with many industrial controllers and embedded systems.
Yes. The G104SN03 V1 is commonly used as a replacement panel in industrial automation equipment, HMI terminals, and control systems. Compatibility should be verified based on interface, mounting dimensions, and power requirements.
