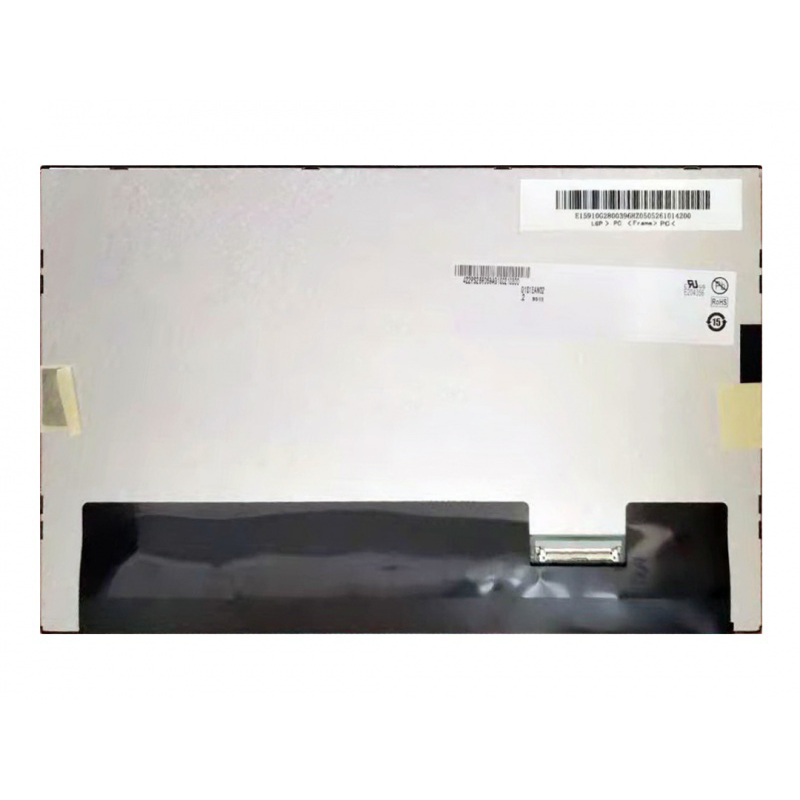

Innolux G101ICE-L01 10.1" TFT LCD Display Panel WXGA 1280x800
Innolux G101ICE-L01 10.1" TFT LCD Display Panel WXGA 1280x800
Price: $95.00
$90.00/ piece
Add to cart
Innolux G101ICE-L01 10.1" TFT LCD Display Panel WXGA 1280x800
Innolux G101ICE-L01 10.1 inch WXGA TFT LCD display panel
Innolux G101ICE-L01 10.1" TFT LCD Display Panel WXGA 1280x800
Innolux G101ICE-L01 10.1 inch WXGA TFT LCD display panel

Innolux G101ICE-L01 10.1" TFT LCD Display Panel WXGA 1280x800

Price: $95.00
$90.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

Innolux G101ICE-L01 10.1" TFT LCD Display Panel WXGA 1280x800

Product Information Product Specifications
Model:
G101ICE-L01
Brand:
INNOLUX
Application:
Industrial
Size:
10.1"
Resolution:
1280(RGB)×800, WXGA 149PPI
Brightness:
500 cd/m² (Typ.)
Contrast Ratio:
800:1 (Typ.) (TM)
Viewing Angle:
85/85/85/85 (Typ.)(CR≥10)
Lamp Type:
WLED , 50K hours , With LED Driver
Signal Interface:
LVDS (1 ch, 6/8-bit) , 40 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
115
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

Product Overview

The Innolux G101ICE-L01 is a premium 10.1-inch a-Si TFT-LCD display panel engineered for high-performance industrial and commercial applications. Featuring a crisp WXGA resolution of 1280(RGB)×800 pixels and a standard 16:10 widescreen aspect ratio, this LCD module delivers exceptional image clarity, vibrant color reproduction, and wide viewing angles. Designed with durability in mind, it ensures reliable operation even in demanding environments such as factory floors or outdoor kiosks. Whether you need a direct replacement for legacy equipment or are integrating it into new Human Machine Interfaces (HMIs), the genuine Innolux G101ICE-L01 guarantees seamless compatibility and long-term stability. Source your 10.1-inch WXGA LCD screens from ZYLCD Shop for guaranteed authenticity, competitive B2B pricing, and fast global shipping.

Product Features

  • High-Definition Widescreen: The 1280×800 (WXGA) resolution provides sharp text rendering and detailed graphics on a spacious 10.1-inch display area.

  • Industrial-Grade Reliability: Built to withstand continuous operation, offering excellent resistance to temperature variations and mechanical stress.

  • Superior Optical Performance: Advanced a-Si TFT technology combined with LED backlighting ensures high brightness, deep contrast, and energy efficiency.

  • Wide Viewing Angles: Optimized liquid crystal alignment allows multiple operators to view the screen clearly from various positions without color shift.

Technical Specifications

Part NumberG101ICE-L01
ManufacturerInnolux (Chimei)
Diagonal Size10.1 inch
Resolution1280(RGB)×800 (WXGA)
Display Modea-Si TFT-LCD, Normally Black/Transmissive
Aspect Ratio16:10 (Widescreen)
Backlight TypeWLED (White LED)
Interface TypeLVDS (Standard)

Applications

This 10.1-inch WXGA TFT LCD panel is widely utilized across various professional sectors requiring reliable visual interfaces:

  • Industrial HMI (Human Machine Interfaces) & Control Panels

  • Medical Diagnostic Devices & Patient Monitoring Systems

  • Smart Retail POS (Point of Sale) Terminals & Self-service Kiosks

  • Automotive Infotainment & Fleet Management Displays

  • Test & Measurement Equipment

Why Choose ZYLCD Shop?

  • 100% Original Guarantee: We supply only genuine Innolux G101ICE-L01 panels sourced directly from authorized distribution channels.

  • Rigorous Quality Control: Every 10.1-inch LCD screen undergoes strict optical, electrical, and aging tests before dispatch to ensure zero dead pixels.

  • Global Fast Shipping: Professional anti-static packaging combined with DHL/FedEx ensures safe and rapid worldwide delivery.

  • Dedicated Technical Support: Our experienced engineering team is ready to assist with G101ICE-L01 datasheet requests and integration troubleshooting.

Frequently Asked Questions (FAQ)

Q1: Is the Innolux G101ICE-L01 a direct drop-in replacement for my existing 10.1 inch LCD?

The G101ICE-L01 features standard mechanical dimensions and an LVDS interface commonly used in 10.1-inch WXGA displays. However, we strongly recommend verifying your current panel's pin count, connector type, and mounting hole locations against the official G101ICE-L01 datasheet before ordering.

Q2: Do you offer bulk discounts for wholesale Innolux 1280x800 TFT LCD panels?

Absolutely. ZYLCD Shop specializes in B2B supply and provides tiered volume discounts for manufacturers, distributors, and repair centers purchasing the G101ICE-L01 in bulk. Please contact our sales team with your estimated quantity for a custom quotation.

Q3: What is the typical operating temperature range for this 10.1-inch industrial display?

As an industrial-grade TFT-LCD module, the Innolux G101ICE-L01 is designed to operate reliably in extended temperature ranges compared to consumer-grade screens, making it highly suitable for factory automation, outdoor enclosures, and harsh environments.

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
Innolux G101ICE-L01 10.1" TFT LCD Display Panel WXGA 1280x800

Innolux G101ICE-L01 10.1" TFT LCD Display Panel WXGA 1280x800

G101ICE-L01

10.1"
1280(RGB)×800, WXGA 149PPI
500 cd/m² (Typ.)
800:1 (Typ.) (TM)
85/85/85/85 (Typ.)(CR≥10)
WLED , 50K hours , With LED Driver
LVDS (1 ch, 6/8-bit) , 40 pins Connector
a-Si TFT-LCD, LCM
G101ICE-L02       10.1"      lcd      panel      for      Innolux

G101ICE-L02 10.1" lcd panel for Innolux

G101ICE-L02

10.1"
1280(RGB)×800, WXGA 149PPI
500 cd/m² (Typ.)
1000:1 (Typ.) (TM)
85/85/85/85 (Typ.)(CR≥10)
WLED , 50K hours , With LED Driver
LVDS (1 ch, 6/8-bit) 30 pins Connector
a-Si TFT-LCD, LCM
G101ICE-LM1  10.1"  tft display  for  INNOLUX   laptop screen

G101ICE-LM1 10.1" tft display for INNOLUX laptop screen

G101ICE-LM1

10.1"
1280(RGB)×800, WXGA 149PPI
350 cd/m² (Typ.)
800:1 (Min.) (TM)
88/88/88/88 (Typ.)(CR≥10)
WLED , 50K hours , With LED Driver
LVDS (1 ch, 6/8-bit) , 30 pins Connector
a-Si TFT-LCD, LCM
Innolux G101ICE-LH3 10.1 Inch Industrial TFT LCD Display Module

Innolux G101ICE-LH3 10.1 Inch Industrial TFT LCD Display Module

G101ICE-LH3

10.1"
1280(RGB)×800, WXGA 149PPI
500 cd/m² (Typ.)
800:1 (Min.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED , 50K hours , With LED Driver
LVDS (1 ch, 6/8-bit) , 30 pins Connector
a-Si TFT-LCD, LCM
G101ICE-L01 is a 10.1" a-Si TFT-LCD, LCM Display screen Product from INNOLUX.According to INNOLUX's product specification sheet,G101ICE-L01 display has a resolution of 1280(RGB)×800, WXGA 149PPI, Contrast Ratio is 800:1 (Typ.) (TM),Viewing Angle is 85/85/85/85 (Typ.)(CR≥10),Lamp Type is WLED , 50K hours , With LED Driver,Signal Interface is LVDS (1 ch, 6/8-bit) , 40 pins Connector,Brightness is 500 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of G101ICE-L01 after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
