Innolux G057AGE-T01 5.7" 320x240 QVGA Industrial TFT LCD Panel
Innolux G057AGE-T01 5.7" 320x240 QVGA Industrial TFT LCD Panel
Price: $130.00
$125.00/ piece
Add to cart

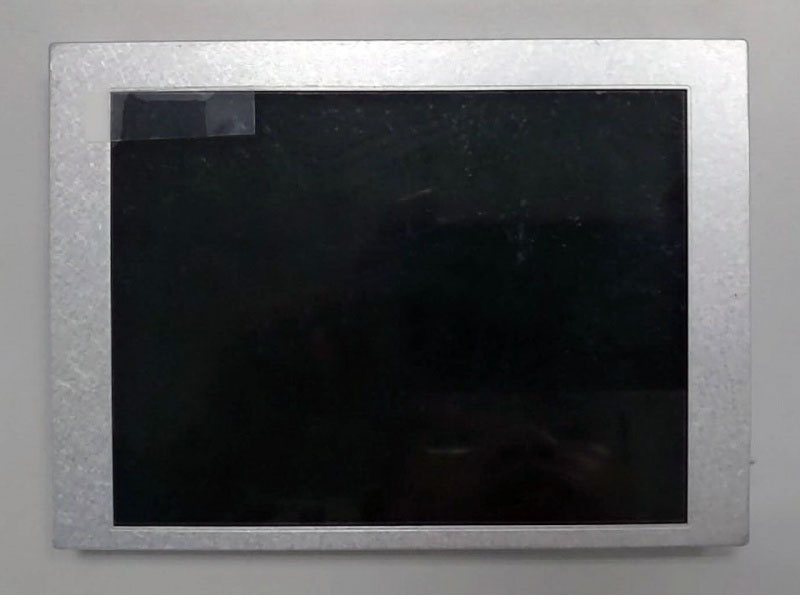

Innolux G057AGE-T01 5.7 inch 320x240 QVGA industrial TFT LCD panel front view
TTL CMOS digital RGB interface connector pins on G057AGE-T01 5.7

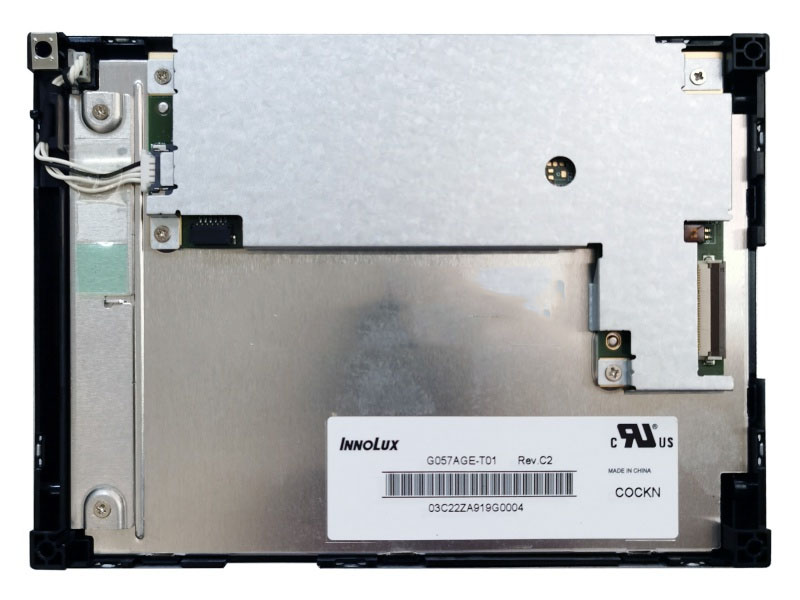

Rear metal chassis and mounting holes of Innolux 5.7 inch QVGA ATM instrument screen
Innolux G057AGE-T01 5.7 inch 320x240 QVGA industrial TFT LCD panel front view
TTL CMOS digital RGB interface connector pins on G057AGE-T01 5.7
Rear metal chassis and mounting holes of Innolux 5.7 inch QVGA ATM instrument screen

Innolux G057AGE-T01 5.7" 320x240 QVGA Industrial TFT LCD Panel

Price: $130.00
$125.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

Innolux G057AGE-T01 5.7" 320x240 QVGA Industrial TFT LCD Panel

Product Information Product Specifications
Model:
g057age-t01
Brand:
INNOLUX
Application:
Industrial
Size:
5.7"
Resolution:
320(RGB)×240, QVGA 70PPI
Brightness:
500 cd/m² (Typ.)
Contrast Ratio:
800 : 1 (Typ.) (TM)
Viewing Angle:
80/80/70/70 (Typ.)(CR≥10)
Lamp Type:
WLED , 50K hours , With LED Driver
Signal Interface:
TTL (1 ch, 6-bit) , 33 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
115
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
0.500 KG
Overview

Product Introduction

The Innolux G057AGE-T01 is a highly cost-effective 5.7-inch TFT LCD panel engineered for high-volume industrial and commercial display applications. Delivering a classic 320x240 (QVGA) resolution in a standard 4:3 aspect ratio, this module provides crisp text rendering and reliable color reproduction for POS terminals, ATM machines, industrial instrumentation, and handheld data devices. Manufactured by Innolux (formerly Chi Mei Optoelectronics / CMO), the G057AGE-T01 leverages one of the world's largest LCD fabrication infrastructures to deliver consistent quality at competitive pricing. As a complete LCM (Liquid Crystal Module), it includes the integrated LED backlight and structural frame, making it a seamless drop-in replacement for aging screens across a wide range of equipment brands. At ZY LCD Shop, we supply genuine Innolux panels directly to repair technicians, POS system integrators, and OEM manufacturers. Every G057AGE-T01 unit undergoes rigorous testing for dead pixels, backlight uniformity, and signal integrity before dispatch. Optimize your maintenance budget today without sacrificing reliability.

Core Product Features

  • Cost-Effective Industrial Reliability: Innolux's massive production scale delivers consistent, high-quality panels at significantly lower cost than premium Japanese brands, ideal for fleet-wide commercial deployments.

  • Chi Mei / CMO Brand Compatibility: Directly replaces older Chi Mei (CMO) 5.7-inch QVGA panels found in legacy POS systems, ATMs, and industrial instruments without hardware modifications.

  • Standard QVGA Resolution: 320x240 pixels provide perfectly scaled rendering for legacy software interfaces, barcode scanner displays, and transaction terminals without UI distortion.

  • Complete LCM Assembly: Supplied as a fully integrated Liquid Crystal Module with built-in WLED backlight and metal bezel, streamlining the repair process for maintenance technicians.

  • Anti-Glare Matte Surface: Specialized hard-coated treatment diffuses ambient light, reducing reflections in brightly lit retail stores, bank lobbies, and factory floors.

  • Universal TTL/CMOS Interface: Standard parallel RGB signaling ensures broad compatibility with a wide variety of embedded controllers, single-board computers, and legacy driver boards.

Technical Specifications

ParameterSpecification Details
Part NumberG057AGE-T01
ManufacturerInnolux (formerly Chi Mei / CMO)
Diagonal Size5.7 Inch
Native Resolution320 x 240 (QVGA)
Aspect Ratio4:3
Panel Technologya-Si TFT-LCD
Pixel Density~70 PPI
Module TypeLCM (Liquid Crystal Module)
Signal InterfaceDigital RGB / TTL / CMOS (Verify Pinout)
Backlight TypeWLED (White LED)
Surface TreatmentAnti-Glare (Matte), Hard Coating
Target ApplicationPOS, ATM, Industrial Instruments, Handheld Terminals

Typical Applications

  • Retail Point of Sale (POS) Cash Registers & Customer-Facing Displays

  • Banking ATM Machines & Self-Service Financial Kiosks

  • Industrial Process Instruments & Panel Meters

  • Handheld Barcode Scanners & Inventory Management Terminals

  • Laboratory Testing Equipment & Data Loggers

  • Vending Machine Interfaces & Ticketing Systems

Why Source from ZY LCD Shop?

  • High-Volume Commercial Specialists: We maintain deep inventory of cost-effective Innolux 5.7-inch QVGA panels required by POS integrators, ATM maintenance companies, and industrial OEMs globally.

  • Chi Mei / CMO Cross-Reference Expertise: Our team can verify whether the G057AGE-T01 is a direct replacement for your specific legacy CMO part number, preventing costly ordering errors.

  • Strict Quality Verification: Every unit is tested for dead pixels, backlight bleeding, and color consistency to guarantee reliable performance in customer-facing commercial environments.

  • Reinforced Transit Packaging: 5.7-inch glass substrates require specialized protection. We use custom EPE foam, anti-static shielding, and reinforced cartons to prevent transit damage.

FAQ (Frequently Asked Questions)

Can I use the Innolux G057AGE-T01 to replace an old Chi Mei (CMO) 5.7" screen?

Yes, absolutely. Innolux acquired Chi Mei Optoelectronics (CMO) and continues manufacturing panels using the same fabrication lines and quality standards. The G057AGE-T01 is the direct successor product lineage. If your original equipment manual specifies a CMO 5.7-inch QVGA TFT module, this Innolux-branded unit is a fully compatible, drop-in replacement with identical mechanical dimensions and electrical characteristics.

What is the difference between this Innolux panel and a Sharp or Kyocera 5.7" QVGA screen?

All three are 5.7-inch QVGA displays, but they serve different market segments. Sharp panels (like the LQ057Q3DG21) are premium-grade with superior color accuracy optimized for medical and CNC applications. Kyocera panels (like the KCS057QV1AJ-G23) use STN monochrome technology for ultra-low-power applications. The Innolux G057AGE-T01 is a full-color TFT panel positioned for cost-effective, high-volume commercial and general industrial use — offering the best balance of performance and price for POS, ATM, and instrumentation deployments.

Is this panel suitable for battery-powered handheld devices?

Yes. The G057AGE-T01 features an efficient WLED backlight system designed for low power consumption. While it may not achieve the ultra-low current draw of specialized STN monochrome displays, it provides excellent battery life for color TFT applications in handheld scanners, portable meters, and mobile data terminals.

Where can I download the G057AGE-T01 datasheet and pinout definition?

We provide the official Innolux PDF datasheet, including precise mechanical outlines, active area dimensions, and TTL/CMOS pin configurations, to verified buyers. Please contact our technical support department directly via email or phone to request your copy.

Does this module include a touchscreen digitizer?

The G057AGE-T01 is supplied as a complete LCM (display glass + backlight + frame), but it does not include a resistive or capacitive touch overlay. If your POS terminal or ATM requires touch functionality, you will need to reuse your original touch glass or source a compatible 5.7-inch 4:3 touch panel separately.

Do you offer bulk pricing for POS system integrators and ATM maintenance companies?

Absolutely. We actively support B2B wholesale orders for retail POS manufacturers, banking maintenance contractors, industrial instrument OEMs, and fleet refurbishment teams. Reach out to our sales department for custom tiered pricing based on your monthly or annual volume requirements.

    Product Comparison
    Model:
    Size:
    Resolution:
    Brightness:
    Contrast Ratio:
    Viewing Angle:
    Lamp Type:
    Signal Interface:
    Panel Type:
    Innolux G057AGE-T01 5.7" 320x240 QVGA Industrial TFT LCD Panel

    Innolux G057AGE-T01 5.7" 320x240 QVGA Industrial TFT LCD Panel

    g057age-t01

    5.7"
    320(RGB)×240, QVGA 70PPI
    500 cd/m² (Typ.)
    800 : 1 (Typ.) (TM)
    80/80/70/70 (Typ.)(CR≥10)
    WLED , 50K hours , With LED Driver
    TTL (1 ch, 6-bit) , 33 pins Connector
    a-Si TFT-LCD, LCM
    Kyocera KCG057QV1DB-G000-W 5.7" Industrial LCD Display Panel 640×480 TTL RGB

    Kyocera KCG057QV1DB-G000-W 5.7" Industrial LCD Display Panel 640×480 TTL RGB

    KCG057QV1DB-G000-W

    5.7"
    640×480
    300 cd/m² (ref)
    60:1 (ref)
    45/45/20/40 (ref)
    LED (ref)
    TTL RGB
    LCM
    Kyocera KCG057QV1DB-G01 5.7" Industrial LCD Display Panel 640×480 TTL RGB

    Kyocera KCG057QV1DB-G01 5.7" Industrial LCD Display Panel 640×480 TTL RGB

    KCG057QV1DB-G01

    5.7"
    640×480
    300 cd/m² (ref)
    60:1 (ref)
    45/45/20/40 (ref)
    LED (ref)
    TTL RGB
    LCM
    g057age-t01 is a 5.7" a-Si TFT-LCD, LCM Display screen Product from INNOLUX.According to INNOLUX's product specification sheet,g057age-t01 display has a resolution of 320(RGB)×240, QVGA 70PPI, Contrast Ratio is 800 : 1 (Typ.) (TM),Viewing Angle is 80/80/70/70 (Typ.)(CR≥10),Lamp Type is WLED , 50K hours , With LED Driver,Signal Interface is TTL (1 ch, 6-bit) , 33 pins Connector,Brightness is 500 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of g057age-t01 after packaging is 0.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
