Lumineq EL320.256-FD6 4.8" Display 320×256 Industrial Display Module
Lumineq EL320.256-FD6 4.8" Display 320×256 Industrial Display Module
Price: $1410.00
$1400.00/ piece
Add to cart
EL320.256-FD6
EL320.256-FD6
EL320.256-FD6
EL320.256-FD6

Lumineq EL320.256-FD6 4.8" Display 320×256 Industrial Display Module

Price: $1410.00
$1400.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

Lumineq EL320.256-FD6 4.8" Display 320×256 Industrial Display Module

Product Information Product Specifications
Model:
EL320.256-FD6
Brand:
Lumineq
Application:
Industrial
Size:
4.8"
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
200
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
0.500 KG
Overview

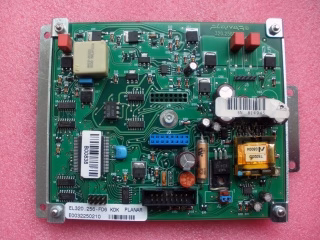

Lumineq EL320.256-FD6 4.8-Inch Industrial Electroluminescent Display Module


The Lumineq EL320.256-FD6 is a 4.8-inch Thin Film Electroluminescent (TFEL) display module designed for demanding industrial, medical, transportation, military, aerospace, and rugged embedded applications.

Unlike conventional TFT LCD displays, the EL320.256-FD6 is a self-emissive display technology, meaning it does not require a backlight. It provides excellent readability, extremely wide viewing angle, fast response time, stable brightness, and outstanding durability in harsh operating environments.

The display features 320 × 256 pixel resolution, TFEL yellow monochrome display, rugged solid-state construction, and long operational lifetime, making it ideal for replacing older industrial displays where reliability is critical.


Key Features

Original Lumineq® TFEL Display Module

Manufactured by Beneq Oy (Lumineq)

4.8-inch diagonal display size

Thin Film Electroluminescence (TFEL) technology

Resolution: 320 × 256 pixels

Monochrome yellow display

Self-emissive display (no backlight required)

Ultra-wide viewing angle: 179°

Fast response time: <1 ms

Stable brightness over temperature range

Long lifetime (>50,000 hours MTBF)

Rugged solid-state structure

Excellent vibration and shock resistance

Wide operating temperature capability

Low power industrial display solution

Suitable for harsh environments


Technical Specifications

SpecificationDetails
ModelEL320.256-FD6
ManufacturerLumineq (Beneq Oy)
Display TechnologyTFEL (Thin Film Electroluminescent)
Display Size4.8 Inch
Resolution320 × 256 pixels
Display ColorTFEL Yellow / Amber
Pixel Pitch0.30 × 0.30 mm
Pixel DensityApprox. 84 PPI
Aspect Ratio5:4
Active Area95.9 × 76.7 mm
Outline Dimension130 × 110 × 31.1 mm
WeightApprox. 260 g
Brightness25 cd/m² Typical
Viewing Angle179°
Response Time<1 ms

Typical Applications

Lumineq EL320.256-FD6 is suitable for:

Industrial control equipment

Factory automation systems

Military display systems

Avionics instruments

Medical monitoring equipment

Transportation control panels

Marine electronics

Test and measurement equipment

Outdoor industrial terminals

Rugged embedded systems

Legacy display replacement projects


Why Choose Lumineq EL320.256-FD6?

Original Lumineq TFEL display technology

No backlight failure risk

Excellent readability in different lighting conditions

Ultra-wide viewing angle performance

Extremely fast response time

High resistance to shock and vibration

Stable operation in extreme temperatures

Long product lifetime for industrial equipment

Ideal replacement for discontinued industrial displays


Quality Assurance

Original Lumineq EL320.256-FD6 module

100% display function testing

Pixel inspection

Brightness testing

Signal interface verification

Power consumption testing

Anti-static protective packaging

Global industrial display supply


FAQ

What type of display is Lumineq EL320.256-FD6?

The EL320.256-FD6 is a TFEL (Thin Film Electroluminescent) display, not a TFT LCD.

What is the resolution of EL320.256-FD6?

It has a resolution of 320 × 256 pixels.

Does EL320.256-FD6 need a backlight?

No. TFEL technology is self-emissive and does not require a backlight system.

Is EL320.256-FD6 suitable for industrial applications?

Yes. It is designed for industrial, medical, transportation, military, and other demanding applications requiring high reliability.
