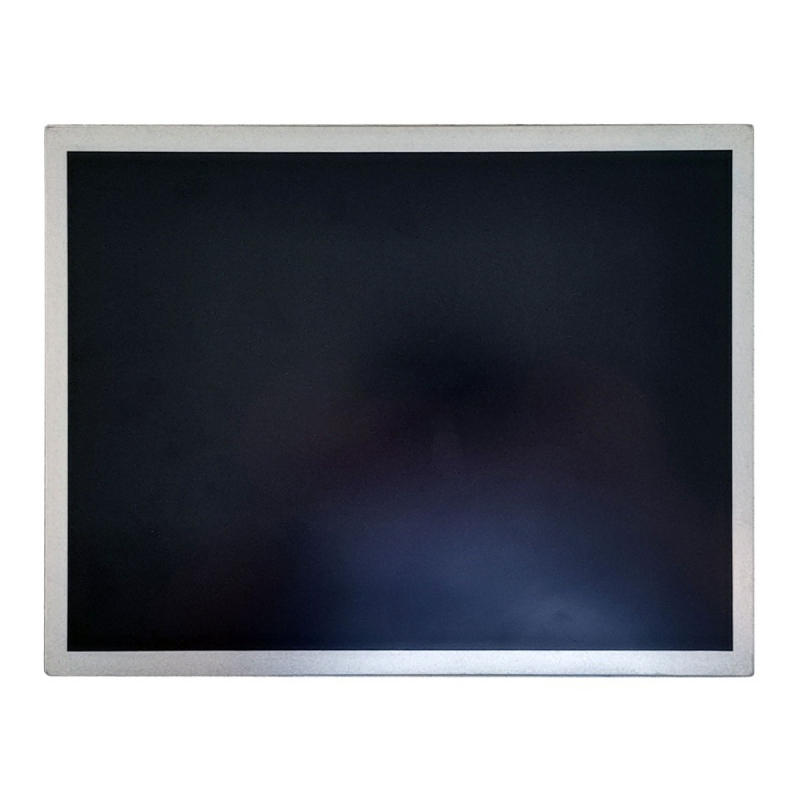

DV185WHM-NM1 18.5 inch LCD Panel WXGA for Industrial Displays
DV185WHM-NM1 18.5 inch LCD Panel WXGA for Industrial Displays
Price: $105.00
$100.00/ piece
Add to cart
DV185WHM-NM1 18.5 inch LCD Panel WXGA for Industrial Displays
DV185WHM-NM1 18.5 inch LCD Panel WXGA for Industrial Displays
DV185WHM-NM1 18.5 inch LCD Panel
DV185WHM-NM1 18.5 inch LCD Panel WXGA for Industrial Displays
DV185WHM-NM1 18.5 inch LCD Panel

DV185WHM-NM1 18.5 inch LCD Panel WXGA for Industrial Displays

Price: $105.00
$100.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

DV185WHM-NM1 18.5 inch LCD Panel WXGA for Industrial Displays

Product Information Product Specifications
Model:
DV185WHM-NM1
Brand:
BOE
Application:
Industrial
Size:
18.5"
Resolution:
1366(RGB)×768, WXGA 84PPI
Brightness:
250 cd/m² (Typ.)
Contrast Ratio:
1000:1 (Typ.) (TM)
Viewing Angle:
89/89/89/89 (Typ.)(CR≥10)
Lamp Type:
WLED [6S4P] , 30K hours , W/O Driver
Signal Interface:
LVDS (1 ch, 8-bit) , 30 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
115
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
3.500 KG
Overview

Product Introduction

DV185WHM-NM1 is an 18.5-inch a-Si TFT-LCD LCM panel manufactured by BOE, engineered for industrial display applications. Featuring a WXGA resolution of 1366(RGB)×768, this panel combines reliable performance with commercial-grade construction. With a brightness level of 250 cd/m², a contrast ratio of 1000:1, and ADS normally black transmissive display mode, it delivers consistent image quality across industrial environments. The panel operates within a temperature range of 0 ~ 50 °C, supports a 60Hz refresh rate, and includes a backlight rated for a minimum of 30,000 hours, making it a dependable choice for long-term industrial integration.

Key Features

  • 5-inch a-Si TFT-LCD LCM panel from BOE with WXGA 1366(RGB)×768 resolution

  • Brightness of 250 cd/m² with 1000:1 typical contrast ratio for clear industrial visibility

  • ADS normally black transmissive display mode with 14ms (G to G) response time

  • 7M color depth (6-bit + Hi-FRC) and 6485K color temperature for accurate color reproduction

  • 99% sRGB coverage (CIE 1931) for consistent color standards in professional applications

  • 60Hz refresh rate supporting stable image rendering

  • Wide operating temperature range of 0 ~ 50 °C and storage temperature of -20 ~ 60 °C

  • Typical voltage operation at 18.0V (17.4V Min. / 19.8V Max.)

  • Backlight lifetime rated at minimum 30,000 hours for extended service life

  • Outline dimensions of 430.4(H)×254.6(V) mm with active area of 409.8(H)×230.4(V) mm

  • Pixel pitch of 0.100×0.300 (H×V) mm for precise image definition

  • Lightweight design at 1.30Kgs typical weight

  • Industrial-grade panel built by BOE, a leading TFT-LCD manufacturer

Technical Specifications

Panel ModelDV185WHM-NM1
Panel Typea-Si TFT-LCD, LCM
Display Size18.5
Resolution1366(RGB)×768, WXGA
Pixel Pitch0.100×0.300 (H×V) mm
Application FieldIndustrial
Operating Temperature0 ~ 50 °C
Storage Temperature-20 ~ 60 °C
Brightness250
Contrast Ratio1000:1 (Typ.) (Transmissive)
Response Time14 (Typ.)(G to G)
Color Depth16.7M (6-bit + Hi-FRC)
Color Temperature6485K
Display ModeADS, Normally Black, Transmissive
Refresh Rate60Hz
sRGB Coverage99% coverage (CIE 1931)
Outline Dimension430.4(H)×254.6(V) mm
Active Area409.8(H)×230.4(V) mm
Weight1.30Kgs (Typ.)
Voltage17.4/18.0/19.8V (Min./Typ./Max.)
Backlight Lifetime30K (Min.) hrs

Applications

  • Industrial control systems and HMI (Human-Machine Interface) displays

  • Factory automation equipment and operator interface terminals

  • Medical display equipment and diagnostic monitoring systems

  • Retail digital signage and commercial information displays

  • Transportation display systems for rail, aviation, and vehicle terminals

  • Self-service kiosks and ticketing machines

  • POS (Point-of-Sale) systems and transaction terminals

  • Security and surveillance monitoring stations

  • Educational and training display equipment

  • Test and measurement instrumentation displays

Frequently Asked Questions

A: The DV185WHM-NM1 is an a-Si TFT-LCD LCM (Liquid Crystal Module) panel manufactured by BOE. It uses ADS (Advanced Super Dimension Switch) normally black transmissive display technology, designed specifically for industrial applications requiring reliable long-term performance.

Q1: What type of panel is the DV185WHM-NM1 from BOE?

A: The DV185WHM-NM1 features an 18.5-inch display area with a WXGA resolution of 1366(RGB)×768 pixels. The pixel pitch measures 0.100×0.300 (H×V) mm, providing clear image definition for industrial display requirements.

Q2: What is the resolution and display size of the DV185WHM-NM1?

A: The DV185WHM-NM1 operates within a temperature range of 0 ~ 50 °C, suitable for most industrial environments. The storage temperature range is -20 ~ 60 °C, allowing for safe handling and inventory storage in varied conditions.

Q3: What are the operating and storage temperature ranges for this industrial panel?

A: The DV185WHM-NM1 features a backlight rated for a minimum lifetime of 30,000 hours. This extended backlight durability supports long-term deployment in industrial and commercial applications, reducing maintenance frequency and total cost of ownership.

Q4: What is the backlight lifetime of the DV185WHM-NM1?

A: The DV185WHM-NM1 delivers a brightness of 250 cd/m² and a typical contrast ratio of 1000:1 in transmissive mode. These specifications provide adequate visibility for industrial control panels, HMI displays, and commercial signage in standard indoor lighting conditions.

Q5: What are the brightness and contrast specifications of this panel?

A: The DV185WHM-NM1 operates at a typical voltage of 18.0V, with a minimum of 17.4V and a maximum of 19.8V. Industrial integrators should design power supply systems within this voltage range to ensure stable and reliable panel operation.

Q6: What is the voltage requirement for the DV185WHM-NM1 panel?

A: The DV185WHM-NM1 supports 16.7M colors through 6-bit + Hi-FRC (High Frame Rate Control) technology. It offers 99% sRGB coverage based on CIE 1931 standards and a color temperature of 6485K, ensuring accurate and consistent color reproduction for professional industrial and commercial applications.

Q7: What color performance does the DV185WHM-NM1 provide?

A: The DV185WHM-NM1 operates at a 60Hz refresh rate, suitable for standard industrial display applications. The typical response time is 14ms (G to G), adequate for most control interfaces, monitoring systems, and information displays that do not require high-speed video rendering.

Q8: What is the refresh rate and response time of the DV185WHM-NM1?

A: The DV185WHM-NM1 has a typical weight of 1.30Kgs and outline dimensions of 430.4(H)×254.6(V) mm. The active display area measures 409.8(H)×230.4(V) mm, providing integration flexibility for industrial enclosure designs and mounting configurations.

Q9: What is the weight and outline dimension of the DV185WHM-NM1?

A: Yes, the DV185WHM-NM1 is designed for industrial applications requiring dependable continuous operation. With a 30,000-hour minimum backlight lifetime, industrial-grade operating temperature range, and stable performance specifications from BOE, this panel is well-suited for factory automation, control systems, and other long-term deployment scenarios.

Q10: Is the DV185WHM-NM1 suitable for continuous industrial operation?
