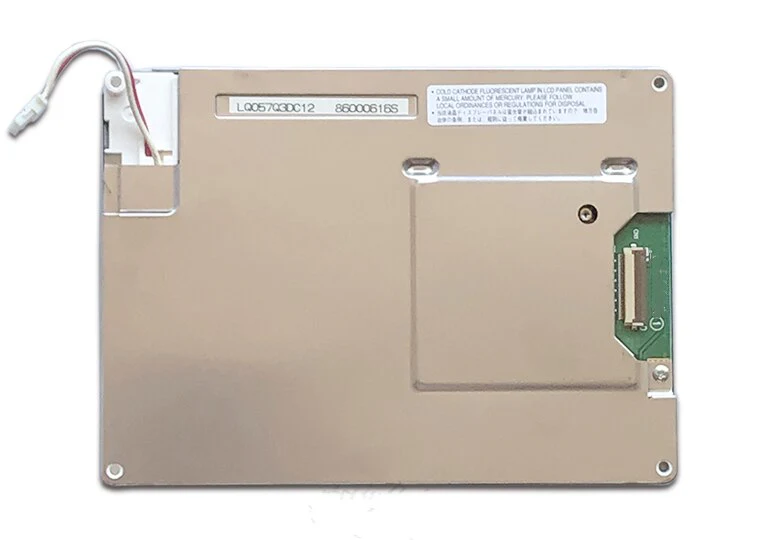

LQ057Q3DC12 Sharp 5.7 inch 320*240  LCD  Display LCD
LQ057Q3DC12 Sharp 5.7 inch 320*240 LCD Display LCD
Price: $85.00
$80.00/ piece
Add to cart
LQ057Q3DC12 Sharp  LCD  Display LCD
LQ057Q3DC12 Sharp  LCD  Display LCD
LQ057Q3DC12 Sharp  LCD  Display LCD
LQ057Q3DC12 Sharp  LCD  Display LCD
LQ057Q3DC12 Sharp  LCD  Display LCD
LQ057Q3DC12 Sharp  LCD  Display LCD

LQ057Q3DC12 Sharp 5.7 inch 320*240 LCD Display LCD

Price: $85.00
$80.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

LQ057Q3DC12 Sharp 5.7 inch 320*240 LCD Display LCD

Product Information Product Specifications
Model:
LQ057Q3DC12
Brand:
SHARP
Application:
Industrial
Size:
5.7"
Resolution:
320(RGB)×240, QVGA 70PPI
Brightness:
500 cd/m² (Typ.)
Contrast Ratio:
350:1 (Typ.) (TM)
Viewing Angle:
65/65/65/40 (Typ.)(CR≥5)
Lamp Type:
1 pcs CCFL , 50K hours , Without Driver
Signal Interface:
Parallel RGB (1 ch, 6-bit) , 33 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Active Area:
115.2(W)×86.4(H) mm
Outline:
144(W)×104.6(H)×13.5(D) mm
Storage Temp:
-30 ~ 80 °C
Operating Temp:
-30 ~ 80 °C
Support Color:
262K
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
2000
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
0.500 KG
Overview

LQ057Q3DC12 Sharp 5.7 inch 320*240  LCD  Display LCD

The Sharp LQ057Q3DC12 is a 5.7-inch active matrix TFT-LCD display module with a resolution of 320 × 240 pixels (QVGA). It features a transmissive display mode with normally white operation. The active area measures approximately 115.2(W)×86.4(H) mm, with overall outline dimensions of roughly 144(W)×104.6(H)×13.5(D) mm. The panel supports 18-bit parallel RGB interface (6 bits per color), capable of displaying up to colors. Logic power supply is 3.3V or 5.0V (selectable), with typical power consumption around 1.5W to 2.5W. The module utilizes a single CCFL (Cold Cathode Fluorescent Lamp) backlight, requiring an external inverter with typical lamp current of 5.0 mA and lamp voltage of approximately 350 Vrms to 400 Vrms. Operating temperature range is -30°C to +80°C, with a storage range of -30°C to +80°C. The module typically features a 33-pin or 40-pin FPC/connector interface for signal integration.

LQ057Q3DC12 Sharp  LCD  Display LCD Key Highlights:

Exceptional optical performance – Delivers high contrast ratio (typically 350:1 to 500:1) and good viewing angles (up to 65/65/65/40 (Typ.)(CR≥5) for left/right/up/down), ensuring clear image quality for industrial and medical applications.

Wide operating temperature range –65/65/65/40 (Typ.)(CR≥5)llows reliable operation in harsh environments such as factory automation, outdoor kiosks, and automotive infotainment systems.

Compact 5.7-inch QVGA format – The 320×240 resolution provides a proven, cost-effective solution for legacy system upgrades, portable instruments, and control panels without requiring software changes.

Flexible power compatibilityDual-voltage logic (3.3V/5.0V selectable) and standard 18-bit RGB interface simplify integration with both new and existing controller designs.

Rugged mechanical design – With a thickness of 13.5mm and robust construction, this module is built for long-term reliability in demanding industrial environments. Sharp's long product life cycle support reduces redesign risks for mission-critical applications.


LQ057Q3DC12 Sharp  LCD  Display LCD  Specification:

FeatureSpecification
ManufacturerSharp
Model NumberLQ057Q3DC12
Screen Size5.7 inch
Resolution320 × 240 (QVGA)
Display ModeTN, Normally White, Transmissive
Interface TypeParallel CMOS (1 ch, 6-bit)
Backlight TypeSingle CCFL
Brightness500 cd/m² (Typical)
Contrast Ratio350:1 (Typical)
Display Colors262K (6-bit)
Active Area115.2(W)×86.4(H) mm
Outline Dimensions144(W)×104.6(H)×13.5(D) mm
Response Time30 ms (Typical)
Operating Temperature-30°C to +80°C


Applications

Factory automation and HMI panels

Medical bedside monitors

Professional laboratory instruments

Embedded vehicle telematics

Security surveillance control units


FAQ:

What is the brightness of this screen? Is it clear enough to read in a brightly lit factory?

The typical brightness of the LQ057Q3DC12 is 500 cd/m². While not an ultra-high brightness display, its industrial-grade contrast ratio 350:1) ensures excellent readability in standard factory lighting conditions.

My equipment is installed in a high-temperature environment. What is the operating temperature range of this display?

This model is a wide-temperature industrial display with an operating range of -25°C to +70°C and a storage range of -30°C to +80°C, making it ideal for harsh industrial environments.

If the backlight fails in the future, can the backlight tube be replaced separately?

This screen uses a single CCFL backlight. While the tube can be disassembled and replaced, we recommend it be done by professionals or by replacing the backlight module directly to ensure uniform display quality.


Click here to learn more about: sharp  displays

Return to Home:https://www.zylcdshop.com/






Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
LQ057Q3DC12 Sharp 5.7 inch 320*240  LCD  Display LCD

LQ057Q3DC12 Sharp 5.7 inch 320*240 LCD Display LCD

LQ057Q3DC12

5.7"
320(RGB)×240, QVGA 70PPI
500 cd/m² (Typ.)
350:1 (Typ.) (TM)
65/65/65/40 (Typ.)(CR≥5)
1 pcs CCFL , 50K hours , Without Driver
Parallel RGB (1 ch, 6-bit) , 33 pins Connector
a-Si TFT-LCD, LCM
LCD display  LQ057Q3DC11   5.7 inth   320*240   Industrial  screen

LCD display LQ057Q3DC11 5.7 inth 320*240 Industrial screen

LQ057Q3DC11

5.7"
320(RGB)×240, QVGA 70PPI
500cd/m² (Typ.)
350:1(Typ.) (TM)
a-Si TFT-LCD, LCM
LQ057Q3DC03   5.7"  lcd display screens

LQ057Q3DC03 5.7" lcd display screens

LQ057Q3DC03

5.7"
320×240(RGB), QVGA 70PPI
500 cd/m² (Typ.)
350:1 (Typ.) (TM)
80/80/80/65 (Typ.)(CR≥10)
WLED , 50K hours , With LED Driver
Parallel RGB (1 ch, 6-bit) , 33 pins Connector
a-Si TFT-LCD, LCM
LQ057Q3DC02 Sharp 5.7" a-Si TFT-LCD  LCM 320(RGB)×240  QVGA  70PPI

LQ057Q3DC02 Sharp 5.7" a-Si TFT-LCD LCM 320(RGB)×240 QVGA 70PPI

LQ057Q3DC02

5.7"
320(RGB)×240, QVGA 70PPI
350 cd/m² (Typ.)
60 : 1 (Min.) (TM)
65/65/65/40(Typ.)(CR≥5)
1 pcsCCFL, 50K hours, No Driver
ParallelRGB(1ch,6-bit),33pinsConnector
a-Si TFT-LCD, LCM
LQ057Q3DC12 is a 5.7" a-Si TFT-LCD, LCM Display screen Product from SHARP.According to SHARP's product specification sheet,LQ057Q3DC12 display has a resolution of 320(RGB)×240, QVGA 70PPI, Contrast Ratio is 350:1 (Typ.) (TM),Viewing Angle is 65/65/65/40 (Typ.)(CR≥5),Lamp Type is 1 pcs CCFL , 50K hours , Without Driver,Signal Interface is Parallel RGB (1 ch, 6-bit) , 33 pins Connector,Brightness is 500 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of LQ057Q3DC12 after packaging is 0.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
verified

Original Factory-Sealed Panels

Every unit is sourced directly from AUO Optronics through Zhiyan's first-hand supply channel. No refurbished, no B-grade. Factory seal intact.

100% Original | Factory Sealed
fact_check

100% Pre-Ship Testing & 6-Month RMA

Each panel passes through our six-step quality chain—incoming, display, appearance, interface, packaging, and tracking. Backed by a 6-month RMA.

Test OK Before Ship | RMA 6 Months
inventory_2

99 Units In Stock · Ships in 1–3 Days

Stocked in our Shenzhen Longhua warehouse. Standard lead time 1–3 business days; quotations returned within 24 hours.

99 In Stock | Lead Time 1-3 Days
local_shipping

Worldwide Shipping with Full Tracking

DHL, FedEx, UPS and TNT available. ESD-safe packaging. Typical door-to-door delivery: 5–7 business days globally.

DHL · FedEx · UPS · TNT | Worldwide

Quality issue? Return freight is on us. Damaged in transit? We cover it in full.

Why 1,000+ Engineers Trust Zhiyan Since 2013

factory 18 Years of Industrial LCD Supply Chain Expertise

  • warehouse 30,000+ m² ready-to-ship warehouse with tens of millions of dollars of LCD inventory on hand
  • category 100,000+ LCD models covered — from mainstream panels to discontinued & hard-to-find EOL models
  • groups 200+ staff, including a dedicated engineering team of 10+ for pre-sales matching and after-sales support
  • handshake Direct factory sourcing from Kyocera, KOE, and NANYA; long-standing supply partnerships across Taiwan and South Korea
  • sync One-stop service: sourcing → evaluation → testing → packaging → global logistics → technical support

fact_check 6-Step Inspection — No Panel Ships Untested

inventory_2 Incoming
monitor Display Test
visibility Appearance
settings_input_component Interface
view_in_ar Packaging
flight_takeoff Shipment
  • done_all Every panel is visually inspected, electrically powered-on tested, and interface-verified before packing
  • inventory_2 Anti-static, shock-proof professional packaging for international transit
  • verified What you see is what you get — product consistent with description, or return freight on us

verified_user Verified by Third Parties, Compliant in Your Market

Alibaba Verified Supplier Certificate
CITEO Membership Certificate
Der Grüne Punkt License
LUCID Registration Certificate
  • check TÜV Rheinland On-Site Verified Supplier (Alibaba.com Verified Supplier, Cert. No. 139632585_T) — factory audit covering production capacity, quality assurance & R&D
  • check EU Authorized Representative (EC REP) appointed — EUREPSTAR GmbH, Germany, valid 2025–2027, CE technical files maintained
  • check CITEO Registered (France, packaging EPR compliance, ID: FR293377_01SEXD)
  • check Der Grüne Punkt Licensed (Germany, VerpackG packaging compliance, Reg. No. DE4833497804557)
  • check All panels RoHS 2.0 compliant, lead-free, mercury-free WLED backlight
  • check Registered company: Shenzhen Zhiyan Optoelectronics Co., Ltd. — VAT/Reg. No. 91440300MA5GQNC36C

precision_manufacturing Trusted Across 13+ Industries Worldwide

Industrial Automation

HMI panels & factory control displays for automation integrators

Medical Devices

Auxiliary diagnostic & monitoring displays for medical device makers

POS/ATM

Replacement screens & bulk supply for POS/ATM manufacturers

Marine Electronics

Marine navigation display modules

Repair Market

EOL & obsolete panel sourcing for global repair centers

Embedded / OEM

Custom display solutions: touch bonding, brightness, cables, OEM labeling

Send us your LCD model number, application and quantity — our engineers will recommend a compatible solution within 24 hours.

local_shipping In Stock. Tested. Shipped in 1–3 Days.

timer

1–3 day lead time for in-stock items; same-day dispatch available in some cases

public

Worldwide shipping via express couriers, full tracking from warehouse to door

account_tree

Every order follows the same chain: Warehouse → QC → Packaging → Shipping → You

gpp_good

Transportation damage covered by us — zero risk on your side

What Buyers Say — 4.8/5 from Verified Orders

star star star star star_half

local_shipping On Delivery

"My package arrived at the expected date (6 days after the purchase) and in good condition."
— Verified Buyer, Nov 2025

"Fast shipping, good communication, goods as described, will buy again."
— Verified Buyer, Aug 2025

support_agent On Service

"The communication with customer service was very smooth, the logistics speed was also fast, the product was consistent with the description."
— Verified Buyer, Aug 2025

"Fast delivery, competitive price, excellent support."
— Verified Buyer, Aug 2025

inventory_2 On Hard-to-Find Models & Price

"Good price for things hard to find!"
— Verified Buyer, Aug 2025

"Excellent quality, affordable price, worth recommending."
— Verified Buyer, Nov 2024

Join engineers and buyers from industrial automation, medical and marine industries — get your quotation within 24 hours.

Questions & Answers
Ask a Question >
Q:
What should I pay attention to when driving this display?
A:
When driving this display, you need to: Ensure you provide a power supply that meets the specifications (typically 3.3V or 5V). Use a compatible LVDS controller to generate the correct signals. Pay attention to the interface pinout to ensure proper connection with your controller board. Refer to its datasheet for precise timing requirements, initialization sequences, and operating temperature range.
Q:
What are its main application areas?
A:
The LQ057Q3DC12 is commonly found in industrial controls, medical equipment, Human-Machine Interfaces (HMI), test and measurement instruments, portable devices, and other areas that require a stable, reliable, and compact display solution
Q:
What kind of backlight does it use?
A:
This display typically uses an LED (Light Emitting Diode) backlight. LED backlights offer advantages such as long lifespan, low power consumption, high brightness, and are more environmentally friendly as they do not contain mercury.
Q:
What is its interface type?
A:
The LQ057Q3DC12 typically comes with a standard LVDS (Low-Voltage Differential Signaling) interface. This is a common digital video interface used to transmit video signals from a controller board to the display, known for its strong noise immunity and ability to transmit over longer distances.
Q:
What are the basic specifications and dimensions of this display?
A:
The LQ057Q3DC12 is a 5.7-inch LCD display. Its physical dimensions are 144(W)×104.6(H)×13.5(D) mm It typically features a resolution of 320x240 pixels (QVGA) and uses TFT technology for excellent image quality.
