CXA-P1212E-WJL TDK Inverter CCFL LCD Backlight Power Supply
CXA-P1212E-WJL TDK Inverter CCFL LCD Backlight Power Supply
Price: $35.00
$30.00/ piece
Add to cart
CXA-P1212E-WJL
CXA-P1212E-WJL

CXA-P1212E-WJL TDK Inverter CCFL LCD Backlight Power Supply

Price: $35.00
$30.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

CXA-P1212E-WJL TDK Inverter CCFL LCD Backlight Power Supply

Product Information Product Specifications
Model:
CXA-P1212E-WJL
Application:
Industrial
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
500
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

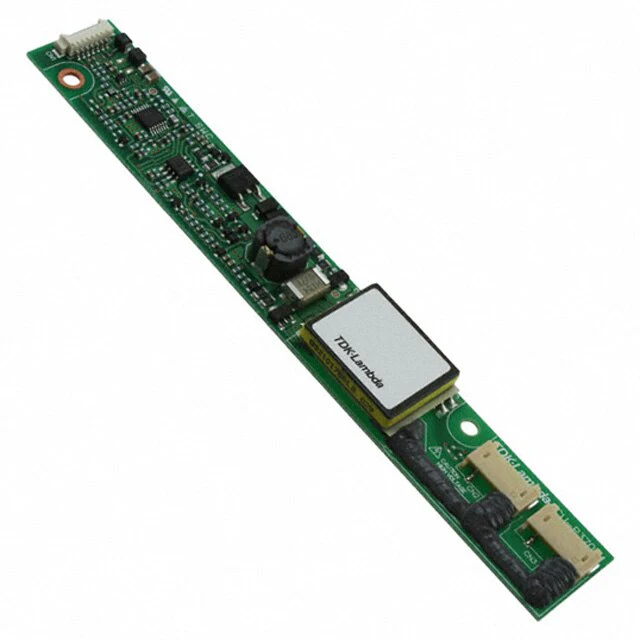

TDK CXA-P1212E-WJL LCD Backlight Inverter Module


The TDK CXA-P1212E-WJL is a high-performance DC-AC inverter unit designed to drive CCFL (Cold Cathode Fluorescent Lamp) backlights used in industrial TFT LCD displays.

This inverter provides a 12V DC input and 1700V AC high-voltage output, supporting dual CCFL lamp applications commonly found in industrial monitors, HMI displays, medical equipment, test instruments, and legacy LCD systems.

The CXA-P1212E-WJL includes brightness dimming control, remote ON/OFF function, lamp failure detection, and shutdown protection, making it suitable for reliable long-term operation in professional display applications.


Key Features

Original TDK CCFL backlight inverter

DC 12V input power

1700V high-voltage output

Dual CCFL lamp output

Supports 10–12 inch LCD panels

Brightness dimming function

Remote control function

Lamp failure detection

Shutdown protection

Industrial-grade reliability


Technical Specifications

SpecificationDetails
ModelCXA-P1212E-WJL
ManufacturerTDK Corporation
Product TypeDC-AC Inverter Unit
ApplicationCCFL LCD Backlight
Input Voltage10.8V – 13.2V DC
Typical Input Voltage12V DC
Output Voltage1700V AC
Number of Outputs2 outputs
Output CurrentApprox. 6.0 mA RMS
Output PowerApprox. 8W
Applicable LCD Size10–12 inch panels
Dimming FunctionYes
Remote FunctionYes
Lamp ProtectionLamp failure detection & shutdown
Operating Temperature-30°C to +80°C
Dimensions153 × 21.5 × 8.5 mm
WeightApprox. 21.2 g

Typical Applications

Industrial TFT LCD monitors

HMI control panels

CNC machine displays

Factory automation equipment

Medical display systems

Test and measurement instruments

Embedded industrial computers

Legacy CCFL LCD replacement projects


Why Choose CXA-P1212E-WJL?

The TDK CXA-P1212E-WJL remains a popular replacement inverter for industrial LCD equipment because of its:

Stable CCFL lamp driving performance
Compact industrial design
Dual output capability
Adjustable brightness control
Protection against lamp failure
Compatibility with many legacy LCD modules

It is especially suitable for customers repairing older industrial displays where replacing the complete LCD assembly is unnecessary.


Quality Assurance & Supply Support

Original TDK inverter module

100% functional testing before shipment

Anti-static packaging

Industrial replacement support

Bulk supply available

Worldwide shipping

Compatibility checking service


FAQ Section

What is the CXA-P1212E-WJL used for?

The CXA-P1212E-WJL is a CCFL backlight inverter used to provide high-voltage AC power for LCD backlight lamps in industrial displays.

What input voltage does this inverter require?

It requires a 10.8V–13.2V DC input, typically powered by a 12V supply.

What is the output voltage of CXA-P1212E-WJL?

The inverter provides approximately 1700V output voltage for CCFL lamps.

How many lamps can it drive?

The CXA-P1212E-WJL supports two CCFL lamp outputs.

Does it support brightness adjustment?

Yes. It includes a dimming function for LCD backlight brightness control.

Is CXA-P1212E-WJL still manufactured?

This model is listed as obsolete/end-of-life by some distributors, but replacement and surplus stock may still be available for industrial repair applications.
