CPT CLAA121UA02CW 12.1" Industrial LCD Display Panel 1600×900 LVDS WLED

Product Information Product Specifications
Model:
CLAA121UA02CW
Application:
Industrial
Size:
12.1"
Resolution:
1600×900
Brightness:
250 cd/m²
Contrast Ratio:
500:1
Viewing Angle:
45/45/15/35
Lamp Type:
WLED
Signal Interface:
LVDS
Panel Type:
LCM
Support Color:
262K
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
369
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.500 KG
Overview

CPT CLAA121UA02CW is a slim 12.1-inch HD+ TN TFT LCD panel with 1600×900 resolution and dual-channel LVDS interface, optimized for compact embedded industrial terminals, portable test equipment and lightweight HMI devices. Equipped with integrated WLED backlight with built-in driving circuit, it eliminates extra inverter modules and delivers steady 250 cd/m² brightness with low power consumption for long-duration 24/7 operation. Its ultra-thin 4.45mm outline thickness greatly saves internal assembly space for small-size all-in-one industrial machines and portable inspection instruments. The matte anti-glare front surface effectively weakens ambient light reflection in indoor factory and laboratory environments, while the 2H hard coating prevents minor surface abrasion during daily equipment use. Standard dual 6-bit LVDS signal provides reliable anti-interference transmission, widely compatible with mainstream embedded motherboards, single-board computers and industrial display driver boards without complex signal conversion. Operating within 0℃~+60℃ standard industrial temperature range, this original CPT panel is fully RoHS compliant and supplied with full factory optical aging test for light industrial automation, portable measuring equipment and legacy screen replacement projects.

ParameterSpecification
Model NumberCLAA121UA02CW
ManufacturerCPT (Chunghwa Picture Tubes)
Diagonal Size12.1 inches
Native Resolution1600(RGB) × 900 HD+, 16:9 Aspect Ratio, 151 PPI
Display Technologya-Si TFT-LCD, TN Mode, Transmissive, Normally White
Signal Interface2-channel 6-bit LVDS, 40-pin connector, 3.3V logic voltage
Backlight SystemIntegrated WLED with built-in driver, typical lifespan 30,000 hrs
Typical Brightness250 cd/m²
Typical Contrast Ratio500:1
Viewing Angle (L/R/U/D, CR≥10)45° / 45° / 15° / 35°
Color Performance262K display colors, 45% NTSC color gamut
Response Time (Tr+Td GtG)20 ms typical
Refresh Rate60 Hz
Pixel Pitch0.16725 × 0.16725 mm
Active Display Area267.6 mm (W) × 150.525 mm (H)
Overall Outline Dimension280.7 mm (W) × 165.75 mm (H) × 4.45 mm (D)
Surface TreatmentMatte anti-glare non-glare coating, 2H hard scratch resistance
Net Weight~1.0 kg typical
Operating Temperature Range0 ℃ ~ +60 ℃
Storage Temperature Range-20 ℃ ~ +60 ℃
Touch FunctionNo integrated touch panel
Compliance StandardRoHS Lead-Free Certified, UL certified
Product StatusStable mass production, Grade A original stock for embedded & light industrial replacement

 Application Scenarios

Compact embedded industrial HMI control panels

Portable industrial test & measurement instruments

Light factory automation monitoring terminals

Small-size industrial all-in-one touch machines

Laboratory analysis auxiliary display equipment

Medical portable diagnostic auxiliary screens

Replacement panel for 12.1-inch HD+ notebook & embedded monitors

FAQ

Q1: What resolution and signal interface does CLAA121UA02CW adopt?
A1: It supports native 1600×900 HD+ 16:9 resolution, equipped with 2-channel 6-bit LVDS differential signal via a 40-pin connector with 3.3V logic input, compatible with most embedded industrial drive boards.
Q2: What are the features of its WLED backlight?
A2: Integrated WLED with internal LED driver circuit, no external inverter required; typical service life reaches 30,000 hours, low power consumption and uniform brightness distribution.
Q3: What is the viewing angle performance of this TN panel?
A3: Horizontal viewing angle reaches 45° left/right; vertical viewing angle is 15° upward and 35° downward, suitable for front-facing operator operation in indoor fixed equipment.
Q4: What temperature range is applicable for this display panel?
A4: Operating temperature 0℃ ~ +60℃, storage temperature -20℃ ~ +60℃, designed for indoor constant-temperature light industrial and laboratory environments, not recommended for outdoor low/high temperature harsh sites.
Q5: Is the surface anti-reflective and scratch-resistant?
A5: Yes, matte anti-glare non-glare polarizer with 2H hard coating, reducing light reflection and resisting minor scratches caused by daily industrial operation.


Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
CPT CLAA121UA02CW 12.1" Industrial LCD Display Panel 1600×900 LVDS WLED

CPT CLAA121UA02CW 12.1" Industrial LCD Display Panel 1600×900 LVDS WLED

CLAA121UA02CW

12.1"
1600×900
250 cd/m²
500:1
45/45/15/35
WLED
LVDS
LCM

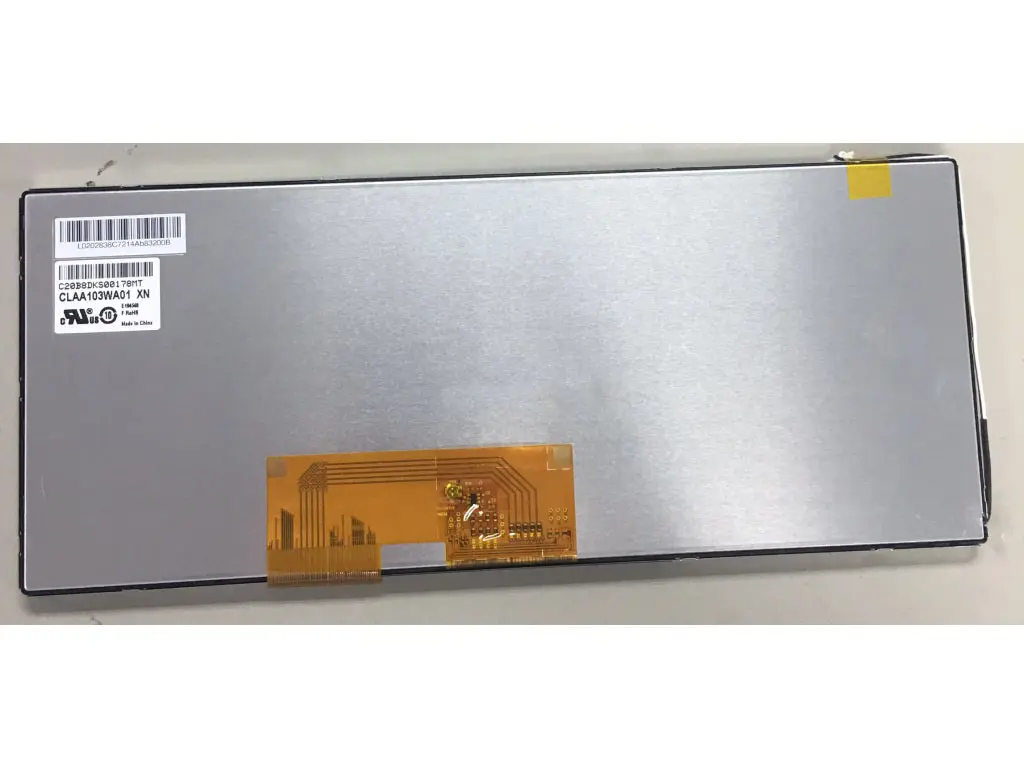

CPT CLAA103WA01 XN 10.3" Industrial LCD Display Panel 1280×480 LVDS WLED
