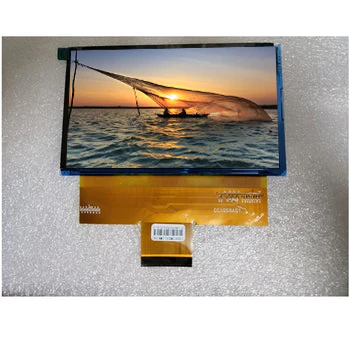

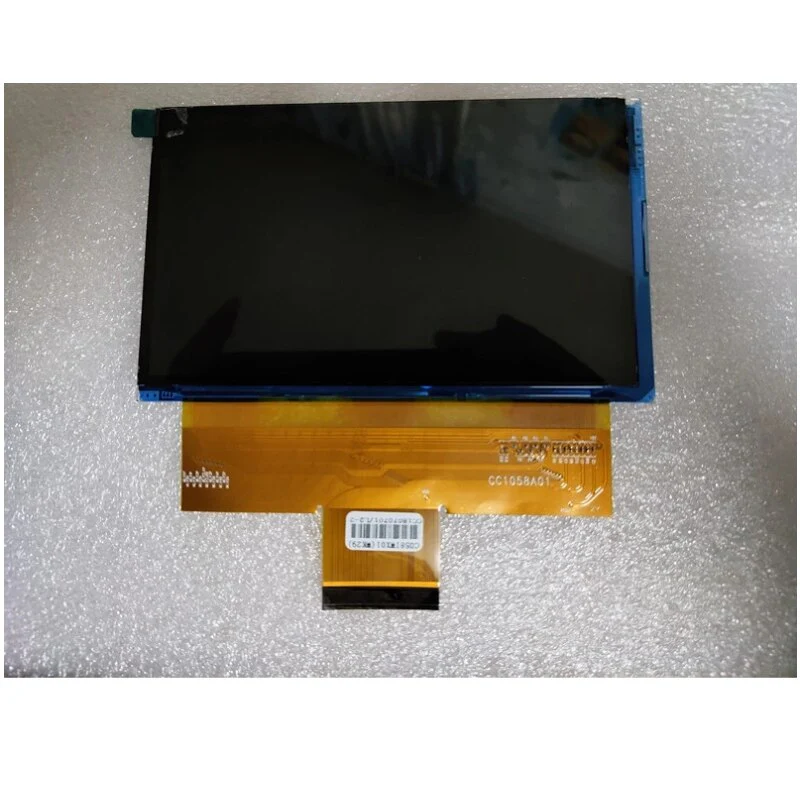

CC1058A01 C058IWX01 New 5.8 inch LCD screen instrument LCD screen
CC1058A01 (C058IWX01) is a 5.8-inch HD industrial TFT module. The 1280×768 high resolution is widely adopted as imaging panel for mini portable projectors and display screen for various portable industrial instruments.
350 cd/m² standard brightness supports clear display of measurement waveforms, parameters and imaging pictures under indoor instrument environment. The TN panel achieves best visual effect at 6 o’clock viewing angle, matching front-facing operation design of equipment.The module adopts ultra-thin 4.2mm structure, suitable for installation inside equipment with limited cavity space. The standard 50Pin parallel TTL interface is compatible with STM32, FPGA and general TTL driver boards for product development.All stocked modules pass long-time power-on aging test, full dead pixel inspection and backlight uniformity test. This screen is commonly used for broken screen replacement of old equipment and mass matching of miniature imaging instruments.
| Category | Parameter | Typical Specification |
|---|---|---|
| Basic Info | Model | CC1058A01 / C058IWX01 |
| Manufacturer | Domestic industrial TFT module manufacturer | |
| Screen Size | 5.8 inch, landscape 16:9 | |
| Native Resolution | 1280(RGB) × 768 HD | |
| Panel Technology | a-Si TN TFT-LCD, Transmissive Normally White | |
| Pixel Arrangement | RGB vertical stripe | |
| Optical Performance | Active Display Area (AA) | 128.64(W) × 77.184(H) mm |
| Typical Brightness | 350 cd/m² | |
| Contrast Ratio | 500:1 @ 25℃ ambient temperature | |
| Color Depth | 6-bit RGB, 262K display colors | |
| Viewing Angle (CR≥10) | L/R:70°, U:50°, D:60°; Optimal viewing direction: 6 o’clock | |
| Response Time | 30ms typical value | |
| Refresh Rate | 60Hz native | |
| Mechanical Spec | Overall Outline Dimension | 140.2(W) × 85.6(H) × 4.2(D) mm |
| Net Weight | ~62g | |
| Surface Treatment | Gloss hard coat; matte AG anti-glare polarizer optional | |
| Electrical Interface | Connector | 50Pin FPC parallel RGB TTL interface |
| Logic Supply Voltage | DC 3.3V (3.0V ~ 3.6V tolerance) | |
| Backlight System | Light Source | Edge side WLED array |
| Onboard Circuit | No built-in WLED constant current IC; external dedicated LED driver required | |
| WLED Rated Lifespan | 30,000 hours to half brightness | |
| Environmental Rating | Operating Temperature | -10 ℃ ~ +60 ℃ instrument grade |
| Storage Temperature | -20 ℃ ~ +70 ℃ | |
| Operating Humidity | 10% ~ 90% RH non-condensing | |
| Quality & Stock | Quality Grade | New Tested Grade A: zero bright/dark dot, no horizontal/vertical line defects, uniform backlight without light leakage |
| Stock Status | In-Stock. Full pixel scan and continuous aging test before shipment | |
| Compliance | RoHS Lead-Free Certified, mercury-free WLED backlight | |
| Touch Matching | Bare LCD only; separate 5.8" resistive / capacitive touch digitizer available for optical bonding |
1280×768 HD resolution, delivers finer display effect compared with common 800×480 5.8-inch panels
Slim and lightweight design (only 62g), ideal for portable instruments and mini projector equipment
Operating temperature from -10℃ to +60℃, satisfies working environment of general indoor industrial instruments
Standard 50Pin parallel RGB TTL interface with mature driver solutions and abundant supporting driver resources
Ready stock supports fast delivery for equipment maintenance replacement and small-batch projects
Optional matte anti-glare polarizer to reduce light reflection inside instrument cabin
Replacement imaging LCD panel for portable high-definition projectors
Display screen for industrial non-destructive testing equipment and optical inspection instruments
Portable medical testing equipment and vital signs monitoring terminals
Small embedded HMI and data acquisition recorder display panel
Vehicle-mounted miniature imaging equipment and construction machinery handheld remote controller display
Spare replacement panel for original equipment C058IWX01
