AUO C100HAT01.2 10.0" 1560x700 Ultra-Wide High Brightness Stretch TFT LCD Panel
AUO C100HAT01.2 10.0" 1560x700 Ultra-Wide High Brightness Stretch TFT LCD Panel
Price: $138.00
$135.00/ piece
Add to cart

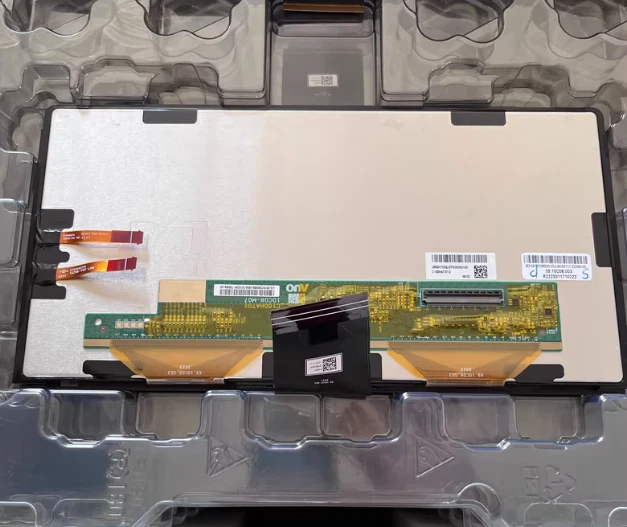

High-power WLED backlight structure on C100HAT01.2 10

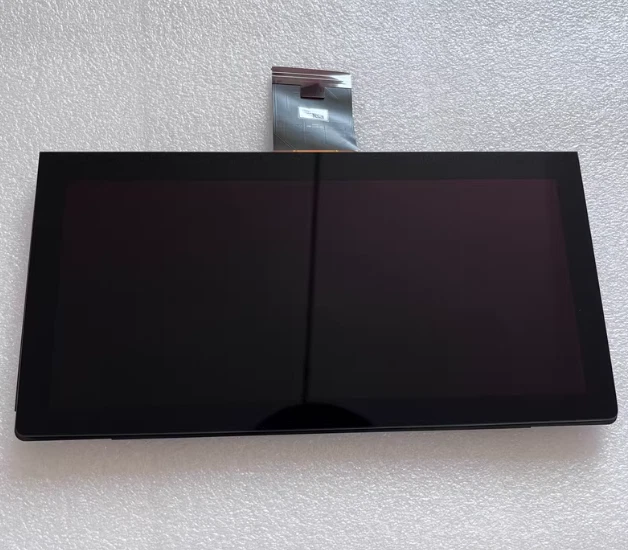

AUO C100HAT01.2 10 inch 1560x700 ultra-wide stretch high brightness TFT LCD front view
High-power WLED backlight structure on C100HAT01.2 10
AUO C100HAT01.2 10 inch 1560x700 ultra-wide stretch high brightness TFT LCD front view

AUO C100HAT01.2 10.0" 1560x700 Ultra-Wide High Brightness Stretch TFT LCD Panel

Price: $138.00
$135.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

AUO C100HAT01.2 10.0" 1560x700 Ultra-Wide High Brightness Stretch TFT LCD Panel

Product Information Product Specifications
Model:
C100HAT01.2
Brand:
AUO
Application:
Industrial
Size:
10.0"
Resolution:
1560(RGB)×700
Contrast Ratio:
1000:1 (Typ.) (TM)
Viewing Angle:
80/80/80/80 (Typ.)(CR≥10)
Lamp Type:
WLED, 10K hrs, Without Driver
Signal Interface:
LVDS (2 ch, 8-bit) Connector
Panel Type:
a-Si TFT-LCD, LCM
Active Area:
231.66(H)×103.95(V) mm
Storage Temp:
-40 ~ 95 °C
Operating Temp:
-30 ~ 85 °C
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
115
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

Product Introduction

The AUO C100HAT01.2 is a highly specialized 10.0-inch TFT LCD panel featuring an ultra-wide 1560x700 stretch resolution (approximately 2.23:1 aspect ratio). Engineered by AUO for demanding visual applications, this display delivers a high-brightness backlight system that remains crystal clear even under intense ambient light or direct sunlight. Unlike standard 16:9 or 4:3 panels, the C100HAT01.2's elongated bar-type format is purpose-built for automotive digital instrument clusters, outdoor stretch signage, retail shelf-edge displays, and industrial status indicators where horizontal space dominates. The combination of its non-standard widescreen geometry and high luminance output makes it an irreplaceable component for modern smart cockpit designs and eye-catching commercial advertising. At ZY LCD Shop, we specialize in sourcing these rare, non-standard AUO stretch modules. Every C100HAT01.2 unit undergoes rigorous testing for brightness output, color uniformity, and signal integrity before dispatch. Transform your display architecture today with our guaranteed authentic modules.

Core Product Features

  • Ultra-Wide Stretch Format: The 1560x700 resolution in a ~2.23:1 aspect ratio creates a sleek horizontal "bar" shape, ideal for instrument clusters and narrow signage installations where vertical space is limited.

  • High Brightness Sunlight Readability: An advanced high-luminance LED backlight (typically 800-1000+ nits) ensures vivid, wash-out-free visibility under harsh outdoor sunlight or bright retail lighting.

  • Seamless Bar Signage Integration: The elongated profile allows multiple units to be tiled horizontally for immersive panoramic advertising walls without distracting bezel interruptions.

  • Automotive-Grade Reliability: Designed to withstand the vibration, humidity, and wide temperature fluctuations inherent in vehicle cabins and outdoor enclosures.

  • Sharp Wide-Canvas Rendering: 1560 horizontal pixels provide ample room for displaying speedometers, navigation ribbons, scrolling tickers, and telemetry data simultaneously.

  • Complete LCM Assembly: Supplied as a fully integrated Liquid Crystal Module with built-in LED backlight and structural frame, streamlining integration for OEM manufacturers.

Technical Specifications

ParameterSpecification Details
Part NumberC100HAT01.2
ManufacturerAUO (AU Optronics)
Diagonal Size10.0 Inch
Native Resolution1560 x 700 (Ultra-Wide Stretch)
Aspect Ratio~2.23:1 (Bar-Type / Stretch)
Panel Technologya-Si TFT-LCD
Brightness LevelHigh Brightness (800-1000+ nits typical)
Signal InterfaceLVDS / MIPI DSI (Verify Pinout)
Backlight TypeHigh-Power WLED
Operating Temperature-20°C to +70°C (Wide Temp Grade)
Target ApplicationInstrument Clusters, Stretch Signage, Shelf Displays

Typical Applications

  • Automotive Digital Instrument Clusters & Smart Cockpit Dashboards

  • Outdoor Stretch Bar Signage & Panoramic Advertising Walls

  • Retail Shelf-Edge Displays & Supermarket Price Tag Screens

  • Industrial Status Indicator Strips & Control Room Tickers

  • Gaming Simulator Dashboards & Racing Rig Instrument Panels

  • Public Transport Information Displays (Bus/Train Route Strips)

Why Source from ZY LCD Shop?

  • Non-Standard Display Specialists: Ultra-wide stretch panels are notoriously difficult to source. We maintain deep inventory of rare AUO 10-inch high-brightness modules that standard distributors do not carry.

  • Strict Luminance Verification: Every C100HAT01.2 is tested with professional lux meters to guarantee the high-brightness output meets strict sunlight-readable standards.

  • Secure Transit Packaging: Elongated glass substrates are prone to flexing and micro-cracks. We use custom rigid foam, anti-static shielding, and reinforced cartons for safe global shipping.

  • Cross-Reference Engineering Support: Designing a custom instrument cluster or stretch wall? Our technical team can help verify mechanical dimensions, thermal requirements, and signal compatibility.

FAQ (Frequently Asked Questions)

Why is the C100HAT01.2 resolution 1560x700 instead of a standard 1920x1080?

The 1560x700 resolution is deliberately engineered as an ultra-wide "stretch" format (approximately 2.23:1 aspect ratio) rather than a conventional 16:9 screen. This elongated geometry is optimized for applications like automotive instrument clusters and bar-type signage, where the display needs to be wide but physically short in height. A standard 1920x1080 panel would be too tall for these narrow installations and waste valuable vertical space.

Can I use this 10" stretch panel for a custom automotive digital dashboard?

Yes, absolutely. The C100HAT01.2 is widely used by automotive OEMs and aftermarket integrators for digital instrument clusters and smart cockpit dashboards. Its high brightness ensures readability under direct windshield sunlight, while the wide horizontal canvas is perfect for rendering speedometers, tachometers, and navigation ribbons side-by-side. You will need a compatible driver board supporting the 1560x700 resolution via LVDS or MIPI DSI.

How bright is this panel, and is it truly sunlight readable?

The C100HAT01.2 features a high-power LED backlight system typically delivering 800 to 1000+ nits of luminance, significantly brighter than standard indoor panels (300-500 nits). This high brightness, combined with anti-glare surface treatment, makes it genuinely readable under harsh outdoor sunlight and bright commercial lighting environments.

Where can I download the C100HAT01.2 datasheet and pinout definition?

We provide the official AUO PDF datasheet, including precise mechanical outlines, active area dimensions, brightness specifications, and LVDS/MIPI pin configurations, to verified buyers. Please contact our technical support department directly via email or phone to request your copy.

Can multiple C100HAT01.2 panels be tiled together for a panoramic stretch wall?

Yes. The elongated bar-type form factor is designed with seamless tiling in mind. Multiple units can be mounted horizontally to create immersive panoramic advertising walls or long information tickers. For optimal results, we recommend using panels from the same production batch to ensure consistent brightness and color calibration across the entire wall.

Do you offer bulk pricing for automotive suppliers and signage integrators?

Absolutely. We actively support B2B wholesale orders for automotive instrument cluster manufacturers, digital signage integrators, and retail display OEMs. Reach out to our sales department for custom tiered pricing based on your project's volume requirements.

    Product Comparison
    Model:
    Size:
    Resolution:
    Brightness:
    Contrast Ratio:
    Viewing Angle:
    Lamp Type:
    Signal Interface:
    Panel Type:
    AUO C100HAT01.2 10.0" 1560x700 Ultra-Wide High Brightness Stretch TFT LCD Panel

    AUO C100HAT01.2 10.0" 1560x700 Ultra-Wide High Brightness Stretch TFT LCD Panel

    C100HAT01.2

    10.0"
    1560(RGB)×700
    1000:1 (Typ.) (TM)
    80/80/80/80 (Typ.)(CR≥10)
    WLED, 10K hrs, Without Driver
    LVDS (2 ch, 8-bit) Connector
    a-Si TFT-LCD, LCM
    C100HAT01.1          10"        tft     screen       for         AUO

    C100HAT01.1 10" tft screen for AUO

    C100HAT01.1

    10.1"
    1560(RGB)×700 171PPI
    940 cd/m² (Min.)
    1000:1 (Typ.) (TM)
    1000:1 (Typ.) (TM)
    WLED [3 strings × 2CN] , 10K hours , W/O Driver
    LVDS (2 ch, 8-bit) 60 pins Connector
    a-Si TFT-LCD, LCM
    C100HAT01.0      10"       tft     screen      for        AUO

    C100HAT01.0 10" tft screen for AUO

    C100HAT01.0

    10.0"
    1560(RGB)×700 171PPI
    940 cd/m² (Min.)
    1000:1 (Typ.) (TM)
    80/80/80/80 (Typ.)(CR≥10)
    3 strings × 2CN WLED , 10K hours , Without Driver
    LVDS (2 ch, 8-bit) , 60 pins Connector
    a-Si TFT-LCD, LCM
