C090XAC01.0 AUO 9 inch 768*1024 lcd display screens
C090XAC01.0 AUO 9 inch 768*1024 lcd display screens
Price: $135.00
$130.00/ piece
Add to cart

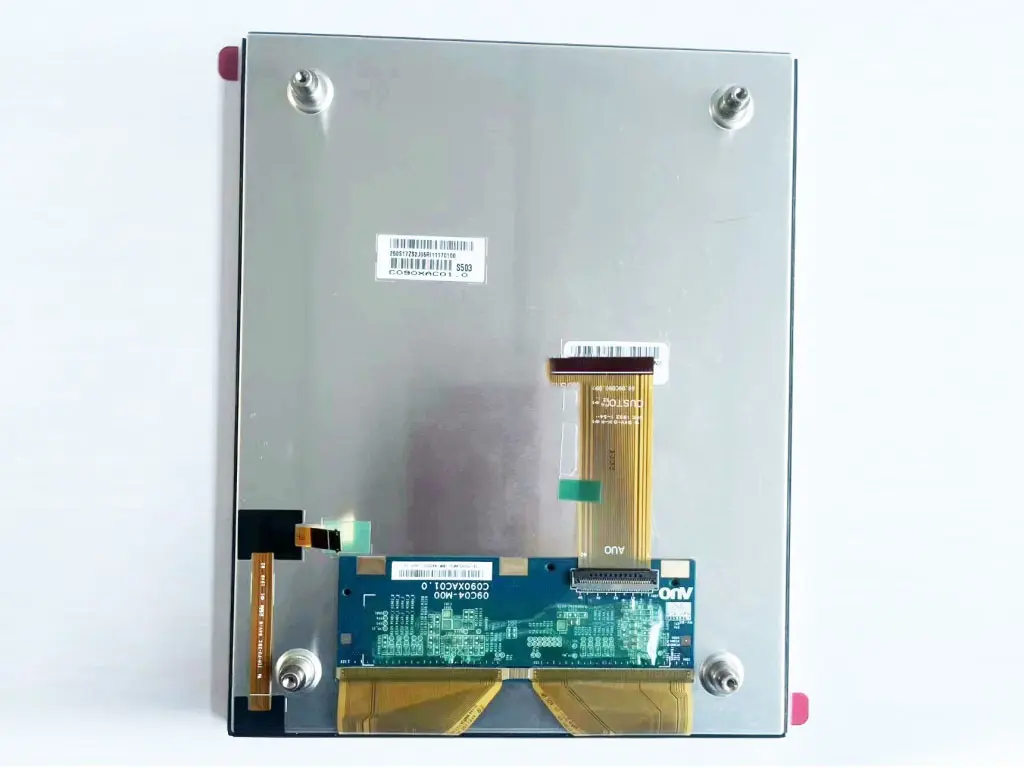

C090XAC01.0 AUO  lcd display screens

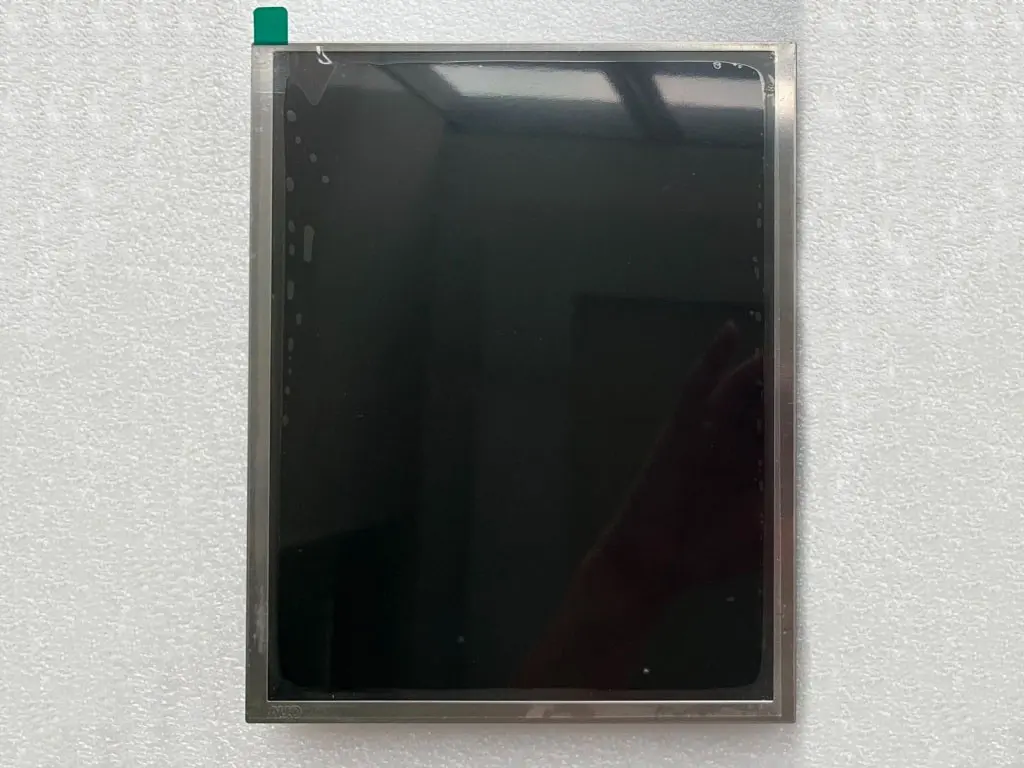

C090XAC01.0 AUO  lcd display screens
C090XAC01.0 AUO  lcd display screens
C090XAC01.0 AUO  lcd display screens

C090XAC01.0 AUO 9 inch 768*1024 lcd display screens

Price: $135.00
$130.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

C090XAC01.0 AUO 9 inch 768*1024 lcd display screens

Product Information Product Specifications
Model:
C090XAC01.0
Brand:
AUO
Application:
Automotive Display
Size:
9"
Resolution:
768(RGB)×1024, XGA, 3:4
Brightness:
600 cd/m² (Min.)
Contrast Ratio:
1000:1 (Min.) (TM)
Viewing Angle:
70/70/70/70 (Typ.)(CR≥10)
Lamp Type:
10S3P WLED, Without Driver
Signal Interface:
LVDS (1 ch, 8-bit), 40 pins FPC
Panel Type:
a-Si TFT-LCD, LCM
Frame Rate:
60Hz
Active Area:
138.24(W)×184.32(H) mm
Outline:
159.36(W)×198.5(H)×16.8(D) mm
Storage Temp:
-40 ~ 95 °C
Operating Temp:
-30 ~ 85 °C
Support Color:
16.7M
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
375
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
0.500 KG
Overview

Original AUO C090XAC01.0 Industrial Grade TFT-LCD Display Module, 9-inch 3:4 portrait XGA resolution 768×1024, 600cd/m² ultra-high brightness, 1000:1 high contrast ratio, AHVA full viewing angle display, wide operating temperature from -30℃ to 85℃. Adopts 40-pin LVDS interface, WLED backlight. Designed for harsh environments such as industrial control, medical equipment and automotive displays. Reliable quality, stable supply in mass production.

Brand: AUO, a global leading LCD panel manufacturer from Taiwan, with over 30 years of R&D and production experience in display technology, renowned for high reliability and advanced technology, widely used in high-end fields such as industry, medical and automotive

Model: C090XAC01.0 (100% original genuine, not refurbished/used, Grade A no dead pixels)

Core Advantages: 9-inch 3:4 portrait XGA resolution, 600cd/m² industrial ultra-high brightness, AHVA full viewing angle display, -30℃~85℃ wide temperature operation, 40-pin LVDS high-speed interface, high vibration resistance

Product Positioning: High-end industrial-grade TFT-LCD display module designed for embedded systems with extremely high requirements for brightness, temperature adaptability and stability

Production Status: In Mass Production, continuously manufactured by AUO official with stable lead time


C090XAC01.0 AUO lcd display screens Specifications:

CategorySpecificationDetails
Basic InformationBrandAUO

ModelC090XAC01.0

Screen Size9.0 Inches (Diagonal)

Aspect Ratio3:4 (Portrait)

Resolution768(RGB)×1024 (XGA)

Pixel Density141PPI

Pixel ArrangementRGB Vertical Stripe

Panel Typea-Si TFT-LCD, AHVA

Display ModeNormally Black (Transmissive)
Display CharacteristicsBrightness600cd/m² (Minimum)

Contrast Ratio1000:1 (Minimum)

Viewing Angle (CR≥10)70°/70°/70°/70° (L/R/U/D) Full Viewing Angle

Color Depth8-bit

Color Number16.7M (True Color)

Response Time20ms (Tr+Td, Maximum)

Surface TreatmentAnti-glare, Hard Coating (3H)
Backlight SystemBacklight TypeWLED (White, 10S3P)

Backlight DriverNo Built-in Driver

Backlight Life30,000 Hours (Typical)
Electrical CharacteristicsInterface TypeLVDS (1 Channel 8-bit)

Connector Pins40 Pins FPC

Input Voltage3.3V (Typical)

Power ConsumptionApprox. 8.5W (Typical)
Environmental CharacteristicsOperating Temperature-30℃ ~ +85℃ (Industrial Wide Temperature)

Storage Temperature-40℃ ~ +95℃

Vibration Resistance10~2000Hz, 2G (Industrial Standard)
Mechanical CharacteristicsOutline Dimension159.36(W)×198.5(H)×16.8(D)mm

Active Area138.24(W)×184.32(H)mm

WeightApprox. 425g (Typical)

Mounting MethodRear Screw Fixing
Certification & ComplianceEnvironmental CertificationRoHS

Production StatusIn Mass Production (Released Sep 2017)


C090XAC01.0 AUO lcd display screens Applications:

Industrial Automation: Industrial control terminals, PLC HMI, equipment operation panels, production line monitoring systems

 Medical Equipment: Portable medical instruments, patient monitors, medical analyzers, diagnostic device displays

 Automotive Displays: Construction machinery displays, forklift operation terminals, marine navigation systems, rail transit displays

Smart Devices: Outdoor industrial terminals, IoT display modules, self-service terminals, security monitoring equipment

 Other Applications: Test and measurement instruments, energy management systems, aviation ground equipment, military equipment displays


FAQ:

 Q1: Is C090XAC01.0 an original AUO product?

A1: Yes, all C090XAC01.0 LCD modules we sell are 100% original AUO products with Grade A no dead pixels quality guarantee.
Q2: Is this screen portrait or landscape? What is the resolution?A2: C090XAC01.0 is a 3:4 portrait display module with a standard resolution of 768(RGB)×1024 (XGA) and a pixel density of 141PPI.
Q3: What type of interface does it use? How many pins? Does it have a built-in backlight driver?A3: It uses a standard 40-pin FPC LVDS interface (1 channel 8-bit). It does not include a built-in backlight driver and requires an external driver board.
Q4: What is the brightness and operating temperature range of this module?A4: The brightness is as high as 600cd/m² (minimum), much higher than the 300cd/m² of ordinary consumer screens; the operating temperature range is -30℃ to +85℃, and the storage temperature range is -40℃ to +95℃, fully adapting to extreme industrial environments.
Q5: Is this product currently in production? How is the supply situation?A5: Yes, C090XAC01.0 is currently in mass production by AUO official. We can provide long-term stable supply services and support small batch trial orders and large batch purchases.


Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
C090XAC01.0 AUO 9 inch 768*1024 lcd display screens

C090XAC01.0 AUO 9 inch 768*1024 lcd display screens

C090XAC01.0

9"
768(RGB)×1024, XGA, 3:4
600 cd/m² (Min.)
1000:1 (Min.) (TM)
70/70/70/70 (Typ.)(CR≥10)
10S3P WLED, Without Driver
LVDS (1 ch, 8-bit), 40 pins FPC
a-Si TFT-LCD, LCM
C090VAN01.0  AUO 9 inch  lcd panel

C090VAN01.0 AUO 9 inch lcd panel

C090VAN01.0

9"
800*480
900:1
75/75/70/70
WLED
LVDS (1 ch, 8-bit) FPC
a-Si TFT-LCD, LCM
C090EAN02.5  AUO 9 inch   panel lcd

C090EAN02.5 AUO 9 inch panel lcd

C090EAN02.5

9"
1280*720
650
1000 : 1
60/60/60/60
WLED
60 pins
a-Si TFT-LCD, LCM
C090EAN04.1  AUO  9 inch lcd display screens

C090EAN04.1 AUO 9 inch lcd display screens

C090EAN04.1

9"
1280*720
900
1000:1
80/80/80/80
WLED
40 pins
a-Si TFT-LCD, LCM
C090XAC01.0 is a 9" a-Si TFT-LCD, LCM Display screen Product from AUO.According to AUO's product specification sheet,C090XAC01.0 display has a resolution of 768(RGB)×1024, XGA, 3:4, Contrast Ratio is 1000:1 (Min.) (TM),Viewing Angle is 70/70/70/70 (Typ.)(CR≥10),Lamp Type is 10S3P WLED, Without Driver,Signal Interface is LVDS (1 ch, 8-bit), 40 pins FPC,Brightness is 600 cd/m² (Min.).Based on its characteristics, this model is recommended for application in Automotive Display and other products.The weight of C090XAC01.0 after packaging is 0.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
