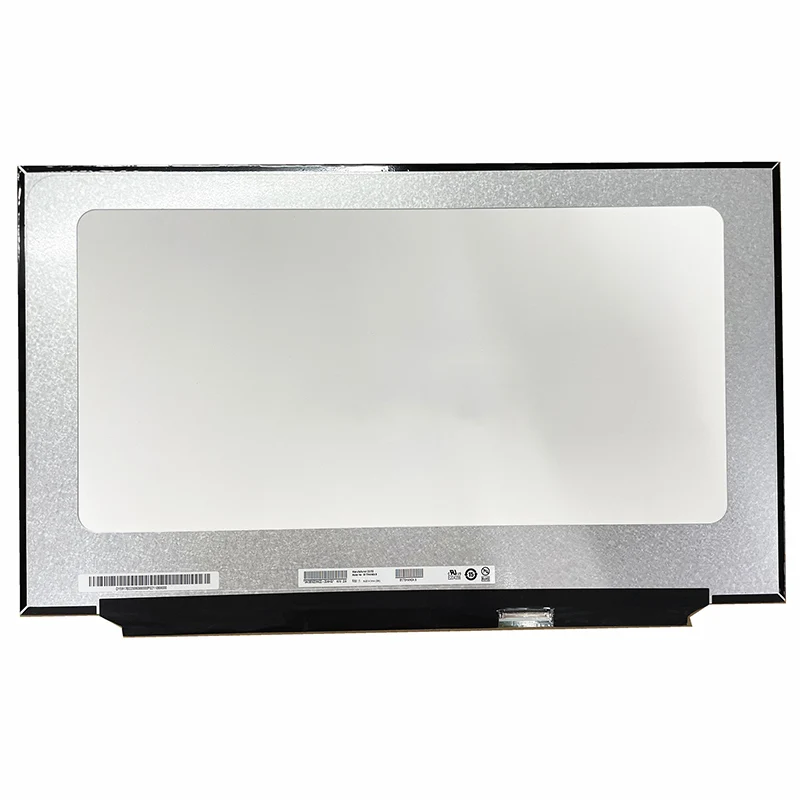

B173HAN04.9 AUO 17.3 inch 1920*1080 lcd display panel

Product Information Product Specifications
Model:
B173HAN04.9
Brand:
AUO
Application:
Industrial
Size:
17.3"
Resolution:
1920(RGB)×1080, FHD 127PPI
Brightness:
250 cd/m2 (Typ.)
Contrast Ratio:
800 : 1 (Typ.) (TM)
Viewing Angle:
85/85/85/85 (Typ.)(CR≥10)
Lamp Type:
WLED , 15K hours , With LED Driver
Signal Interface:
eDP (4 Lanes) , eDP1.3 , 40 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
29
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
4.000 KG
Overview

B173HAN04.9 is AUO mature mass-produced slim 17.3-inch 144Hz AHVA gaming notebook LCD module, factory pre-installed on mainstream ASUS, MSI, HP mid-range gaming laptops worldwide.

250 cd/m² moderate brightness balances notebook battery endurance and indoor display clarity; 800:1 contrast ratio presents distinct black game scene layers, 16.7M true color restores rich game map and graphic design color details. Flicker-free DC dimming design avoids stroboscopic eye strain during long gaming sessions, built-in FreeSync technology eliminates game screen tearing and motion blur.

Full Technical Specification Table

CategoryParameterTypical Specification
Basic InfoFull Part NumberB173HAN04.9

ManufacturerAUO Gaming Notebook AHVA TFT Series

Screen Size17.3 inch, landscape 16:9 widescreen
Display CoreNative Resolution1920(RGB) × 1080 FHD, 127 PPI

Panel Techa-Si AHVA TFT-LCD, Transmissive Normally Black

Pixel ArrangementRGB vertical stripe
Optical PerformanceActive Display Area (AA)381.888(W) × 214.812(H) mm

Pixel Pitch0.1989 × 0.1989 mm

Typical Brightness250 cd/m² standard gaming notebook brightness

Static Contrast Ratio800:1 @ 25℃ ambient

Color Depth / Gamut8-bit RGB, 16.7M true colors, 45% NTSC / 52% sRGB

Viewing Angle (CR≥10)L/R/U/D:85°/85°/85°/85° fully symmetrical wide view

Response Time (Tr+Tf)Total 25ms typical

Native Refresh RateFixed 144Hz, support AMD FreeSync variable refresh
Mechanical SpecOverall Outline Dimension395.5(W) × 223.75(H) × 3.5(D) mm ultra-slim PCB back frame

Net Weight~620g slim notebook module

Surface TreatmentMatte AG anti-glare (Haze 6%), 3H scratch-resistant hard coat
Electrical InterfaceConnector40Pin 0.5mm pitch bottom outlet 4-Lane eDP1.3 FPC

Logic Supply VoltageDC 3.3V (3.0V ~ 3.6V tolerance)
Backlight SystemLight SourceSide-emitting SMD WLED array

Onboard CircuitIntegrated WLED constant current drive IC, no external LED driver required

WLED Rated Lifespan15,000 hours to half brightness, mercury-free
Special Display TechSync TechnologyAMD FreeSync, PSR1 panel self-refresh (power saving for standby)

Flicker ControlFlicker-free DC dimming, no PWM stroboscopic
Environmental RatingOperating Temperature0 ℃ ~ +50 ℃ notebook commercial grade

Storage Temperature-20 ℃ ~ +60 ℃ wide storage range

Operating Humidity10% ~ 90% RH non-condensing
Quality & ComplianceQuality GradeNew Original A: zero bright/dark dot, no line mura, uniform backlight without edge light leakage

Stock StatusIn-Stock; full pixel scan + wide temp cycling aging test before shipment

CertificationRoHS Lead-Free, CE, UL certified
Touch MatchingBare LCM only; no built-in touch, external capacitive touch glass for DIY kiosk bonding

Core Advantages

  1. 144Hz high refresh rate + AMD FreeSync, eliminate game screen tearing, smooth motion for FPS/racing games

  2. AHVA 85° full four-side symmetrical wide viewing angle, no color shift from any viewing position

  3. Flicker-free DC dimming backlight, reduce eye fatigue for long-time gaming and office work

  4. Built-in WLED constant current drive circuit, no extra LED power supply needed for DIY monitor assembly

  5. Matte AG anti-glare coating, avoid indoor light reflection interference

  6. Ultra-slim 3.5mm thickness, compatible with most narrow-bezel 17.3-inch gaming notebook molds

  7. PSR1 panel self-refresh technology, effectively reduce notebook standby power consumption and extend battery life

  8. Original AUO mass production gaming panel, stable spot stock for notebook maintenance & DIY monitor OEM orders

Typical Application Scenarios

  1. Broken screen replacement for ASUS/MSI/HP/Lenovo 17.3-inch 144Hz gaming notebooks

  2. DIY portable high-refresh gaming monitor core display panel

  3. Small indoor shopping mall, internet cafe wall-mounted mini advertising playback screen

  4. Graphic design, video editing entry-level wide-screen auxiliary display terminal

  5. Industrial embedded 17.3-inch equipment monitoring touch all-in-one core screen (after touch optical bonding)

  6. Spare replacement module for AUO B173HAN04 series 17.3-inch eDP 144Hz AHVA TFT LCM

 FAQ

Q1: Does B173HAN04.9 need an external WLED driver board?

A1: No. Independent WLED constant current drive IC is integrated on the module back frame. Only 3.3V main logic power supply is required to light the backlight normally.

Q2: Can 2-lane eDP 60Hz notebook motherboards drive this panel?

A2: No, native 4-lane eDP1.3 architecture is required to output complete 144Hz high frame image; 2-lane eDP boards will lock to low refresh rate or split screen.

Q3: Can B173HAN04.0 directly replace B173HAN04.9?

A3: Mechanical outline, mounting holes and 40Pin eDP pinout are fully consistent; only minor backlight brightness difference, direct plug-and-play replacement.

Q4: Does this panel have PWM flicker?

A4: Adopt full DC dimming scheme, no PWM high-frequency stroboscopic, more eye-friendly for long-time use.

Q5: Does the LCM include touch panel as standard?

A5: Bare LCD module without touch layer; separate matched 17.3-inch capacitive touch glass needs optical bonding to form touch display assembly.

Q6: Are panels available in stock and ready for shipment?

A6: Yes, new original A-grade AUO gaming LCD modules are warehoused. Shipment within 1–3 working days after order confirmation, each unit completes full pixel and backlight uniformity inspection before delivery.
