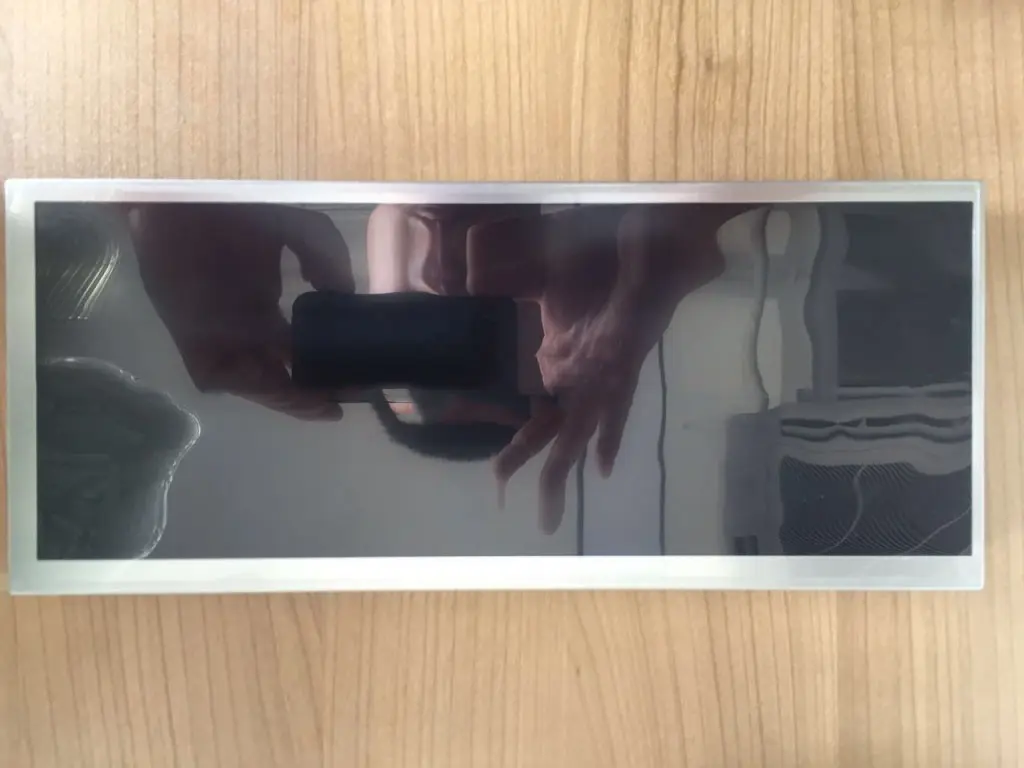

AV123Z7M-N11 BOE 12.3 inch 1920(RGB)×720 tft lcd module
AV123Z7M-N11 BOE 12.3 inch 1920(RGB)×720 tft lcd module
Price: $90.00
$85.00/ piece
Add to cart
AV123Z7M-N11 BOE
AV123Z7M-N11 BOE
AV123Z7M-N11 BOE
AV123Z7M-N11 BOE

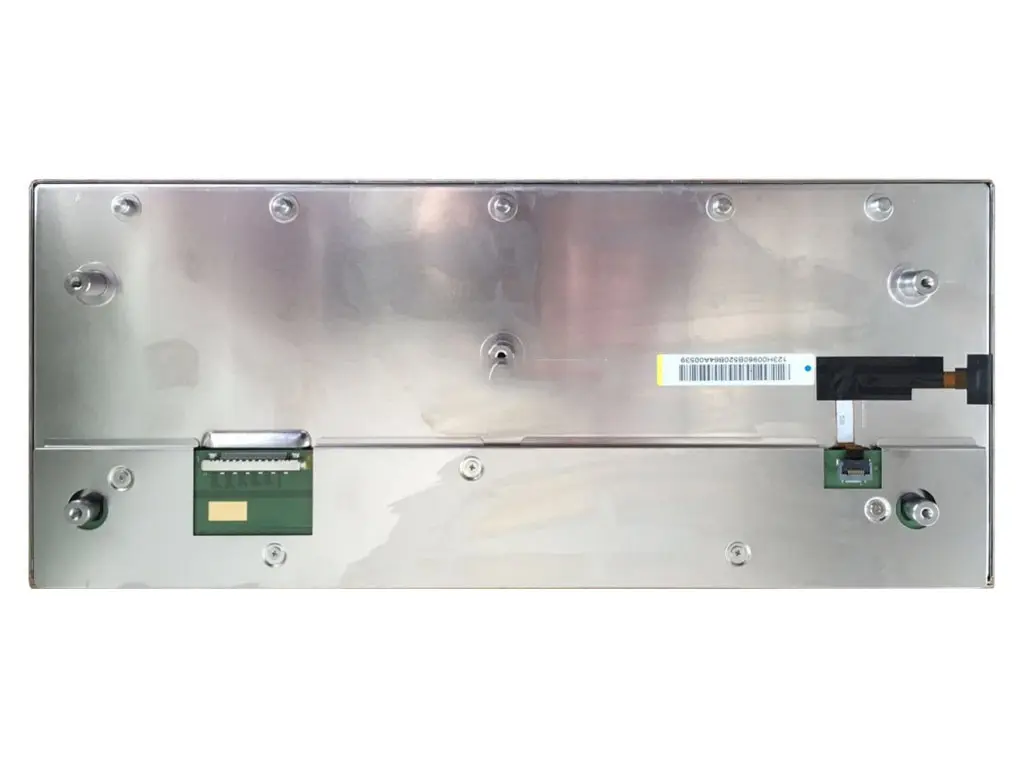

AV123Z7M-N11 BOE 12.3 inch 1920(RGB)×720 tft lcd module

Price: $90.00
$85.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

AV123Z7M-N11 BOE 12.3 inch 1920(RGB)×720 tft lcd module

Product Information Product Specifications
Model:
AV123Z7M-N11
Brand:
BOE
Application:
Round Display
Size:
12.3"
Resolution:
1920(RGB)×720, 8:3
Brightness:
800 cd/m² (Typ.)
Contrast Ratio:
1000:1 (Typ.) (TM)
Viewing Angle:
80/80/80/80 (Typ.)(CR≥10)
Lamp Type:
9S4P WLED, 50K hrs, No Driver
Signal Interface:
LVDS (2 ch, 8-bit), 41 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Frame Rate:
60Hz
Active Area:
292.032×109.512 mm (H×V)
Outline:
307.9×130.27 mm (H×V)
Storage Temp:
-40 ~ 90 °C
Operating Temp:
-30 ~ 85 °C
Support Color:
16.7M, 70% NTSC
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
359
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.500 KG
Overview

BOE Technology Group Co., Ltd. is the world's largest automotive display panel supplier, accounting for more than 35% of global automotive LCD display shipments in 2024, ranking first in the world for five consecutive years. The AV123Z7M-N11 is a 12.3-inch 8:3 ultra-wide a-Si TFT-LCD module specially designed by BOE for intelligent cockpits, featuring 1920(RGB)×720 HD resolution with 167PPI pixel density, delivering clear and delicate display effects.
This product adopts BOE ADS Advanced Super View technology, providing 1000:1 high contrast ratio and symmetrical 80° all-viewing angle with accurate color reproduction, supporting 16.7M colors and 70% NTSC color gamut. Equipped with a 41-pin LVDS dual-channel 8-bit interface, it offers stable and anti-interference transmission, widely compatible with mainstream automotive master chips. The product adopts automotive-grade wide temperature design, operating in a temperature range of -30°C to 85°C, storing in a temperature range of -40°C to 90°C, and has a backlight lifespan of up to 50,000 hours. It has passed strict vibration, shock and high-low temperature cycle tests, able to adapt to various complex automotive environments, and is currently in mass production.


AV123Z7M-N11 BOE  tft lcd module Highlights:

Automotive-Grade Reliability Design:Certified by AEC-Q100 standard, instant start at -30°C extreme cold and stable operation at 85°C high temperature, meeting the requirements of the entire vehicle life cycle.

800cd/m² High Brightness:Effectively suppresses strong light diffuse reflection, clearly displays content even under direct sunlight at noon, improving driving safety.

50,000 Hours Ultra-Long Backlight Lifespan:Adopts high-quality WLED backlight, with an average mean time between failures (MTBF) of more than 10 years, far exceeding the industry average.

Standard LVDS Interface:Widely compatible with mainstream automotive chip platforms such as NXP, Texas Instruments and Renesas, with short development cycle and low integration difficulty.

Anti-Glare Surface Treatment:Effectively reduces ambient light reflection, reduces driver visual fatigue and improves driving comfort.

BOE Original Quality Assurance:World-leading manufacturing process and strict quality control system ensure product consistency and reliability.


AV123Z7M-N11 BOE  tft lcd module Specifications:

Parameter CategoryDetailed Specifications
BrandBOE Technology
ModelAV123Z7M-N11
Panel Typea-Si TFT-LCD, LCM (Liquid Crystal Module)
Diagonal Size12.3 Inches
Aspect Ratio8:3 (Ultra-Wide)
Resolution1920(RGB)×720
Pixel Density167PPI
Pixel ArrangementRGB Vertical Stripe
Active Area292.032(W)×109.512(H) mm
Viewable Area295.03(W)×112.51(H) mm
Outline Dimension306.0(W)×123.0(H)×10.5(T) mm (Typical)
Module Weight520±50g
Display ModeADS, Normally Black, Transmissive
Surface TreatmentAnti-Glare (AG)
Brightness800 cd/m² (Typical)
Contrast Ratio1000:1 (Typical, Transmission)
Viewing Angle80°/80°/80°/80° (Typical, CR≥10), Symmetric
Display Colors16.7M Colors, 70% NTSC Color Gamut
Response Time30ms (Typical, Tr+Td)
Refresh Rate60Hz
Backlight TypeWLED White LED, 9S4P Configuration, Without Driver IC
Backlight Lifespan50,000 Hours (Typical, Luminance Decay to 50% of Initial Value)
Signal InterfaceLVDS, 2 Data Lanes, 8-bit, 41-pin Connector
Input Voltage3.3V(VCC)/6.27V(AVDD)/-12V(VGL)/18V(VGH) (Typical)
Operating Temperature-30℃ ~ 85℃ (Automotive Grade)
Storage Temperature-40℃ ~ 90℃
Production StatusIn Mass Production
Environmental CertificationRoHS Compliant, REACH Compliant
Reliability StandardAEC-Q100 Automotive Electronic Standard


AV123Z7M-N11 BOE  tft lcd module Applications:

Automotive Digital Dashboards:Specially designed for full LCD instrument clusters of traditional fuel vehicles and new energy vehicles. The 8:3 ultra-wide aspect ratio perfectly adapts to the split-screen display layout of speed, RPM, navigation and driving assistance information.

Automotive Center Console Secondary Screens:Used for passenger entertainment screens, air conditioning control screens and vehicle status display screens in the center console. High brightness ensures clear visibility under strong sunlight.

Head-Up Display (HUD) Projection Sources:As the core display component of AR-HUD and W-HUD, high contrast ratio and fast response time ensure clear projection images without ghosting.

Commercial Vehicle and Construction Machinery Displays:Suitable for instrument clusters and monitoring screens of trucks, buses, excavators, loaders and other commercial vehicles and construction machinery. Wide temperature design adapts to harsh working conditions.

Industrial Control and Special Equipment:Used in rail transit on-board displays, aviation ground equipment, medical monitoring equipment and other industrial and special fields requiring ultra-wide screen display.


FAQ:

Q1: Does the AV123Z7M-N11 support touch screen integration?A1: The standard version does not include a touch screen, but capacitive multi-touch screen and anti-glare cover glass integration can be customized according to customer requirements.
Q2: What is the minimum order quantity for this display?A2: Sample orders are accepted from 1 piece, and bulk orders are determined based on inventory status. Please contact our sales team for details.
Q3: What is the delivery time for the product?A3: In-stock orders are usually shipped within 1-3 business days, and custom orders have a delivery cycle of 6-8 weeks.
Q4: Do you provide supporting driver boards and technical support?A4: We can provide supporting LVDS driver boards, backlight driver boards and complete technical documentation, including specifications, hardware design references and driver debugging guides. Our professional technical team can provide full technical support.
Q5: Does the product comply with automotive industry standards?A5: Yes, this product has passed the AEC-Q100 automotive electronic reliability standard certification and meets the ISO 16750 automotive environmental test requirements.
