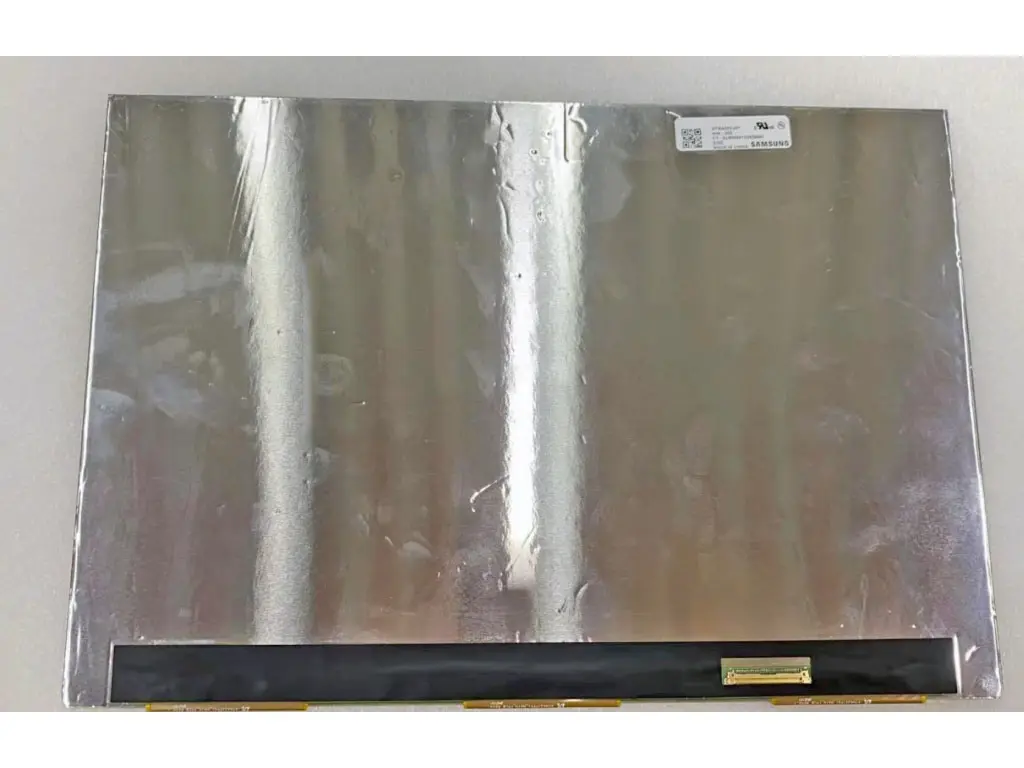

ATNA60YV07 Samsung 16 inch 3840*2400 lcd display panel
The ATNA60YV07 (Product Code: SDC415C) is a high-performance 16.0-inch AM-OLED display module manufactured by Samsung Display Co., Ltd., a global leader in OLED display technology. While often referred to as an "LCD panel" in search queries, this is actually an active-matrix organic light-emitting diode (AM-OLED) display featuring self-luminous pixels that deliver exceptional contrast and color performance.
This premium panel features a WQUXGA resolution of 3840(RGB)×2400 pixels with a 16:10 aspect ratio, providing 11% more vertical screen real estate than traditional 16:9 displays. With a pixel density of 283 PPI, it delivers incredibly sharp and detailed visuals, making text and images appear crystal clear.
ATNA60YV07 Samsung lcd display panel Specification:
| Category | Parameter | Value |
|---|---|---|
| Basic Information | Manufacturer | Samsung Display Co., Ltd. |
| Model Number | ATNA60YV07 | |
| Alias | SDC415C | |
| Display Type | AM-OLED, Self-luminous, Full Module | |
| Diagonal Size | 16.0 inches | |
| RoHS Compliance | Yes | |
| Production Status | Discontinued (Replacement market available) | |
| Pixel Characteristics | Resolution | 3840(RGB)×2400 (WQUXGA) |
| Pixel Density | 283 PPI | |
| Pixel Configuration | RGB Vertical Stripe | |
| Aspect Ratio | 16:10 | |
| Dot Pitch | 0.0299×0.0897 (H×V) mm | |
| Pixel Pitch | 0.0897×0.0897 (H×V) mm | |
| Optical Characteristics | Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 100000:1 (Typ.) (TM) | |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) | |
| Best View Direction | Symmetric | |
| Color Depth | 1.07B colors (10-bit) | |
| Color Gamut | 100% DCI-P3 | |
| Response Time | 1 (Typ.)(Tr+Td) ms | |
| Refresh Rate | 60 Hz | |
| Optical Mode | AM-OLED, Normally Black | |
| Mechanical Characteristics | Active Area | 344.448(W) × 215.28(H) mm |
| Outline Dimensions | 348.45(W) × 223.01(H) × 3.24(D) mm | |
| Surface Treatment | Glare (Haze 0%) | |
| Electrical Characteristics | Supply Voltage | 3.3V (Typ.) (Logic) |
| Signal Interface | 40 pins, eDP 1.4b (4 lanes HBR2, 5.4G/lane) | |
| Environmental Characteristics | Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -40°C ~ 85°C |
Infinite Contrast with Perfect Blacks: 100000:1 contrast ratio with self-luminous pixels that can be completely turned off, delivering true blacks and exceptional depth for movies, games and professional content.
Professional Color Accuracy: 100% DCI-P3 color gamut coverage with 1.07 billion colors ensures accurate color reproduction for graphic design, video editing and digital content creation.
Ultra-Fast 1ms Response Time: Eliminates motion blur and ghosting, providing smooth and crisp visuals for fast-paced gaming and high-speed video playback.
16:10 Productivity Aspect Ratio: Offers 11% more vertical screen space than traditional 16:9 displays, ideal for document editing, coding and multitasking.
Ultra-Thin and Lightweight Design: Only 3.24mm thick OLED module allows for slim and lightweight laptop designs, improving portability for mobile professionals.
ATNA60YV07 Samsung lcd display panel Application:
Premium Laptops and Ultrabooks: Replacement screens for Acer Swift Edge 16 and other high-end 16-inch 16:10 laptops
Portable Monitors: Compact high-resolution OLED displays for laptops, smartphones and gaming consoles
Creative Workstations: Mobile workstations for graphic designers, video editors and photographers requiring accurate color reproduction
Gaming Laptops: High-performance gaming laptops needing fast response times and vibrant visuals
Digital Content Creation: On-location video editing, photo retouching and content production
Business and Productivity: Professional laptops for business users, executives and remote workers
FAQ:
Q1: Is the ATNA60YV07 an LCD or OLED display?
A1: While often referred to as an "LCD panel" in search results, the ATNA60YV07 is actually an AM-OLED (Active-Matrix Organic Light-Emitting Diode) display with self-luminous pixels.
Q2: Is this display still in production?
A2: No, Samsung Display discontinued the ATNA60YV07. However, it remains widely available as a replacement part through authorized distributors and component suppliers.
Q3: What laptops use the ATNA60YV07 display?
A3: The ATNA60YV07 was primarily used in the Acer Swift Edge 16 series of premium ultrabooks.
Q4: Does this display support HDR?
A4: Yes, the ATNA60YV07 supports HDR content, delivering enhanced dynamic range with brighter highlights and deeper blacks.
Q5: What is the minimum order quantity (MOQ) for this display?
A5: MOQ varies by supplier, but most distributors offer single-unit purchases for replacement and evaluation purposes
