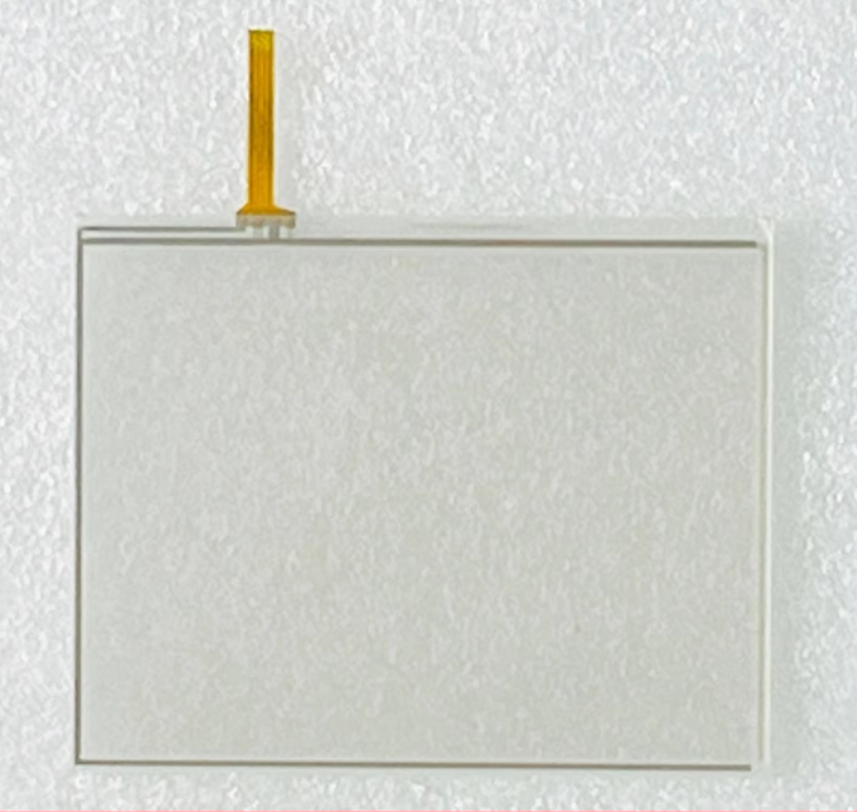

AMT98969 5.7 Inch 4-Wire Resistive Touch Screen Panel (91-98969-000 / 103801319)
Product Overview
Restore the touch responsiveness of your industrial HMI equipment with the premium AMT98969 5.7-inch 4-wire resistive touch screen panel. Engineered specifically for harsh factory environments, this digitizer glass offers exceptional optical clarity, high touch sensitivity, and a lifespan of over 1 million actuations. It serves as a direct, plug-and-play replacement for OEM part numbers 91-98969-000, 103801319, and AMT130. Whether you are maintaining Allen-Bradley PanelView terminals, medical devices, or CNC control panels, this AMT touch glass guarantees reliable performance and exact mechanical fitment.
⚠️ Crucial Technical Notice: Touch Glass ONLY
Please read carefully before ordering:
This product is the Outer Touch Screen Digitizer Glass (Resistive Membrane) ONLY.
It does NOT include the inner LCD display module. If your screen's image is completely black or has liquid bleed/lines, your inner LCD is broken, and you need a full LCD assembly.
If your screen displays the image perfectly, but the touch is unresponsive, drifting, or the top glass is physically cracked/scratched, this AMT98969 touch panel is the exact part you need.
Product Features
Industrial-Grade Durability: Rated for over 1,000,000 touch actuations, designed to withstand heavy use by operators wearing work gloves or using styluses.
High Optical Clarity: Premium PET film and glass construction with anti-glare treatment ensures clear readability of HMI parameters under factory lighting.
Exact OEM Fitment: Precision-cut to 126 x 98 mm outline dimensions with an exact FPC cable layout to match your original AMT130 / 91-98969-000 panel.
4-Wire Analog Resistive Technology: Provides reliable, drift-free touch coordinates immune to surface dust, water droplets, and oil commonly found in manufacturing plants.
Easy Calibration: Fully compatible with standard Windows CE, Linux, and proprietary HMI OS touch calibration utilities.
Technical Specifications
| Part Number | AMT98969 (AMT 98969) |
| OEM Cross-Reference | 91-98969-000, 103801319, AMT130 |
| Screen Size | 5.7 inch (Diagonal) |
| Touch Technology | 4-Wire Analog Resistive |
| Outline Dimensions | 126.0 mm × 98.0 mm (Verify before install) |
| Active Touch Area | 120.0 mm × 91.0 mm |
| Interface | FPC Tail (Standard 4-Pin / Serial / USB depending on controller) |
| Surface Hardness | 3H (Scratch Resistant PET Film) |
| Light Transmission | > 80% |
| Lifespan | > 1,000,000 touches (Point activation) |
Applications
Industrial HMI (Human Machine Interface) Operator Panels
Allen-Bradley PanelView Terminals & PLC Controllers
CNC Machine Tool Control Consoles
Medical Diagnostic & Laboratory Equipment
Commercial POS Systems & Self-Service Kiosks
Why Choose ZY LCD Shop for HMI Touch Panels?
100% Touch Point Testing: Every AMT98969 digitizer is tested across all 4 corners and the center grid to guarantee zero dead zones or touch drift before shipping.
FPC Cable Inspection: We meticulously inspect the delicate flex cables to ensure no micro-tears that could cause signal loss during installation.
Anti-Static & Rigid Packaging: Shipped in custom hard-cardboard sleeves with ESD shielding to prevent bending or static damage to the resistive membrane.
1-Year Hassle-Free Warranty: Protect your repair business and end-users with our industry-leading quality guarantee.
Frequently Asked Questions (FAQ)
Will this AMT98969 touch screen fit my Allen-Bradley PanelView?
Yes, the AMT98969 is widely used in various 5.7-inch HMI terminals, including specific models of Allen-Bradley PanelView, Siemens, and ProFace. However, because HMI manufacturers sometimes change touch panel revisions, we strongly recommend measuring your original glass (126x98mm) and checking the OEM part number (like 91-98969-000) before ordering.
After installing the new touch glass, the touch coordinates are inverted or drifting. Is the panel defective?
Not necessarily. 4-wire resistive touch screens almost always require recalibration after a hardware replacement. Please access your HMI's control panel or system settings and run the "Touch Calibration" utility (usually a 4-point or 5-point crosshair calibration). If it still drifts after proper calibration, contact our support team for a replacement.
Can I use this resistive touch screen while wearing heavy work gloves?
Yes! Unlike capacitive touch screens (like modern smartphones) that require bare skin, 4-wire resistive technology relies on physical pressure. This makes the AMT98969 ideal for industrial environments where operators must wear thick rubber or leather work gloves.
Need to Verify Your HMI Touch Panel Model?
Upload a photo of your original screen's label to our engineers for a free compatibility check. Request a Bulk Quote or Add to Cart.
