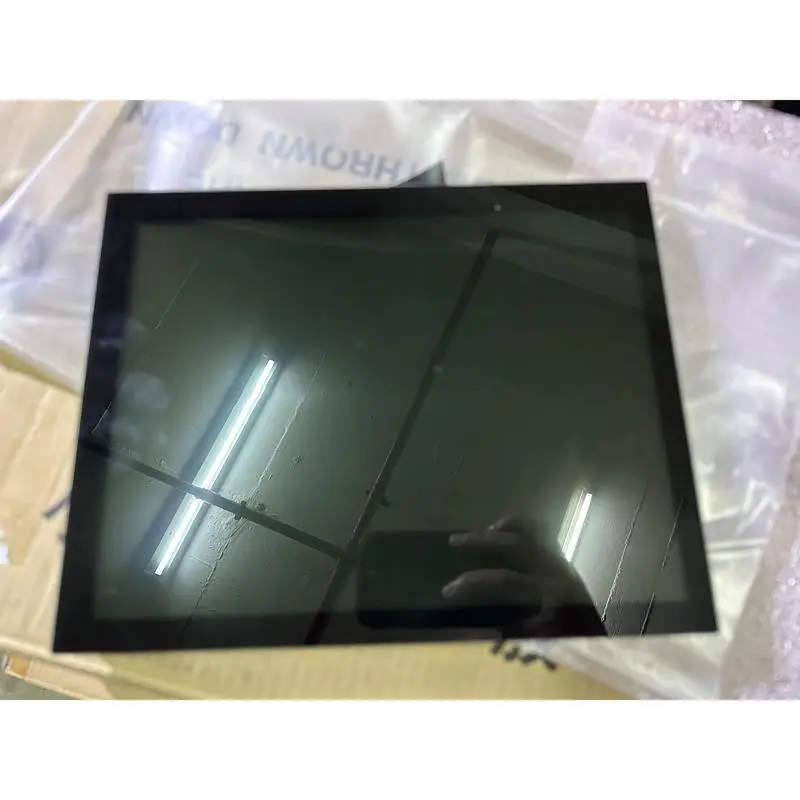

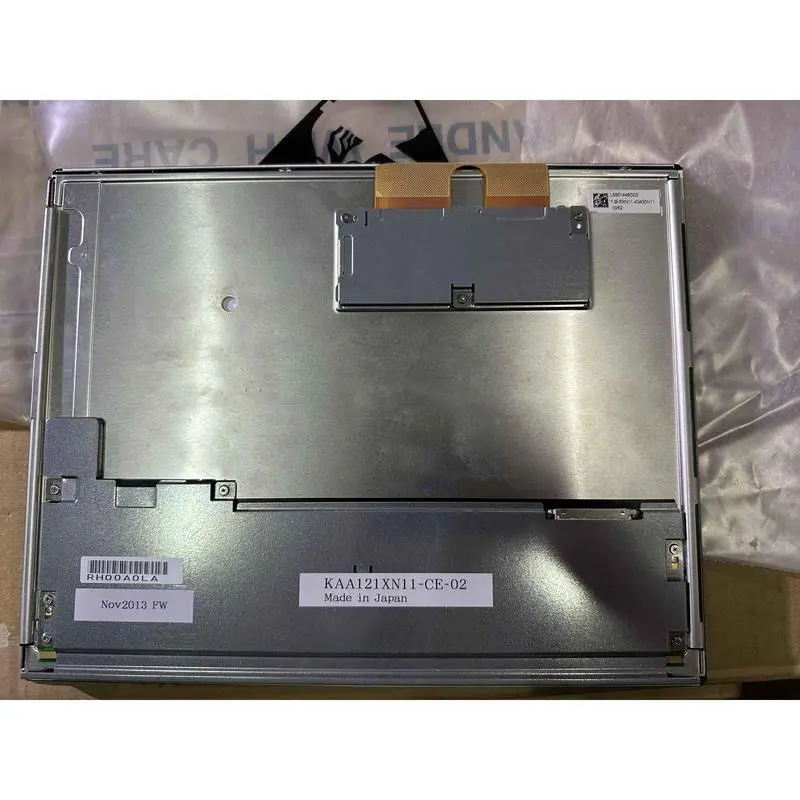

AA121XN11-CE-02 Mitsubishi 12.1 inch 1300cd/㎡ High Brightness lcd display screens
AA121XN11-CE-02 Mitsubishi 12.1 inch 1300cd/㎡ High Brightness lcd display screens
Mitsubishi AA121XN11-CE-02 is a 12.1-inch XGA ultra-high brightness wide temperature industrial-grade TFT-LCD module launched by Mitsubishi Electric, belonging to Mitsubishi's DIAFINE industrial display series. This product adopts a-Si TFT active matrix technology with native 1024(RGB)×768 XGA standard resolution and 105PPI pixel density, equipped with a 1300cd/m² ultra-high brightness WLED edge-lit backlight system, 800:1 high contrast ratio and 80°/80°/80°/80° full viewing angle display, supporting an extreme wide operating temperature range of -30°C to 80°C.
AA121XN11-CE-02 adopts a 20-pin single-channel 6/8-bit LVDS interface supporting 262K/16.7M color display. The surface is treated with 3H hardness anti-glare matte coating, and the backlight life is up to 100,000 hours without a built-in backlight driver board. It has excellent anti-vibration capability (1.0G) and industrial-grade reliability, specially designed for fields with extremely high requirements for sunlight readability and environmental adaptability such as construction machinery, agricultural machinery and outdoor industrial equipment. This model has exactly the same technical parameters as other versions of the AA121XN11 series (DF2, CF1) and can be directly interchanged.
AA121XN11-CE-02 Mitsubishi lcd display screens Highlights:
Ultra-high brightness sunlight readable: 1300cd/m² ultra-high brightness ensures clear content visibility even under direct sunlight, perfectly suitable for outdoor industrial scenarios
Extreme wide temperature design: Operating temperature range from -30°C to 80°C, adapting to various harsh environments such as severe cold and heat
Ultra-long life backlight: WLED backlight system life up to 100,000 hours, greatly reducing maintenance costs and replacement frequency
Industrial-grade reliability: Passed 1.0G vibration test, 3H hardness anti-glare surface, original Mitsubishi quality, stable 24/7 operation
Standard industrial interface: 20-pin single-channel LVDS interface, industry universal standard, excellent compatibility and easy integration
AA121XN11-CE-02 Mitsubishi lcd display screens Specification:
| Parameter | Specification |
|---|---|
| Part Number | AA121XN11-CE-02 (Series: AA121XN11-DF2, AA121XN11-CF1) |
| Brand | Mitsubishi Electric |
| Screen Size | 12.1 inch |
| Panel Type | a-Si TFT-LCD, Liquid Crystal Module (LCM) |
| Resolution | 1024(RGB)×768 [XGA] |
| Pixel Density | 105 PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 245.76(W)×184.32(H) mm |
| Bezel Opening | 247.0(W)×185.5(H) mm |
| Brightness | 1300 cd/m² (Typical) |
| Contrast Ratio | 800:1 (Typical, Transmissive) |
| Color Depth | 262K/16.7M (6-bit/6-bit+FRC) |
| Color Gamut | 40% NTSC (CIE1931) |
| Backlight Type | WLED, 4 strings, edge-lit, without driver |
| Backlight Life | 100,000 hours (Typical) |
| Interface Type | LVDS (1 ch, 6/8-bit), 20 pins connector |
| Optical Mode | TN, Normally White, Transmissive |
| Best View Direction | 6 o'clock |
| Viewing Angle | 80°/80°/80°/80° (U/D/L/R, CR≥10) |
| Response Time | 4/12 ms (Tr/Td, Typical) |
| Refresh Rate | 60Hz |
| Input Voltage | 3.3V (Typical) |
| Operating Temperature | -30°C ~ +80°C |
| Storage Temperature | -30°C ~ +80°C |
| Vibration Rating | 1.0G (9.8 m/s²) |
| Surface Treatment | Matte, 3H hardness anti-glare coating |
| Mechanical Dimensions | 270.5(W)×213.0(H)×14.5(D) mm (Typical) |
| Weight | Approximately 590g |
| Production Status | Active |
| Touch Function | No |
AA121XN11-CE-02 Mitsubishi lcd display screens Applications:
Construction Machinery: Excavators, loaders, bulldozers, cranes, road rollers and other heavy machinery cab displays
Agricultural Machinery: Tractors, harvesters, seeders, plant protection drones and other agricultural equipment control panels
Outdoor Industrial Equipment: Outdoor PLC HMI, industrial robot teach pendants, petroleum exploration instruments, mining equipment
Automotive Electronics: Special vehicle display terminals, in-vehicle monitoring systems, marine navigation equipment, RV entertainment systems
Other Applications: Outdoor advertising machines, security surveillance monitors, military command systems, portable industrial terminals
FAQ:
Q1: What is the difference between AA121XN11-CE-02 and AA121XN11-DF2?
A1: Both have exactly the same technical parameters, mechanical dimensions and interfaces, only different production batches and minor internal process improvements, and can be directly interchanged.
Q2: Is the brightness of this screen sufficient for outdoor direct sunlight scenarios?
A2: Yes, the 1300cd/m² ultra-high brightness is specially designed for outdoor applications, ensuring clear content visibility even under direct sunlight, making it an ideal choice for industrial outdoor displays.
Q3: Is the product an original Mitsubishi genuine product?
A3: Yes, all AA121XN11-CE-02 we sell are original genuine products manufactured by Mitsubishi Electric, with 12 months warranty and perfect after-sales service.
Q4: Does this screen require an additional backlight driver board?
A4: Yes, AA121XN11-CE-02 does not have a built-in backlight driver board. It needs to be used with a dedicated WLED backlight driver board. We can provide supporting driver board solutions.
