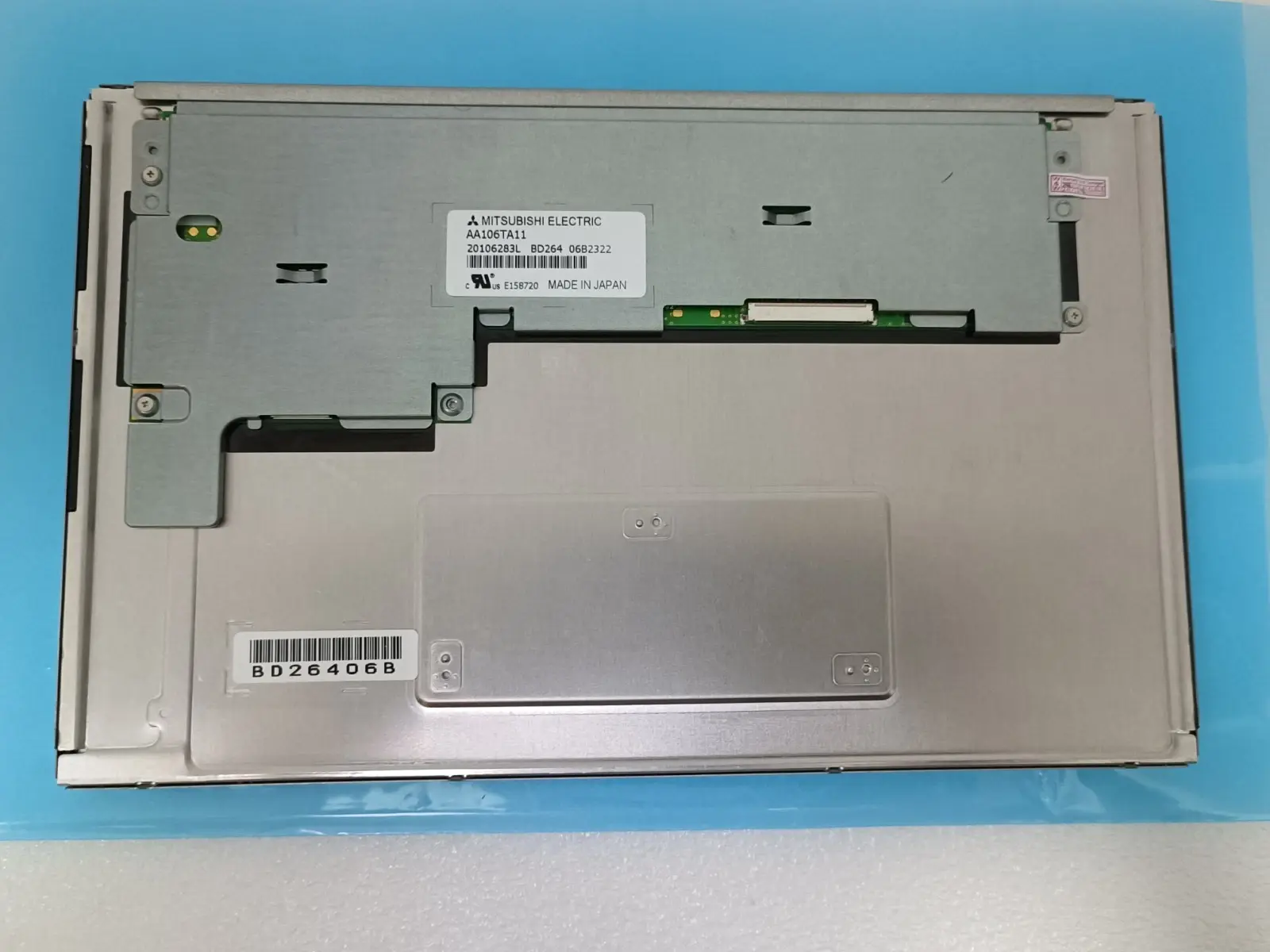

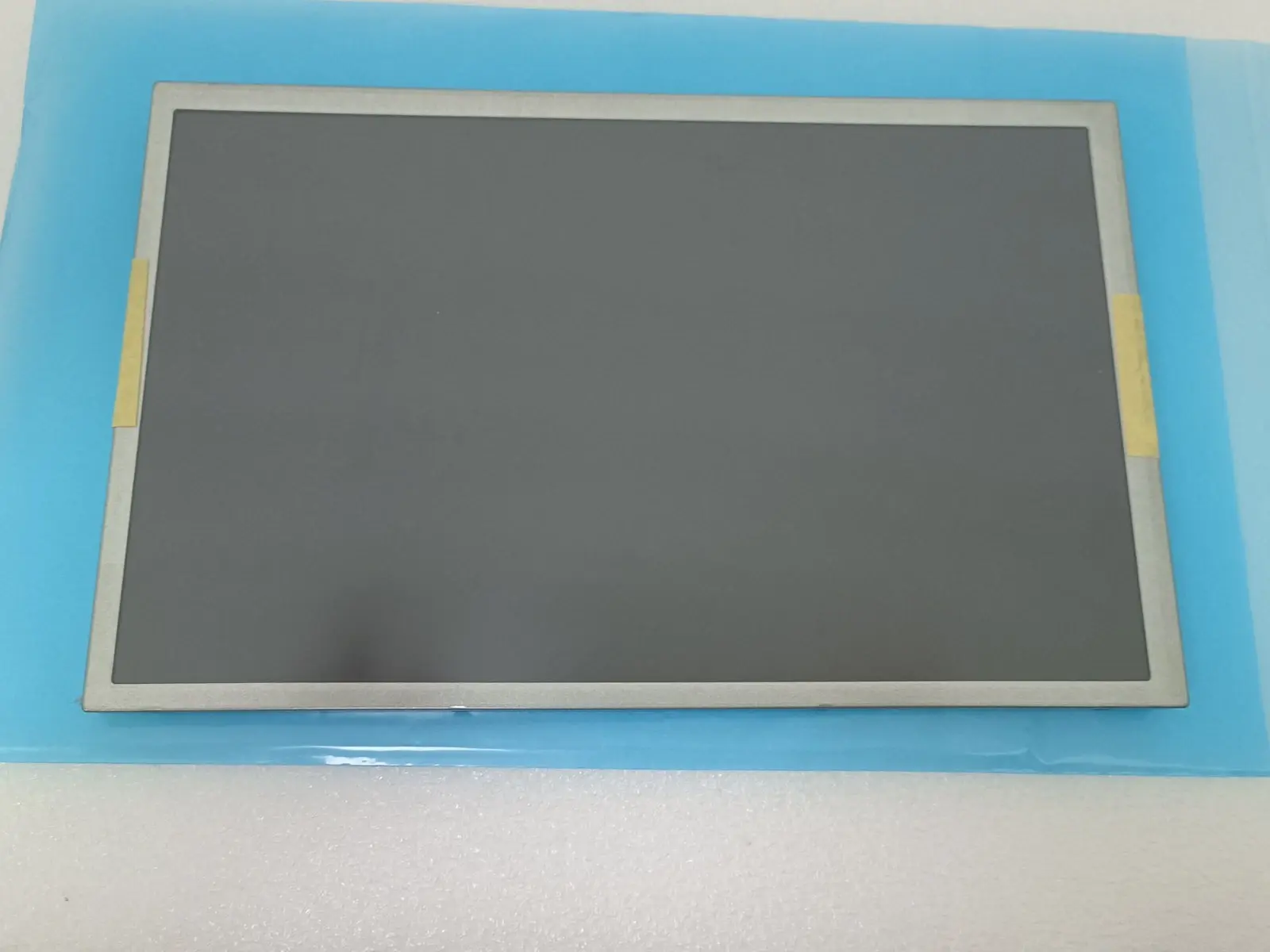

AA106TA11 Mitsubishi 10.6 inch 1280*768 lcd display module
AA106TA11 Mitsubishi 10.6 inch 1280*768 lcd display module
The AA106TA11 is a high-performance 10.6-inch industrial TFT-LCD module from Mitsubishi Electric, featuring a WXGA (1280 x 768) resolution with a 15:9 aspect ratio. This premium display is characterized by its super-high brightness of 1000 cd/m² and a sharp 1000:1 contrast ratio, providing exceptional legibility even in high-ambient light or outdoor environments. It utilizes Mitsubishi's advanced wide-viewing technology to achieve symmetric viewing angles of 85°/85°/85°/85°, ensuring no color inversion or distortion. The module is built for extreme durability, featuring a long-life WLED backlight (100,000 hours) and a wide operating temperature range of -30°C to +80°C, utilizing an LVDS (6-bit/8-bit) interface for high-speed connectivity.
The AA106TA11 is outstanding for its sunlight-readable performance and extended longevity, making it an ideal choice for high-end industrial measuring instruments and outdoor equipment. A major highlight is its 100,000-hour backlight life, which significantly reduces total cost of ownership by providing a reliable light source for over a decade of continuous use. Its super-wide viewing angles and extreme temperature resilience ensure that critical data remains accurate and visible in the harshest environments, from freezing industrial floors to intense heat. With its slim mechanical profile (9.4mm depth) and professional-grade color reproduction, it offers a robust, high-definition solution for mission-critical HMI and handheld diagnostic devices.
AA106TA11 Mitsubishi lcd display module Specifications:
Parameter Category | Specifications |
|---|---|
Model Number | AA106TA11 |
Brand | Mitsubishi |
Display Size | 10.6 Inch |
Resolution | 1280 × 768 (WXGA) |
Panel Type | a-Si TFT-LCD |
Brightness (Typ.) | 1000 cd/m² |
Contrast Ratio (Typ.) | 1000:1 (Transmissive) |
Viewing Angle (Typ.) | 85°/85°/85°/85° (CR≥10) |
Display Mode | IPS, Normally Black, Transmissive |
Display Colors | 262K / 16.7M (6-bit/8-bit, 50% CIE 1931) |
Response Time (Typ.) | 12/12 ms (Tr/Td) |
Refresh Rate | 60Hz |
Signal Interface | LVDS (1 ch, 6/8-bit), 20 Pins Connector |
Backlight | WLED (4 Strings), 100K Hours (Typ.), No Backlight Driver |
Operating Temperature | -30 ~ 80 °C |
Storage Temperature | -30 ~ 80 °C |
Industrial PC
Factory automation equipment
Test and measurement equipment
Outdoor high-brightness display devices
Transportation equipment (automobiles, ships, trains, etc.)
FAQ:
Is this 10.6-inch Mitsubishi screen still in stock? How soon can you ship it after ordering?
This model is currently in stock. Generally, we can arrange shipment within 2-3 working days after payment confirmation.
LCDs are fragile. How do you ensure safety during international long-distance transit?
We use reinforced industrial packaging: original anti-static trays, high-density shockproof foam, and thickened outer cartons to ensure no damage during international transit.
Can you provide the full datasheet for AA106TA11?
Certainly. Please contact our sales team, and we will send you the full PDF datasheet, including pin definitions, electrical characteristics, and optical specifications.
