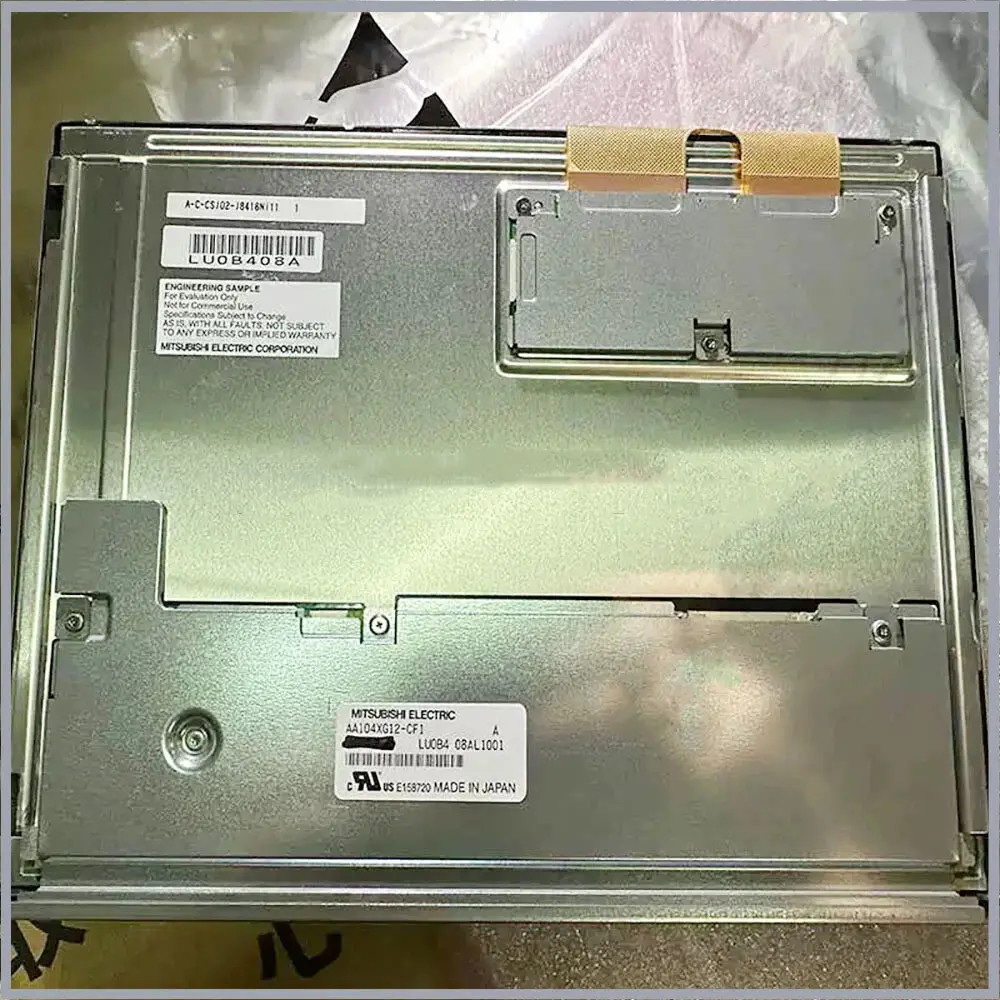

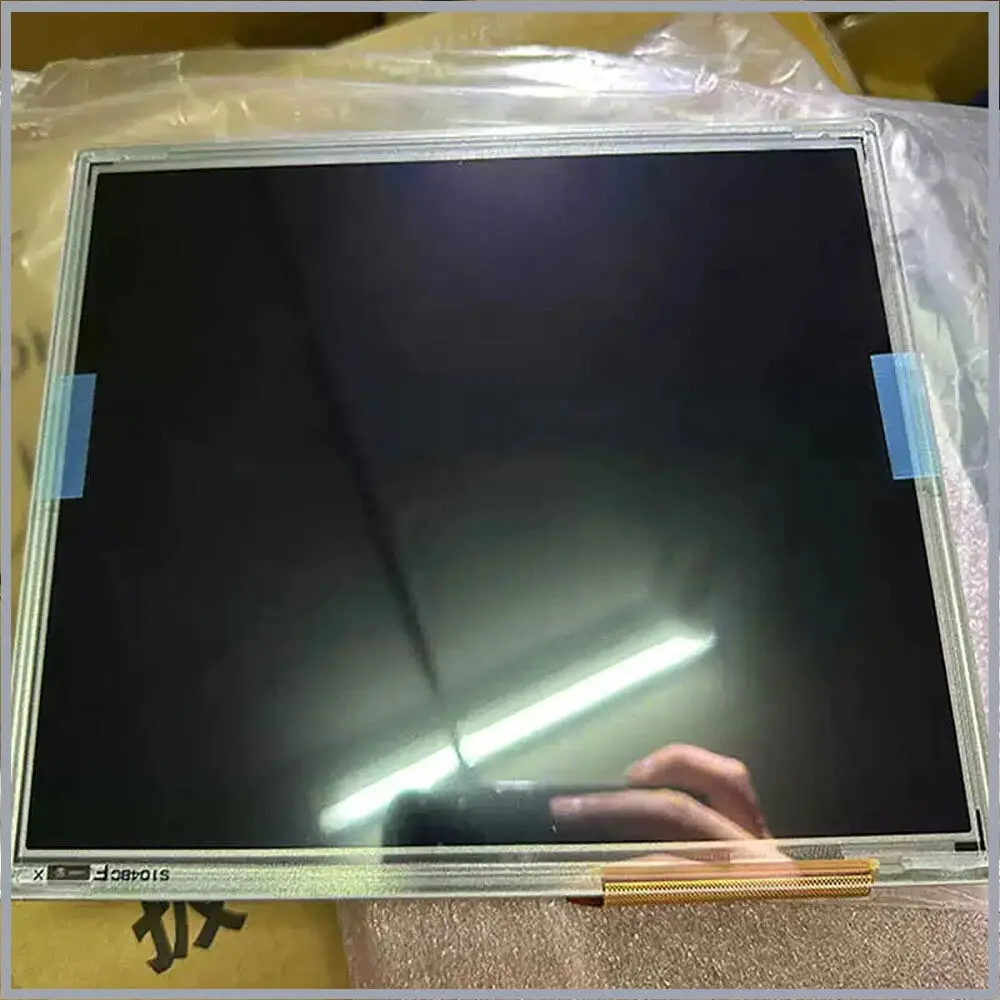

AA104XG12-CF1 Mitsubishi 10.4 inch LCD Display Screen Panel
AA104XG12-CF1 Mitsubishi 10.4 inch LCD Display Screen Panel
Mitsubishi AA104XG12-CF1 is a 10.4-inch XGA ultra-high brightness wide temperature industrial-grade TFT-LCD module launched by Mitsubishi Electric, belonging to Mitsubishi's DIAFINE industrial display series. This product features 1024(RGB)×768 XGA standard resolution with 123PPI pixel density, equipped with a 900cd/m² ultra-high brightness WLED edge-lit backlight system, 1000:1 high contrast ratio and 85°/85°/85°/85° full viewing angle IPS display technology, supporting an extreme wide operating temperature range of -30°C to 80°C.
AA104XG12-CF1 adopts a 20-pin single-channel LVDS interface supporting 6/8-bit color depth switching. The surface is treated with 3H hardness anti-glare coating, and the backlight life is up to 100,000 hours without a backlight driver board. It has excellent anti-vibration capability and industrial-grade reliability, specially designed for fields with extremely high requirements for sunlight readability and environmental adaptability such as construction machinery, agricultural machinery and outdoor industrial equipment.
AA104XG12-CF1 Mitsubishi LCD Display Screen Panel Highlights：
Ultra-high brightness display: 900cd/m² ultra-high brightness ensures clear content visibility even under direct sunlight, perfectly suitable for outdoor industrial scenarios
Extreme wide temperature design: Operating temperature range from -30°C to80°C, adapting to various harsh environments such as severe cold and heat
IPS full viewing angle technology: 85° full viewing angle display with uniform color and no viewing angle color shift or brightness decay
Ultra-long life backlight: WLED backlight system life up to 100,000 hours, greatly reducing maintenance costs and replacement frequency
Ultra-thin industrial design: Only 9.5mm thickness, lightweight design, easy to integrate into various industrial equipment
AA104XG12-CF1 Mitsubishi LCD Display Screen Panel Specification：
| Parameter | Specification |
|---|---|
| Part Number | AA104XG12-CF1 |
| Brand | Mitsubishi Electric |
| Screen Size | 10.4 inch |
| Panel Type | a-Si TFT-LCD, Liquid Crystal Module (LCM) |
| Resolution | 1024(RGB)×768 [XGA] |
| Pixel Density | 123 PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 210.4(W)×157.8(H) mm |
| Brightness | 900 cd/m² (Typical) |
| Contrast Ratio | 1000:1 (Typical) |
| Color Depth | 262K/16.7M (6/8-bit) |
| Color Gamut | 50% NTSC (CIE1931) |
| Backlight Type | WLED, 2 strings, without driver |
| Backlight Life | 100,000 hours (Typical) |
| Interface Type | LVDS (1 ch, 6/8-bit), 20 pins connector |
| Optical Mode | IPS, Normally Black, Transmissive |
| Viewing Angle | 85°/85°/85°/85° (U/D/L/R, CR≥10) |
| Response Time | 12/12 ms (Tr/Td, Typical) |
| Refresh Rate | 60Hz |
| Input Voltage | 3.3V (Typical) |
| Operating Temperature | -30°C ~ +80°C |
| Storage Temperature | -30°C ~ +80°C |
| Surface Treatment | Matte, 3H hardness anti-glare coating |
| Mechanical Dimensions | 230.0(W)×180.2(H)×9.5(D) mm (Typical) |
| Weight | Approximately 450g |
| Production Status | Active |
AA104XG12-CF1 Mitsubishi LCD Display Screen Panel Applications：
Construction Machinery: Excavators, loaders, bulldozers, cranes and other heavy machinery cab displays
Agricultural Machinery: Tractors, harvesters, seeders and other agricultural equipment control panels
Industrial Automation: Outdoor PLC HMI, industrial robot teach pendants, production line monitoring equipment
Automotive Electronics: Special vehicle display terminals, in-vehicle monitoring systems, marine navigation equipment
Other Applications: Outdoor advertising machines, security surveillance monitors, petroleum exploration instruments, military command systems
FAQ:
Q1: What is the difference between AA104XG12-CF1 and AA104XG12?
A1: AA104XG12-CF1 is a specific model in the AA104XG12 series. Both have exactly the same technical parameters, mechanical dimensions and interfaces, and can be directly interchanged.
Q2: Is the brightness of this screen sufficient for outdoor direct sunlight scenarios?
A2: Yes, the 900cd/m² ultra-high brightness is specially designed for outdoor applications, ensuring clear content visibility even under direct sunlight.
Q3: Is the product an original Mitsubishi genuine product?
A3: Yes, all AA104XG12-CF1 we sell are original genuine products manufactured by Mitsubishi Electric, with 12 months warranty and perfect after-sales service.
