AA084VG01 Mitsubishi 8.4

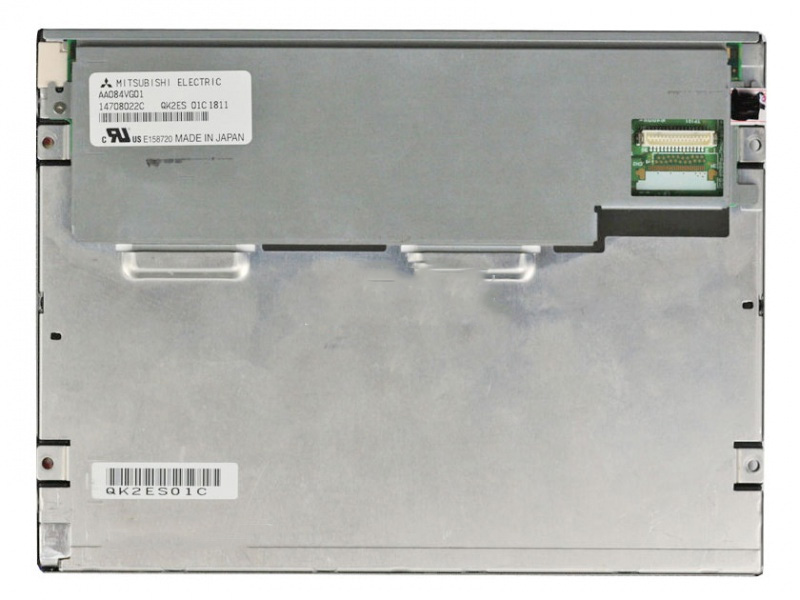

AA084VG01 Mitsubishi 8.4" a-Si TFT-LCD LCM 640(RGB)×480 VGA 95PPI
Price: $232.00
$230.00/ piece
Add to cart
Specifications Ordering instructions Overview Product Comparison Q&A Reviews
Register
English German Deutsch Italiano Dansk Nederlands
GBP JPY EUR USD CAD AUD
Home
Products
Industrial display
Industrial Products
HMI Full Machine Whole unit
Module
Manufacturer
Support
News
About Us
Contact Us
>
Products
>
Industrial display
>
MITSUBISHI
AA084VG01 Mitsubishi 8.4" a-Si TFT-LCD LCM 640(RGB)×480 VGA 95PPI
Price: $232.00
$230.00/ Price
Unit(s)
BUY NOW
Add to cart
Add to wish list
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*
Specifications Ordering instructions Overview Product Comparison Q&A Reviews
Product Information Product Specifications
Model:
AA084VG01
Brand:
Mitsubishi
Application:
Industrial
Size:
8.4"
Resolution:
640(RGB)×480, VGA 95PPI
Brightness:
800 cd/m² (Typ.)
Contrast Ratio:
600 : 1 (Typ.) (TM)
Viewing Angle:
80/80/80/60(Typ.)(CR≥10)
Lamp Type:
2 stringsWLED, 100K hours, No Driver
Signal Interface:
CMOS(1ch,6-bit),31pinsConnector
Panel Type:
a-Si TFT-LCD, LCM
Pixel Format:
RGB Vertical Stripe
Active Area:
170.88(W)×128.16(H) mm
Bezel Opening:
174.9(W)×132.2(H) mm
Outline size:
199.5 × 149× 12 (H×V×D)
Surface:
Antiglare,Hardcoating(3H)
Response Time:
-
Best View on:
6o'clock
Work Mode:
TN, Normally White, Transmissive
Display Colors:
262K40%NTSC
Weight:
365g(Typ.)
Frequency:
60Hz
Touchscreen:
Without
Signal Type:
CMOS(1ch,6-bit),31pinsConnector
Voltage Supply:
3.3V(Typ.)
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
277
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.500 KG
Overview

Product display






Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
AA084VG01 Mitsubishi 8.4
AA084VG01 Mitsubishi 8.4" a-Si TFT-LCD LCM 640(RGB)×480 VGA 95PPI
AA084VG01
8.4"
640(RGB)×480, VGA 95PPI
800 cd/m² (Typ.)
600 : 1 (Typ.) (TM)
80/80/80/60(Typ.)(CR≥10)
2 stringsWLED, 100K hours, No Driver
CMOS(1ch,6-bit),31pinsConnector
a-Si TFT-LCD, LCM
LCD display AA084VC05 8.4 inch 640*480 Industrial screen
LCD display AA084VC05 8.4 inch 640*480 Industrial screen
AA084VC05
8.4"
640(RGB)×480, VGA 95PPI
480 cd/m² (Typ.)
500:1 (Typ.) (TM)
65/65/50/60 (Typ.)(CR≥10)
2 pcs CCFL , 50K hours , Without Driver
CMOS (1 ch, 6-bit) , 31 pins Connector
a-Si TFT-LCD, LCM
AA084VG03 8.4
AA084VG03 8.4" display modules for Mitsubishi
AA084VG03
8.4"
640(RGB)×480, VGA 95PPI
600:1 (Typ.) (TM)
80/80/80/60 (Typ.)(CR≥10)
WLED , W/O Driver
CMOS (1 ch, 6-bit) , 31 pins Connector
a-Si TFT-LCD, LCM
AA084XD01 12.1
AA084XD01 12.1" lcd panel for Mitsubishi
AA084XD01
12.1"
1024(RGB)×768, XGA 105PPI
1000 cd/m² (Typ.)
600:1 (Typ.) (TM)
80/80/60/80 (Typ.)(CR≥10)
WLED [4 strings] , 100K hours , W/O Driver
LVDS (1 ch, 6/8-bit) 20 pins Connector
a-Si TFT-LCD, LCM
