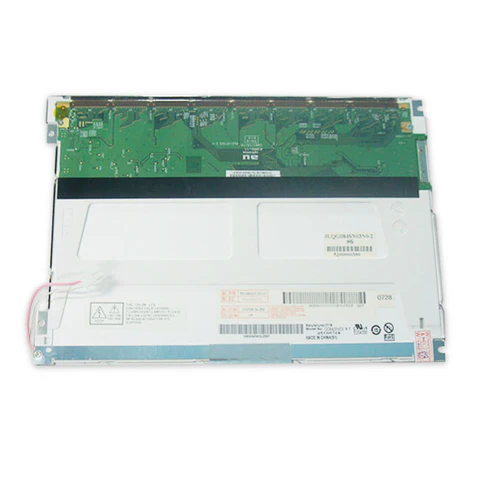

8.4 inch screen G084SN03 V1 lcd module 800*600 lcd display panel

8.4 inch screen G084SN03 V1 lcd module 800*600 lcd display panel

Price: $90.00

$85.00/ Price

Delivery:

Payment:

Calculate shipping price

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

Mr.

Ms.

1. Quote with shipping freight?

Email : *

YES

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

Specifications Ordering instructions Overview Product Comparison Q&A Reviews

8.4 inch screen G084SN03 V1 lcd module 800*600 lcd display panel

Product Information Product Specifications

Model:

G084SN03 V1

Brand:

AUO

Application:

Industrial

Size:

8.4"

Resolution:

800(RGB)×600, SVGA 119PPI

Brightness:

250 cd/m² (Typ.)

Contrast Ratio:

600 : 1 (Typ.) (TM)

Viewing Angle:

80/80/80/60 (Typ.)(CR≥10)

Lamp Type:

1 pcs CCFL , 30K hours , No Driver

Signal Interface:

LVDS (1 ch, 6/8-bit) , Connector 20 pins

Panel Type:

a-Si TFT-LCD, LCM

Ordering instructions

Quality:

test ok before ship it

RMA Policy:

RMA 6 month

Sample:

Paid Sample

Stock:

2000

Stock Location:

China

Delivery:

WorldWide

Lead Time:

1-3 Days

Weight:

1.000 KG

Overview

Product display

Product Comparison

Model:

Size:

Resolution:

Brightness:

Contrast Ratio:

Viewing Angle:

Lamp Type:

Signal Interface:

Panel Type:

8.4 inch screen G084SN03 V1 lcd module 800*600 lcd display panel

G084SN03 V1

8.4"

800(RGB)×600, SVGA 119PPI

250 cd/m² (Typ.)

600 : 1 (Typ.) (TM)

80/80/80/60 (Typ.)(CR≥10)

1 pcs CCFL , 30K hours , No Driver

LVDS (1 ch, 6/8-bit) , Connector 20 pins

a-Si TFT-LCD, LCM

G084SN03 V3 8.4" lcd display panel for AUO

G084SN03 V3

8.4"

800(RGB)×600, SVGA 119PPI

250 cd/m² (Typ.)

600:1 (Typ.) (TM)

80/80/80/60 (Typ.)(CR≥10)

3 strings WLED , 30K hours , With LED Driver

LVDS (1 ch, 6/8-bit) , 20 pins Connector

a-Si TFT-LCD, LCM

g084sn05 v9 8.4" lcd display screens for AUO

g104sn03 v5

8.4"

800(RGB)×600, SVGA 96PPI

230 cd/m² (Typ.)

500:1 (Typ.) (TM)

80/80/60/70 (Typ.)(CR=10)

WLED [3 strings] , 25K hours , With LED Driver

LVDS (1 ch, 6/8-bit) , 20 pins Connector

a-Si TFT-LCD, LCM

G084SN03 V0 8.4 inch 800*600 lcd module

G084SN03 V0

8.4"

800(RGB)×600, SVGA 119PPI

220 cd/m² (Typ.)

500 : 1 (Typ.) (TM)

65/65/65/45 (Typ.)(CR≥10)

1 pcs CCFL , 20K hours , No Driver

LVDS (1 ch, 6-bit) , 20 pins Connector

a-Si TFT-LCD, LCM

G084SN03 V1 is a 8.4" a-Si TFT-LCD, LCM Display screen Product from AUO.According to AUO's product specification sheet,G084SN03 V1 display has a resolution of 800(RGB)×600, SVGA 119PPI, Contrast Ratio is 600 : 1 (Typ.) (TM),Viewing Angle is 80/80/80/60 (Typ.)(CR≥10),Lamp Type is 1 pcs CCFL , 30K hours , No Driver,Signal Interface is LVDS (1 ch, 6/8-bit) , Connector 20 pins,Brightness is 250 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of G084SN03 V1 after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.

Questions & Answers

Ask a Question >

All (5) uncategorised (5) Package (0) Delivery (0) Payment (0) After Sale (0)

What devices or fields is this display commonly used in?

This 8.4-inch 800x600 LCD is very common in various industrial and Human-Machine Interface (HMI) applications, such as: industrial touchscreen panels, medical devices, CNC machine control panels, test and measurement instruments, POS systems, and some specialized embedded display devices.

Where can I find the datasheet and technical documentation for this display?

You can find it by searching for "G084SN03 V1 datasheet" in your preferred search engine. Typically, electronic component distributors (like Mouser, Digikey) or specialized LCD panel websites will provide links to download these technical documents

My device originally used the G084SN03 V1 screen, which is now unavailable. Are there any direct replacement models?

When looking for a replacement, you must ensure the following key parameters match exactly: 8.4-inch diagonal, 800x600 resolution, LVDS interface, and identical mounting holes and physical dimensions. You can search for "G084SN03 compatible model" or look for screens from other brands (like AUO or Innolux) with the same specifications. The safest approach is to contact a supplier and provide the full model number and pictures of your original screen.

What interface does the G084SN03 V1 module use? Is it LVDS?

Yes, the G084SN03 V1 is an LCD module with an LVDS interface. It typically needs to be connected to an LVDS transmitter on a mainboard. Please ensure your controller board supports LVDS output when purchasing.

What is the resolution of this 8.4-inch screen? Is the display quality clear?

The resolution of this display is 800 × 600 pixels. For an 8.4-inch screen size, this is a standard configuration. It provides clear visibility for text and basic graphical interfaces, though it may not be as sharp as higher-resolution screens. It is well-suited for applications like industrial controls and instrumentation where extreme resolution is not critical.
