AA084XB01 8,4 Zoll XGA TFT LCD Industrieanzeigemodul
AA084XB01 8,4 Zoll XGA TFT LCD Industrieanzeigemodul
Der Preis: €203.72
€199.19/ Mitglied
In den Warenkorb

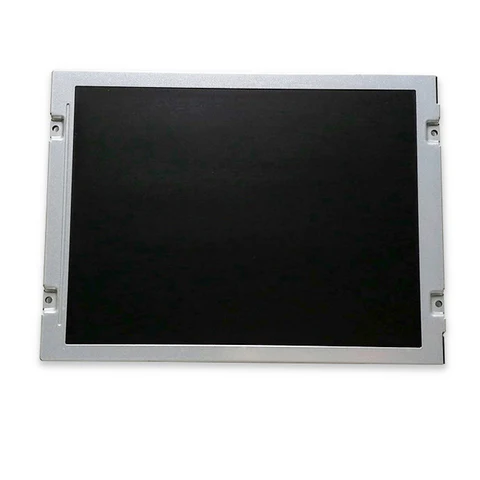

AA084XB01 8.4 inch XGA 1024x768 TFT LCD display front view
AA084XB01 AUO back label with model and serial number
AA084XB01 8.4 inch XGA 1024x768 TFT LCD display front view
AA084XB01 AUO back label with model and serial number

AA084XB01 8,4 Zoll XGA TFT LCD Industrieanzeigemodul

Der Preis: €203.72
€199.19/ Mitglied
Lieferung:
Zahlung:
Berechnung der fracht
Erforderlich:*
Produktmodell* Zielpreis Qty *
Nachricht
Ihre Kontaktdaten: Weitere Informationen:
Name: *
Herr. Frau.
1. Angebot mit Versand Fracht?
Email : *
JA NEIN
Telefon: 2. Welchen Carrier perfert ihr??
Unternehmen:
Fedex UPS DHL
TNT andere
Land:*

AA084XB01 8,4 Zoll XGA TFT LCD Industrieanzeigemodul

Produktinformationen Produktspezifikationen
Modell:
AA084XB01
Marke:
Anwendung:
Industrie
Größe:
Entschließung:
1024(RGB)×768, XGA, 152PPI
Helligkeit:
500 cd/m2 (Typ.)
Kontrastverhältnis:
600 : 1 (Typ.) (TM)
Betrachtungswinkel:
80/80/60/80 (Typ.)(CR≥10)
Lampentyp:
2 strings WLED , 60K hours , Without Driver
Signalschnittstelle:
LVDS (1 ch, 6/8-bit) , 20 pins Connector
Panel-Typ:
a-Si TFT-LCD, LCM
Bestellanleitung
Qualität:
test ok before ship it
Größe:
RMA 6 month
Entschließung:
Paid Sample
Lagerbestand:
52
Betrachtungswinkel:
China
Lampentyp:
WorldWide
Signalschnittstelle:
1-3 Days
Gewicht:
1.000 KG
Übersicht


DieAA084XB01ist ein hochwertiges 8,4-Zoll XGA TFT LCD-Display-Modul von AUO (AU Optronics). Mit einer hochauflösenden Auflösung von 1024 (RGB) ×768 ist dieses industrielle panel allgemein als der perfekte direkte Ersatzbildschirm fürMitsubishi HMI (Mensch-Maschine-Schnittstelle)Systeme, SPS-Bedientafeln und CNC-Werkzeugmaschinen. Es wurde für den 24/7-Betrieb in rauen Umgebungen entwickelt und bietet außergewöhnliche Helligkeit und Farbstabilität. ZYLCD Shop garantiert authentische AUO-Komponenten mit strengen Pixel-und Funktionstests vor dem Versand.

Produktmerkmale

  • High-Definition XGA Auflösung:1024×768 Pixel liefern klaren text und detaillierte Grafiken, sodass komplexe Industrieschemata und SPS-Daten leicht lesbar sind.

  • Industrielle Haltbarkeit:Entwickelt von AUO, um extremen Temperaturen, hohen Vibrationen und kontinuierlichen 24/7-Betrieb in Fabrikautomationsumgebungen standzuhalten.

  • Hohe Helligkeit & Kontrast:Optimiertes LED-Hintergrundbeleuchtungssystem sorgt für klare Sicht auch bei starker Umgebungsbeleuchtung oder Außenbedingungen.

  • Standard LVDS Schnittstelle:Verfügt über eine zuverlässige LVDS-Schnittstelle (Low-Voltage Differential Signaling) für eine stabile Hochgeschwindigkeits-Datenübertragung an Mitsubishi und andere industrielle Controller-Boards.

  • Genaue Drop-In-Passform:Präzise mechanische Abmessungen und standardmäßige Befestigungslöcher sorgen für einen nahtlosen physischen Ersatz für alterende Mitsubishi GOT-Touchscreens ohne Gehäusemodifikationen.

Technische Spezifikationen

ModellnummerAA084XB01
HerstellerAUO (AU Optronics)
Anzeigegröße8,4 Zoll Diagonale
Auflösung1024 (RGB) ×768 (XGA)
Paneltypa-Si TFT-LCD, normalerweise weiß, transmissiv
Aktivbereich170.496 (B) ×127.872 (H) mm
Video-SchnittstelleLVDS (1 ch, 6/8-bit), 20 Pins
Helligkeit500 cd/m²
KontrastverhältnisTyp. 600:1
Betrachtungswinkel80/80/60/80 (Typ. CR> 10, IPS-ähnliche Weitsicht)
Betriebstemperatur-20°C ~ +70°C (industrielle Qualität)

Anwendungen & kompatible Geräte

Dieses 8,4 "XGA TFT LCD Modul ist der ideale Ersatzbildschirm für eine Vielzahl von industriellen Automatisierungs-und Steuerungssystemen, einschließlich:

  • Mitsubishi Electric HMI & GOT Serie Touchpanels (z.B. GT15, GT16 Serie inner LCD)

  • SPS-Bedientafeln & Automatisierungssteuerungen

  • CNC-Werkzeugmaschinenanzeigen (FANUC, SIEMENS, Mitsubishi Nachrüstungen)

  • Medizinische Diagnose-und Patientenüberwachungsgeräte

  • Steuerkonsolen für Marine Navigation & Avionik

  • Nachrüstung und Modernisierung alter Industrieausrüstungen

Warum AA084XB01 im ZYLCD Shop kaufen?

  • 100% authentische AUO-Platten:Wir beziehen uns direkt aus autorisierten Kanälen; Streng keine renovierten, gezogenen oder gefälschten Schirme für kritischen industriellen Gebrauch.

  • Strenge Qualitätsprüfung:Jedes AA084XB01-Gerät wird vollständig funktionell überprüft, einschließlich der Gleichmäßigkeit der Hintergrundbeleuchtung, Kontrastprüfungen und Null-Dead-Pixel-Screening.

  • Globaler schneller Versand:Sichere antistatische und stoßfeste Wabenverpackung mit verfolgter Expresslieferung, um die Ausfallzeiten Ihrer Produktionslinie zu minimieren.

  • Experten-Querreferenzunterstützung:Unser Ingenieurteam überprüft die Kompatibilität von Mitsubishi HMI Teilenummern, um eine perfekte Passform für Ihre Maschine sicherzustellen.

Häufig gestellte Fragen

Ist dieser AA084XB01 LCD kompatibel mit Mitsubishi GOT Touchscreen panels?

Ja, das AA084XB01 wird häufig als innerer LCD-Ersatz für verschiedene Mitsubishi GOT-Serie HMI-Touchpanels verwendet. Bitte beachten Sie jedoch, dass dieses Produkt nur das nackte LCD-Display ist. Es beinhaltet weder das vordere Touchscreen-Digitalisierungsglas noch die äußere Kunststofflünette. Während der installation müssen Sie Ihr originales Touchglas und Gehäuse vorsichtig auf dieses neue LCD-Modul übertragen.

Kann ich meinen alten 8,4 "SVGA (800x600) Bildschirm auf dieses XGA (1024x768) Bildschirm aktualisieren?

Heute mit garantierter Echtheit und schneller weltweiter Lieferung.

Jetzt Angebot anfordern



Datenblatt herunterladen

Verwandte 8.4 "Industrial & HMI DisplaysIm Allgemeinen nein. Industrielle SPS-und HMI-Software sind hardcodiert, um bestimmte Auflösungen auszugeben. Wenn das Mainboard Ihres Geräts für einen 800x600 SVGA-Ausgang konzipiert ist, führt der Anschluss eines 1024x768 XGA-Panels wie dem AA084XB01 zu einem „Out of Range "-Fehler, einem beschnittenen display oder einem Synchronisationsfehler. Ersetzen Sie Ihren Bildschirm immer mit genau der gleichen Auflösung wie Ihr ursprüngliches Werkspanel, es sei denn, Ihr controller unterstützt die dynamische Auflösungsskalierung.G084SN05 V2 – 8,4 "XGA TFT LCD Alternative

Produktvergleich
Modell:
Größe:
Entschließung:
Helligkeit:
Kontrastverhältnis:
Betrachtungswinkel:
Lampentyp:
Signalschnittstelle:
Panel-Typ:
AA084XB01 8,4 Zoll XGA TFT LCD Industrieanzeigemodul

AA084XB01 8,4 Zoll XGA TFT LCD Industrieanzeigemodul

AA084XB01

1024(RGB)×768, XGA, 152PPI
500 cd/m2 (Typ.)
600 : 1 (Typ.) (TM)
80/80/60/80 (Typ.)(CR≥10)
2 strings WLED , 60K hours , Without Driver
LVDS (1 ch, 6/8-bit) , 20 pins Connector
a-Si TFT-LCD, LCM

AA084SA01--T01

a-Si TFT-LCD, LCM

AA084VC05

640(RGB)×480, VGA 95PPI
480 cd/m² (Typ.)
500:1 (Typ.) (TM)
65/65/50/60 (Typ.)(CR≥10)
2 pcs CCFL , 50K hours , Without Driver
CMOS (1 ch, 6-bit) , 31 pins Connector
a-Si TFT-LCD, LCM
AA084XB01 is a 8.4" a-Si TFT-LCD, LCM Display screen Product from Mitsubishi.According to Mitsubishi's product specification sheet,AA084XB01 display has a resolution of 1024(RGB)×768, XGA, 152PPI, Contrast Ratio is 600 : 1 (Typ.) (TM),Viewing Angle is 80/80/60/80 (Typ.)(CR≥10),Lamp Type is 2 strings WLED , 60K hours , Without Driver,Signal Interface is LVDS (1 ch, 6/8-bit) , 20 pins Connector,Brightness is 500 cd/m2 (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of AA084XB01 after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
