Sharp LQ080V3DG01 8 Inch 640x480 VGA TFT LCD Display Module
Sharp LQ080V3DG01 8 Inch 640x480 VGA TFT LCD Display Module New
Price: $75.00
$70.00/ piece
Add to cart

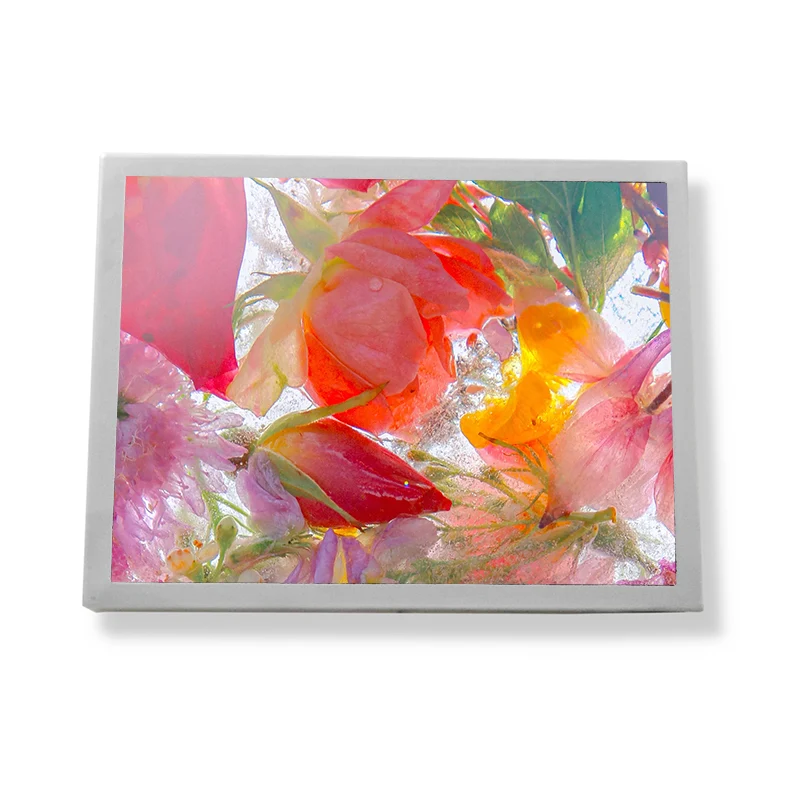

Sharp LQ080V3DG01 8 inch 640x480 VGA TFT LCD display module front view

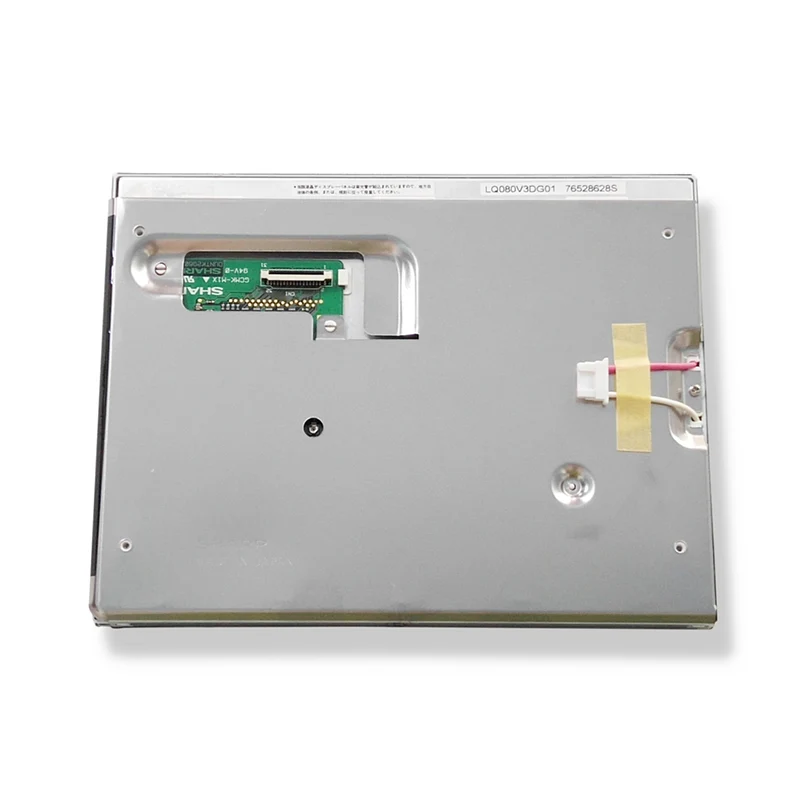

Back side of original Sharp LQ080V3DG01 8 inch industrial LCD panel with metal frame
Sharp LQ080V3DG01 8 inch 640x480 VGA TFT LCD display module front view
Back side of original Sharp LQ080V3DG01 8 inch industrial LCD panel with metal frame

Sharp LQ080V3DG01 8 Inch 640x480 VGA TFT LCD Display Module New

Price: $75.00
$70.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

Sharp LQ080V3DG01 8 Inch 640x480 VGA TFT LCD Display Module

Product Information Product Specifications
Model:
LQ080V3DG01
Brand:
SHARP
Application:
Industrial
Size:
8"
Resolution:
640(RGB)×480, VGA 100PPI
Brightness:
380 cd/m2 (Typ.)
Contrast Ratio:
250 : 1 (Typ.) (TM)
Viewing Angle:
65/65/65/55 (Typ.)(CR≥10)
Lamp Type:
1 pcs CCFL , 10K hours , Without Driver
Signal Interface:
Parallel RGB (1 ch, 6-bit) , 32 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
149
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

Product Introduction

The Sharp LQ080V3DG01 is a highly durable 8.0-inch VGA (640×480) TFT LCD display module engineered for demanding industrial environments. Manufactured by Sharp, a global leader in display technology, this 8 inch LCD panel is renowned for its exceptional stability, high brightness, and long operational lifespan. Featuring a standard interface and excellent color reproduction, it is the ideal drop-in replacement screen for legacy CNC machines, HMI terminals, and medical diagnostic equipment. Available now at ZY LCD Shop with guaranteed original quality, strict pixel testing, and fast global shipping.

Product Features of Sharp LQ080V3DG01

  • Original Sharp Quality: 100% authentic Sharp 8.0 inch LCD module ensuring long-lasting durability and stable performance in harsh conditions.

  • Classic VGA Resolution: Native 640(RGB)×480 resolution provides clear, pixel-accurate rendering for standard industrial graphical interfaces.

  • High Brightness & Contrast: Delivers exceptional readability even in well-lit factory floors or brightly lit medical operation rooms.

  • Wide Operating Temperature: Designed to operate flawlessly in extreme environments, making it perfect for unclimate-controlled workshops.

  • Legacy System Compatible: The perfect direct replacement for aging Sharp 8 inch displays without needing to redesign your control motherboard.

  • RoHS Compliant: Manufactured using environmentally friendly processes that meet international safety and industrial standards.

Technical Specifications

Sharp LQ080V3DG01 LCD Panel Specs
ManufacturerSharp
Model NumberLQ080V3DG01
Screen Size8.0 inch (Diagonal)
Resolution640(RGB)×480, VGA
Display ModeTFT, Normally White, Transmissive
Active Area163.2(W) × 122.4(H) mm
Outline Dimensions189.0(W) × 144.0(H) × 9.0(D) mm (Typical)
Interface TypeParallel RGB (CMOS / TTL)
Brightness380 cd/m² (Typ.)
Contrast Ratio250:1 (Typ.)
Operating Temperature-10°C to +60°C (Industrial Grade)

*Note: Please verify the exact pin configuration and backlight voltage with our technical team before installation, as interface revisions may vary.

Applications for 8 Inch VGA TFT LCD

Thanks to its rugged build and classic VGA compatibility, the Sharp LQ080V3DG01 8 inch LCD module is widely deployed in mission-critical sectors:

  • CNC & Machine Tools: Perfect replacement for lathe, milling machine, and EDM control panel displays.

  • Industrial Automation (HMI): Ideal for PLC interfaces, factory monitoring systems, and robotic control terminals.

  • Medical Equipment: Used in ultrasound machines, patient vitals monitors, and dental imaging devices.

  • Marine & Aviation: Withstands vibration in dashboard navigation, radar displays, and sonar equipment.

  • Testing & Measurement: Integrated into oscilloscopes, spectrum analyzers, and laboratory diagnostic tools.

Why Buy Sharp LCD Modules from ZY LCD Shop?

Sourcing reliable industrial panels like the LQ080V3DG01 requires a trusted partner. Here is why engineers and repair technicians choose ZY LCD Shop:

  • Authentic Sharp Panels: We guarantee 100% original, brand-new Sharp displays. No refurbished or counterfeit screens.

  • Hard-to-Find Inventory: We specialize in sourcing legacy and industrial LCD modules that are difficult to find on the open market.

  • Strict Quality Control: Every 8" VGA screen undergoes rigorous power-on, backlight, and pixel testing before dispatch.

  • Secure Anti-Static Packaging: Custom foam and ESD shielding ensure your fragile LCD arrives in pristine condition globally.

  • Engineering Support: Need a datasheet or cross-reference? Our tech team is ready to assist with integration and pinout queries.

Frequently Asked Questions (FAQ)

Is the Sharp LQ080V3DG01 a direct replacement for my old CNC screen?

In most cases, yes. The LQ080V3DG01 is a standard 8.0-inch VGA panel widely used in CNC machines. However, please verify your current screen's model number and connector pin count with our support team to ensure 100% compatibility.

What is the interface type of this 640x480 LCD module?

The Sharp LQ080V3DG01 typically features a Parallel RGB (CMOS/TTL) interface. Please check the technical specifications or request the datasheet to confirm the exact pinout for your motherboard.

Do you provide the datasheet for the LQ080V3DG01?

Yes, we provide complete PDF datasheets including mechanical drawings, pin definitions, and electrical characteristics. Please contact our support team via email or live chat to request the file.

What is the warranty on your 8 inch Sharp replacement displays?

All original Sharp LCD modules purchased from ZY LCD Shop come with a standard 6-month replacement warranty against manufacturing defects and dead pixels.

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
Sharp LQ080V3DG01 8 Inch 640x480 VGA TFT LCD Display Module

Sharp LQ080V3DG01 8 Inch 640x480 VGA TFT LCD Display Module

LQ080V3DG01

8"
640(RGB)×480, VGA 100PPI
380 cd/m2 (Typ.)
250 : 1 (Typ.) (TM)
65/65/65/55 (Typ.)(CR≥10)
1 pcs CCFL , 10K hours , Without Driver
Parallel RGB (1 ch, 6-bit) , 32 pins Connector
a-Si TFT-LCD, LCM
SHARP LQ080V3DE01 8-Inch TFT LCD Panel 640×480 Industrial Display Module

SHARP LQ080V3DE01 8-Inch TFT LCD Panel 640×480 Industrial Display Module

LQ080V3DE01

8"
640(RGB)×480, VGA 100PPI
1 pcs CCFL
a-Si TFT-LCD, LCM
LQ080V3DG01 is a 8" a-Si TFT-LCD, LCM Display screen Product from SHARP.According to SHARP's product specification sheet,LQ080V3DG01 display has a resolution of 640(RGB)×480, VGA 100PPI, Contrast Ratio is 250 : 1 (Typ.) (TM),Viewing Angle is 65/65/65/55 (Typ.)(CR≥10),Lamp Type is 1 pcs CCFL , 10K hours , Without Driver,Signal Interface is Parallel RGB (1 ch, 6-bit) , 32 pins Connector,Brightness is 380 cd/m2 (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of LQ080V3DG01 after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
