Innolux AT065TN14 6.5" 800x480 WVGA LCD Panel
Innolux AT065TN14 6.5" 800x480 WVGA LCD Panel
Price: $30.00
$20.00/ piece
Add to cart

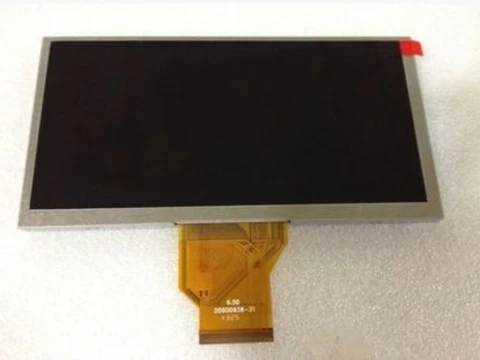

Innolux AT065TN14 6.5 inch 800x480 WVGA TFT LCD display panel front view

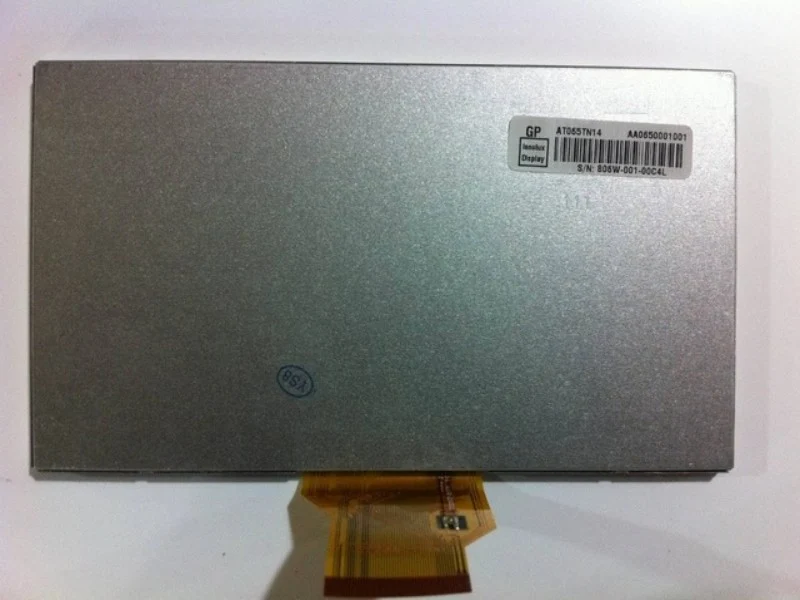

Back view of AT065TN14 showing RGB/LVDS interface connector and metal bezel
Innolux AT065TN14 6.5 inch 800x480 WVGA TFT LCD display panel front view
Back view of AT065TN14 showing RGB/LVDS interface connector and metal bezel

Innolux AT065TN14 6.5" 800x480 WVGA LCD Panel

Price: $30.00
$20.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

Innolux AT065TN14 6.5" 800x480 WVGA LCD Panel

Product Information Product Specifications
Model:
AT065TN14
Application:
Industrial
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
2982
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
0.500 KG
Overview

The Innolux AT065TN14 is a highly reliable 6.5-inch TFT-LCD display module engineered for demanding automotive and industrial environments. Featuring a crisp 800x480 (WVGA) resolution in a modern 16:9 widescreen format, this 6.5" screen delivers vibrant colors, high brightness, and excellent sunlight readability. The AT065TN14 replacement panel is the perfect drop-in solution for upgrading or repairing car navigation infotainment systems, industrial HMI control panels, and portable medical devices. At ZYLCDShop, we supply 100% original Innolux LCD modules, rigorously tested to ensure flawless performance, backed by secure packaging and fast global shipping.

Key Features of the Innolux 6.5" WVGA LCD Panel

  • Clear WVGA 16:9 Resolution: Native 800(RGB)×480 pixels provide sharp text and smooth graphics, ideal for interactive touch interfaces and map navigation.

  • High Brightness & Contrast: Enhanced LED backlight system ensures excellent visibility even in bright ambient light or direct sunlight conditions (typical for automotive use).

  • Wide Viewing Angles: Advanced optical film technology allows drivers and operators to view the screen clearly from multiple seating or standing positions.

  • Rugged Automotive Grade: Designed to withstand extreme temperature fluctuations, high humidity, and continuous vibration found in vehicles and factory floors.

  • Standard Interface: Equipped with a reliable RGB/LVDS interface for seamless integration with standard embedded motherboards.

  • Long-Life LED Backlight: Energy-efficient WLED backlighting provides an extended operational lifespan, reducing long-term maintenance costs.

Technical Specifications

ParameterDetails
ManufacturerInnolux (Chimei Innolux)
Model NumberAT065TN14
Screen Size6.5 Inch Diagonal
Resolution800(RGB)×480, WVGA
Active Area142.1(W) × 85.3(H) mm
Outline Dimensions153.5(W) × 97.0(H) × 7.2(D) mm (Typical)
Signal InterfaceRGB / LVDS (Check specific revision)
Brightness350 ~ 450 cd/m² (Typ. High Brightness)
Contrast Ratio600:1 (Typ.)
Color Support16.7M (8-bit RGB)
Response Time20ms (Typ.)(Tr+Td)
BacklightWLED (White LED)
Operating Temp.-20 ~ 70 °C (Wide Temperature)

Applications for the 6.5-Inch Innolux TFT Module

Thanks to its compact size, high brightness, and rugged durability, the AT065TN14 is widely deployed across multiple high-demand sectors:

  • Automotive Infotainment: In-dash car navigation systems, central control consoles, and rear-seat entertainment displays.

  • Industrial HMI: Operator panels for CNC machines, PLC control interfaces, and factory automation dashboards.

  • Smart Home Appliances: Control screens for high-end refrigerators, smart thermostats, and home security hubs.

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
Innolux AT065TN14 6.5" 800x480 WVGA LCD Panel

Innolux AT065TN14 6.5" 800x480 WVGA LCD Panel

AT065TN14

Samsung LTM185AT01 18.5" Industrial LCD Display Panel 1366×768

Samsung LTM185AT01 18.5" Industrial LCD Display Panel 1366×768

LTM185AT01

18.5"
1366×768 (WXGA)
250 cd/m²
600:1
80/80/80/80
CCFL
LVDS
Color TFT LCD (LCM)
Sharp LMBHAT014GC 3.2" Industrial LCD Display Panel 240×320 QVGA LED RGB

Sharp LMBHAT014GC 3.2" Industrial LCD Display Panel 240×320 QVGA LED RGB

LMBHAT014GC

240×320 QVGA
120 cd/m² (ref)
200:1 (ref)
35/35/20/15 (ref)
LED
RGB
LCM
AT065TN14 CELL  6.5"  LCD display screens  for  INNPLUX

AT065TN14 CELL 6.5" LCD display screens for INNPLUX

AT065TN14 CELL

6.5"
800(RGB)×480, WVGA 145PPI
0 cd/m²
500:1 (Typ.) (TM)
70/70/50/70 (Typ.)(CR≥10)
No B/L
Built-in COG NT52001 + NT39419B
a-Si TFT-LCD, LCM
AT065TN14 is a Display screen Product from .According to 's product specification sheet,AT065TN14 display has a resolution of , Contrast Ratio is ,Viewing Angle is ,Lamp Type is ,Signal Interface is ,Brightness is .Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of AT065TN14 after packaging is 0.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
