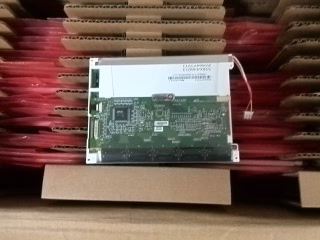

6.4 inch PD064VT2(LF)/PD064VT2-01 industrial lcd touch monitor
30Pin 3.3V parallel RGB TTL signal is highly compatible with legacy industrial MCU control boards without LVDS output, greatly simplifying screen replacement for obsolete production machinery. The module PCB has no integrated CCFL drive circuit; a dedicated single-lamp high-voltage CCFL inverter must be matched to power the backlight, with more complicated wiring than modern WLED industrial panels.
| Parameter | Technical Specification |
|---|---|
| Full Model | PD064VT2-01 / PD064VT2(LF) |
| Brand | PVI (Prime View) |
| Diagonal Size | 6.4 inches |
| Native Resolution | 640(H) × 480(V) VGA, 4:3 square, 125 PPI |
| LCD Technology | a-Si TN TFT-LCD, Transmissive, Normally White |
| Pixel Arrangement | RGB vertical stripe |
| Color Depth | Single channel 6-bit RGB, 262K display colors |
| Signal Interface | Single-channel 6-bit Parallel RGB TTL, 30Pin FPC, 3.3V logic voltage |
| Backlight System | Single side single CCFL tube, no onboard CCFL driver IC, external single-channel high voltage CCFL inverter required |
| Rated Backlight Lifespan | 50,000 hours typical |
| Typical Brightness | 150 cd/m² standard industrial brightness |
| Typical Contrast Ratio | 400:1 |
| Viewing Angle (CR≥10, L/R/U/D) | 45° / 45° / 15° / 35°, Optimal viewing: 6 o’clock front lower |
| Response Time (Tr / Td) | 15ms / 25ms typical |
| Refresh Rate | 60Hz standard |
| Pixel Pitch | 0.203 × 0.203 mm |
| Active Display Area (AA) | 129.6 mm (W) × 97.44 mm (H) |
| Overall Outline Dimension | 159.0 mm (W) × 117.0 mm (H) × 6.4 mm ultra-thin |
| Net Weight | 165 g ±10 g lightweight |
| Surface Treatment | Matte AG anti-glare polarizer, scratch resistant coating |
| Operating Temperature Range | 0 ℃ ~ +60 ℃ standard indoor industrial grade |
| Storage Temperature Range | -20 ℃ ~ +70 ℃ |
| Touch Panel | Bare LCD without integrated touch; 4-wire resistive touch film optional optical bonding to form touch monitor |
| Typical Power Consumption | 2.5 W |
| Compliance Standard | RoHS Lead-Free Certified, mercury-containing CCFL backlight |
| Product Status | EOL Discontinued legacy industrial panel, only A-grade tested spot stock for equipment MRO replacement |
Ultra-thin 6.4mm thickness & lightweight 165g, fit narrow embedded control box cavity
Classic 6.4" VGA 4:3 square screen, fully compatible with vintage injection molding & CNC machine control software
Mature single CCFL backlight design, low failure rate for 24/7 non-stop production workshop equipment
Simple parallel RGB TTL interface, widely matched with old industrial single-chip control mainboards
PD064VT2-01 and PD064VT2(LF) fully interchangeable, abundant aftermarket replacement stock
Stable static image display performance, no screen burn-in for long-hour parameter monitoring
Support custom touch bonding to complete industrial touch monitor solution
Injection molding machine, plastic extruder original operation control display & touch monitor
Vintage small CNC lathe, milling machine, textile loom HMI monitoring screens
Compact PLC embedded control terminals, frequency converter parameter display modules
Laboratory old testing, measuring and analytical instrument auxiliary monitors
Small commercial catering equipment timing & parameter touch control terminals
Replacement spare screen for PVI PD064VT2 series 6.4" CCFL parallel TFT modules
