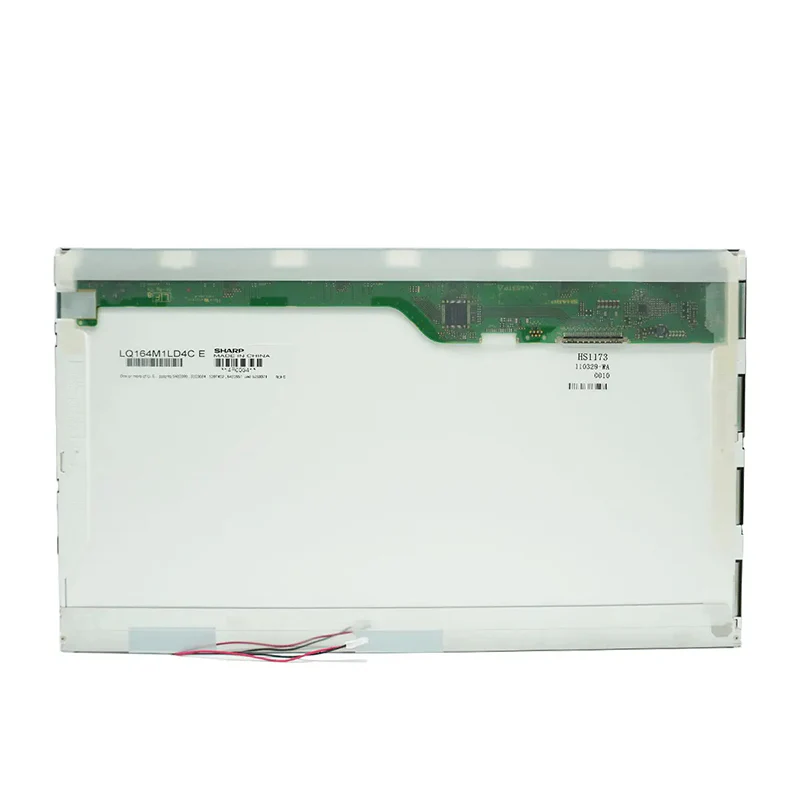

16.4 inch screen LQ164M1LD4C lcd module 1920*1080 lcd display panel

LQ164M1LD4C is a 16.4" a-Si TFT-LCD, LCM Display screen Product from SHARP.According to SHARP's product specification sheet,LQ164M1LD4C display has a resolution of 1920(RGB)×1080, FHD 134PPI, Contrast Ratio is 500 : 1 (Typ.) (TM),Viewing Angle is 45/45/10/30 (Typ.)(CR≥10),Lamp Type is CCFL,Signal Interface is LVDS (2 ch, 6-bit) 30 pins Connector,Brightness is 220 cd/m2 (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of LQ164M1LD4C after packaging is 3.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
