Sharp LQ150X1LG92 15.0-Inch TFT LCD Panel 1024×768 Industrial Display
Sharp LQ150X1LG92 15.0-Inch TFT LCD Panel 1024×768 Industrial Display
Price: $125.00
$120.00/ piece
Add to cart
LQ150X1LG92
LQ150X1LG92
LQ150X1LG92
LQ150X1LG92

Sharp LQ150X1LG92 15.0-Inch TFT LCD Panel 1024×768 Industrial Display

Price: $125.00
$120.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

Sharp LQ150X1LG92 15.0-Inch TFT LCD Panel 1024×768 Industrial Display

Product Information Product Specifications
Model:
LQ150X1LG92
Brand:
SHARP
Application:
Industrial
Size:
15"
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
48
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
2.500 KG
Overview

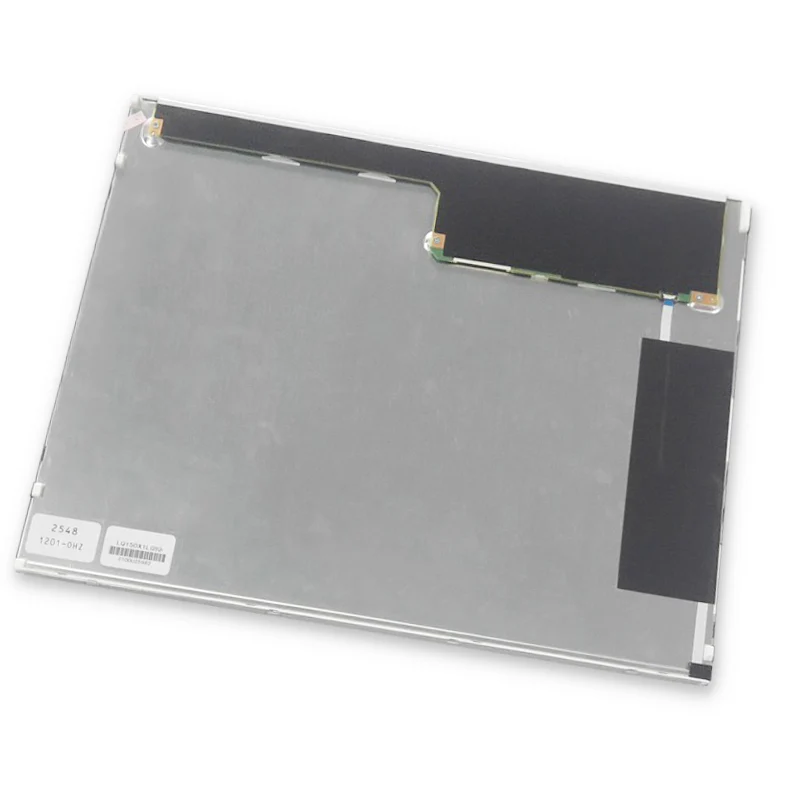

Sharp LQ150X1LG92 15.0-Inch Industrial TFT LCD Display Module


The Sharp LQ150X1LG92 is a 15.0-inch a-Si TFT-LCD module designed for industrial equipment requiring long-term reliability and excellent image quality. It features a 1024 × 768 (XGA) resolution, TN Normally White transmissive display mode, a 20-pin LVDS interface, and an integrated WLED backlight with LED driver. The panel delivers 400 cd/m² brightness, an 800:1 contrast ratio, and a 50,000-hour backlight lifetime, making it ideal for demanding industrial environments.


Key Features

15.0-inch industrial TFT LCD panel

Native resolution: 1024 × 768 (XGA)

a-Si TFT active matrix technology

TN Normally White, Transmissive display

Integrated WLED backlight with LED driver

High brightness: 400 cd/m²

Wide viewing angles

50,000-hour LED backlight life

Matte anti-glare surface with 3H hard coating

Designed for industrial and embedded applications


Technical Specifications

SpecificationDetails
ModelLQ150X1LG92
ManufacturerSharp
Display Size15.0 Inch
LCD Typea-Si TFT-LCD
Resolution1024 × 768 (XGA)
Aspect Ratio4:3
Display ModeTN, Normally White, Transmissive
Active Area304.128 × 228.096 mm
Outline Dimensions326.5 × 253.5 × 10.1 mm
Pixel Pitch0.297 × 0.297 mm
Brightness400 cd/m² (Typ.)
Contrast Ratio800:1 (Typ.)
Viewing Angle80°/80°/65°/80°
Display Colors16.2 Million
InterfaceLVDS (1-channel, 8-bit)

Typical Applications

Industrial Human Machine Interface (HMI)

Factory automation equipment

CNC machine controllers

Medical devices

Industrial computers (IPC)

Test and measurement instruments

Gaming and amusement machines

Embedded control systems

Industrial monitor replacement


Why Choose the Sharp LQ150X1LG92?

The LQ150X1LG92 is a dependable replacement LCD for legacy industrial systems. Its high brightness, long-life LED backlight, and standard LVDS interface ensure stable performance in demanding applications.

Advantages include:

High 400 cd/m² brightness

1024×768 XGA resolution

Long-life 50,000-hour WLED backlight

Wide viewing angles

Standard 20-pin LVDS interface

Industrial-grade reliability

Original Sharp display quality


Quality Assurance

Original Sharp LCD panel

100% tested before shipment

Anti-static protective packaging

OEM replacement support

Bulk order availability

Worldwide shipping

Technical compatibility assistance


FAQ

What is the resolution of the LQ150X1LG92?

The panel has a native 1024 × 768 (XGA) resolution.

What interface does the LQ150X1LG92 use?

It uses a 20-pin LVDS (1-channel, 8-bit) interface operating at 3.3V.

What type of backlight does it use?

The panel features a WLED backlight with an integrated LED driver and a typical lifetime of 50,000 hours.

Is the LQ150X1LG92 suitable for industrial applications?

Yes. It is commonly used in industrial automation, HMI systems, CNC equipment, industrial PCs, medical devices, and embedded control systems.

Does this LCD include a touchscreen?

No. The standard LQ150X1LG92 is a display-only TFT LCD panel. An external resistive or capacitive touch panel can be added if required.
