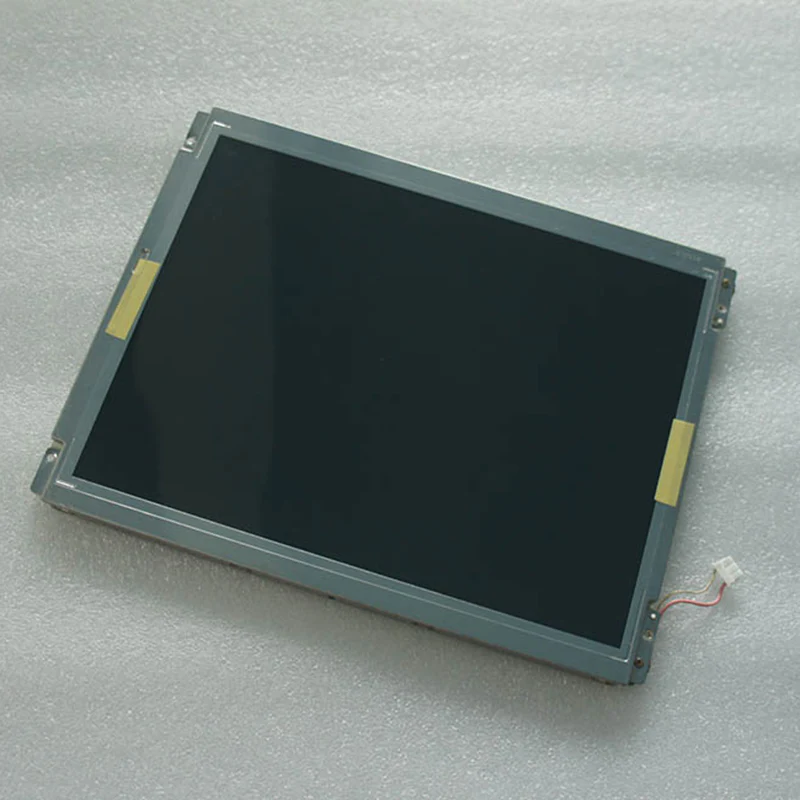

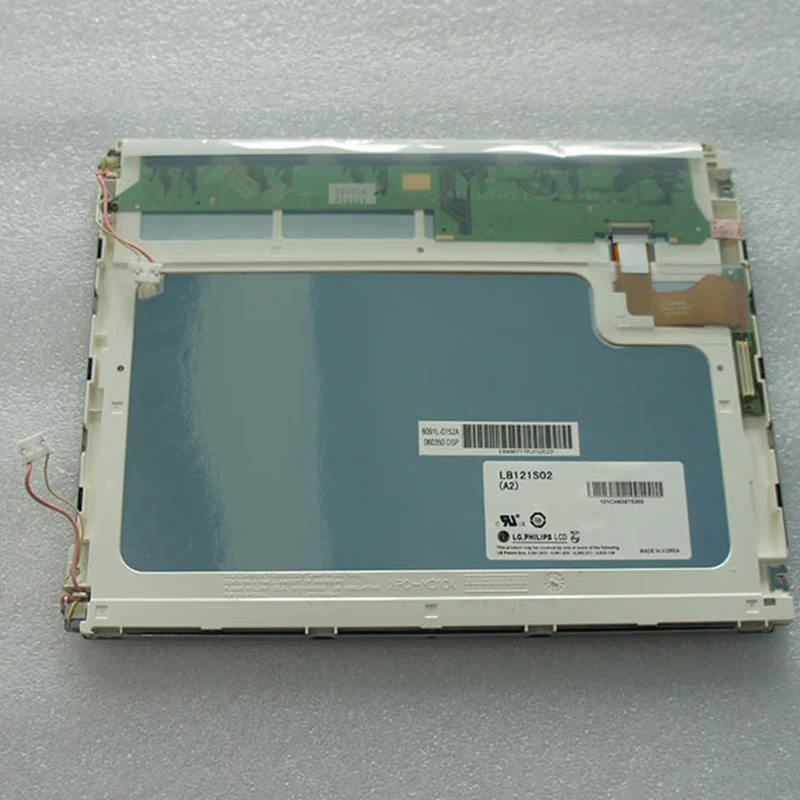

12.1 inch screen LB121S02-A2 lcd module 800*600 Module Display lcd display panel

Data sheets：

12.1 inch screen LB121S02-A2 lcd module 800*600 Module Display lcd display panel.pdf

Product Information Product Specifications

Model:

LB121S02-A2

Brand:

Application:

Industrial

Size:

12.1"

Resolution:

800(RGB)×600, SVGA 82PPI

Brightness:

300 cd/m² (Typ.)

Contrast Ratio:

200:1 (Typ.) (TM)

Viewing Angle:

200:1 (Typ.) (TM)

Lamp Type:

CCFL [2 pcs] , 50K hours , W/O Driver

Signal Interface:

Parallel RGB (1 ch, 6-bit) , 41 pins Connector

Panel Type:

a-Si TFT-LCD, LCM

Ordering instructions

Quality:

test ok before ship it

RMA Policy:

RMA 6 month

Sample:

Paid Sample

Stock:

100

Stock Location:

China

Delivery:

WorldWide

Lead Time:

1-3 Days

Weight:

1.500 KG

Overview

Product display

Product Comparison

Model:

Size:

Resolution:

Brightness:

Contrast Ratio:

Viewing Angle:

Lamp Type:

Signal Interface:

Panel Type:

12.1 inch screen LB121S02-A2 lcd module 800*600 Module Display lcd display panel

LB121S02-A2

12.1"

800(RGB)×600, SVGA 82PPI

300 cd/m² (Typ.)

200:1 (Typ.) (TM)

CCFL [2 pcs] , 50K hours , W/O Driver

Parallel RGB (1 ch, 6-bit) , 41 pins Connector

a-Si TFT-LCD, LCM

LB121S03-TL01 12.1" lcd display screens for LG

LB121S03-TL01

12.1"

800(RGB)×600, SVGA 82PPI

400 cd/m² (Typ.)

500 : 1 (Typ.) (TM)

65/65/50/60 (Typ.)(CR≥10)

2 pcs CCFL , 50K hours , No Driver

LVDS (1 ch, 6-bit) , 20 pins Connector

a-Si TFT-LCD, LCM

LB121S03-TL04 12.1 inch lcd screen 800*600 tft lcd module lcd screen display For LG

LB121S03-TL04

12.1"

800(RGB)×600, SVGA, 82PPI

400 cd/m2 (Typ.)

600 : 1 (Typ.) (TM)

70/70/55/65 (Typ.)(CR≥10)

WLED , 50K hours , With LED Driver

LVDS (1 ch, 6/8-bit) , 30 pins Connector

a-Si TFT-LCD, LCM

12.1 inch screen LB121S03-TL02 lcd module 800*600 lcd display panel

LB121S03-TL02

12.1"

800(RGB)×600, SVGA 82PPI

400 cd/m² (Typ.)

600:1 (Typ.) (TM)

65/65/50/60 (Typ.)(CR≥10)

2 pcs CCFL , 50K hours , Without Driver

LVDS (1 ch, 8-bit) , 20 pins Connector

a-Si TFT-LCD, LCM

LB121S02-A2 is a 12.1" a-Si TFT-LCD, LCM Display screen Product from LG.According to LG's product specification sheet,LB121S02-A2 display has a resolution of 800(RGB)×600, SVGA 82PPI, Contrast Ratio is 200:1 (Typ.) (TM),Viewing Angle is 200:1 (Typ.) (TM),Lamp Type is CCFL [2 pcs] , 50K hours , W/O Driver,Signal Interface is Parallel RGB (1 ch, 6-bit) , 41 pins Connector,Brightness is 300 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of LB121S02-A2 after packaging is 1.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.

Questions & Answers

Ask a Question >

All (5) uncategorised (5) Package (0) Delivery (0) Payment (0) After Sale (0)

Is there a specific power sequence I need to follow?

Yes, a specific power sequence must be followed for reliable operation and to prevent damage. Generally, you need to apply the LCD logic power (VCC) and ensure interface signals are stable before turning on the backlight power (CCFL). An incorrect sequence may cause display malfunctions or damage the internal circuitry. Detailed timing parameters (delay times) should be referred to in the "Power Sequence" table within the datasheet

Where can I find detailed technical documentation, such as the datasheet or specification?

The detailed specification contains critical information such as absolute maximum ratings, electrical characteristics, signal timing, and optical characteristics (like contrast ratio, response time, and viewing angle). You can find the complete datasheet document on professional LCD technical websites, electronic component search platforms, or by searching for "LB121S02-A2 datasheet PDF"

What is the interface type and pin configuration?

The data interface uses a 41-pin connector (manufacturer part number： Hirose DF9B-41P-1V or equivalent). It receives 6-bit parallel RGB data signals along with control signals like Vsync (Vertical Sync), Hsync (Horizontal Sync), and DCLK (Data Clock). The backlight has a separate interface, typically using a JST BHR-03VS-1 connector

What type of backlight does this screen use?

This model uses an integral CCFL (Cold Cathode Fluorescent Lamp) backlight system. This means it requires an external inverter to power the lamps, unlike modern LCDs that commonly use LED backlighting

What are the basic specifications and resolution of the LB121S02-A2 display?

This is a 12.1-inch a-Si TFT-LCD (amorphous silicon Thin Film Transistor Liquid Crystal Display) module. It has an SVGA resolution of 800x600, which means the pixel array consists of 800 columns and 600 rows, giving a 4：3 aspect ratio. Each pixel is composed of Red, Green, and Blue sub-pixels arranged in vertical stripes, and it can display more than 262,144 colors through 6-bit signal processing
