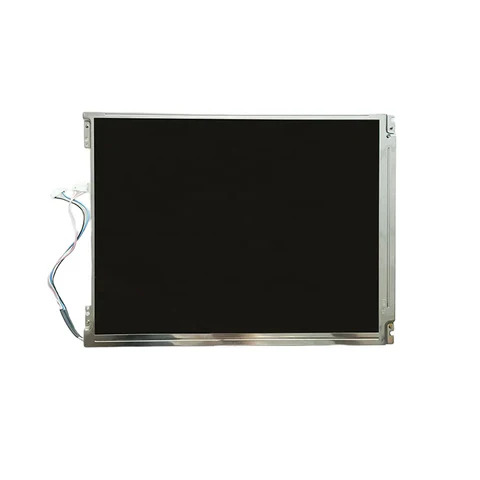

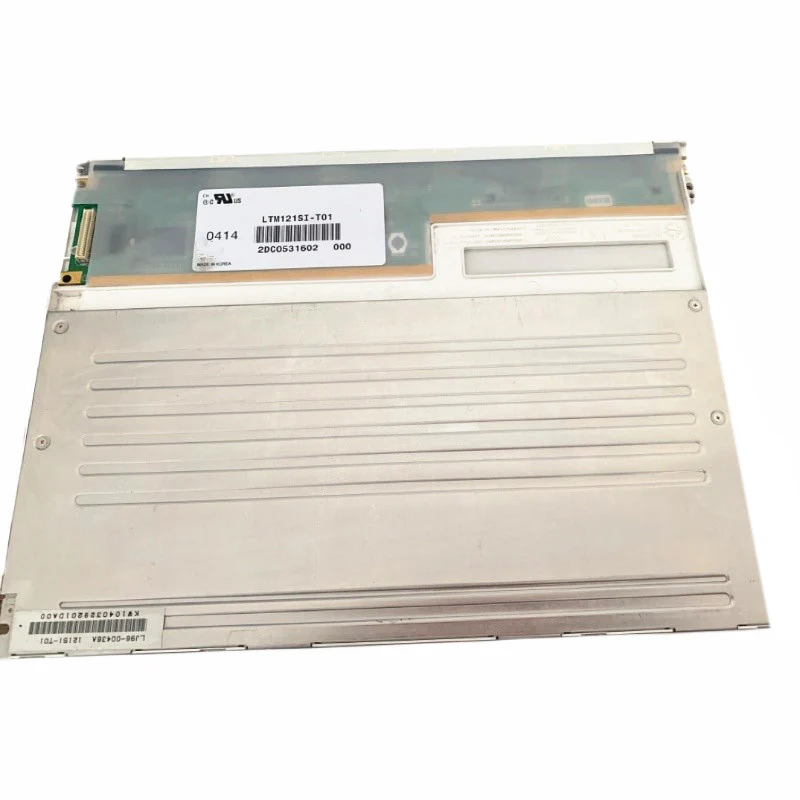

LTM121SI-T01 Samsung  12.1 inch 800*600 lcd display screen
LTM121SI-T01 Samsung 12.1 inch 800*600 lcd display screen
Price: $85.00
$80.00/ piece
Add to cart
LTM121SI-T01 Samsung  12.1 inch 800*600 lcd display screen
LTM121SI-T01 Samsung
LTM121SI-T01 Samsung
LTM121SI-T01 Samsung
LTM121SI-T01 Samsung

LTM121SI-T01 Samsung 12.1 inch 800*600 lcd display screen

Price: $85.00
$80.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

LTM121SI-T01 Samsung 12.1 inch 800*600 lcd display screen

Product Information Product Specifications
Model:
LTM121SI-T01
Brand:
Samsung
Application:
Industrial
Size:
12.1"
Resolution:
800(RGB)×600, SVGA 82PPI
Brightness:
300 cd/m² (Typ.)
Contrast Ratio:
300:1 (Typ.) (TM)
Viewing Angle:
60/60/45/55 (Typ.)(CR≥10
Lamp Type:
2 pcs CCFL , 50K hours , Without Driver
Signal Interface:
CMOS (1 ch, 6-bit) , 41 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Frame Rate:
60Hz
Active Area:
246(H)×184.5(V) mm
Outline:
275(H)×205.5(V)×10.7(D) mm
Storage Temp:
-25 ~ 60 °C
Operating Temp:
0 ~ 50 °C
Support Color:
262K
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
500
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.500 KG
Overview

LTM121SI-T01 is a classic 12.1-inch industrial TFT LCD panel launched by Samsung. Adopts mature a-Si technology, equipped with CCFL backlight and CMOS interface. With standard 800×600 resolution, it features clear display, low power consumption, shock resistance and long service life. Perfect for old industrial screen replacement and embedded display projects


LTM121SI-T01 Samsung   lcd display screen Highlights:

Original Samsung grade A panel, no dead pixels and scratches

Classic 800×600 SVGA resolution, widely compatible with industrial devices

300cd/m² standard brightness, clear viewing indoors

Traditional CMOS parallel interface, match old industrial driver boards

Stable CCFL backlight design for long-time continuous working

4:3 standard aspect ratio, friendly for HMI program layout

Industrial temperature range, suitable for factory working environment


LTM121SI-T01 Samsung   lcd display screen Specification:

ParameterSpecification
ModelLTM121SI-T01
BrandSamsung
Screen Size12.1 Inch
Resolution800×600 SVGA
Panel Typea-Si TFT-LCD
Typical Brightness300cd/m²
Contrast Ratio300:1
Display Color262K Colors
Viewing Angle60/60/45/55 (Typ.)(CR≥10
Backlight TypeCCFL
Interface TypeCMOS Parallel
Supply Voltage5V
Operating Temperature0℃ ~ 50℃
Storage Temperature-25℃ ~ 60℃
CertificationRoHS Compliant
Touch FunctionWithout Touch Screen

LTM121SI-T01 Samsung   lcd display screen Applications:

 CNC Industrial Equipment: Machine tool display, lathe control system screen

 Industrial HMI: PLC control panel, embedded industrial all-in-one screen

 Medical Devices: Medical testing equipment, clinical instrument display

 Industrial Monitoring: Workshop monitoring display, on-site terminal screen

 Screen Replacement: Replacement for old 12.1 inch industrial LCD panels


FAQ:

Q1: Is LTM121SI-T01 original Samsung panel?

A1: All are brand new original Samsung industrial panels, no used or refurbished goods, official datasheet is available.

Q2: What interface does this screen use? Easy to replace?

A2: It adopts standard CMOS parallel interface, widely used in old industrial control equipment, easy direct replacement.

Q3: Does this LCD come with touch screen?

A3: Standard version without touch screen, resistive or capacitive touch can be matched separately.

Q4: What is your warranty and delivery time?

A4: 12 months warranty period, sufficient stock, fast shipment for samples and bulk orders.
