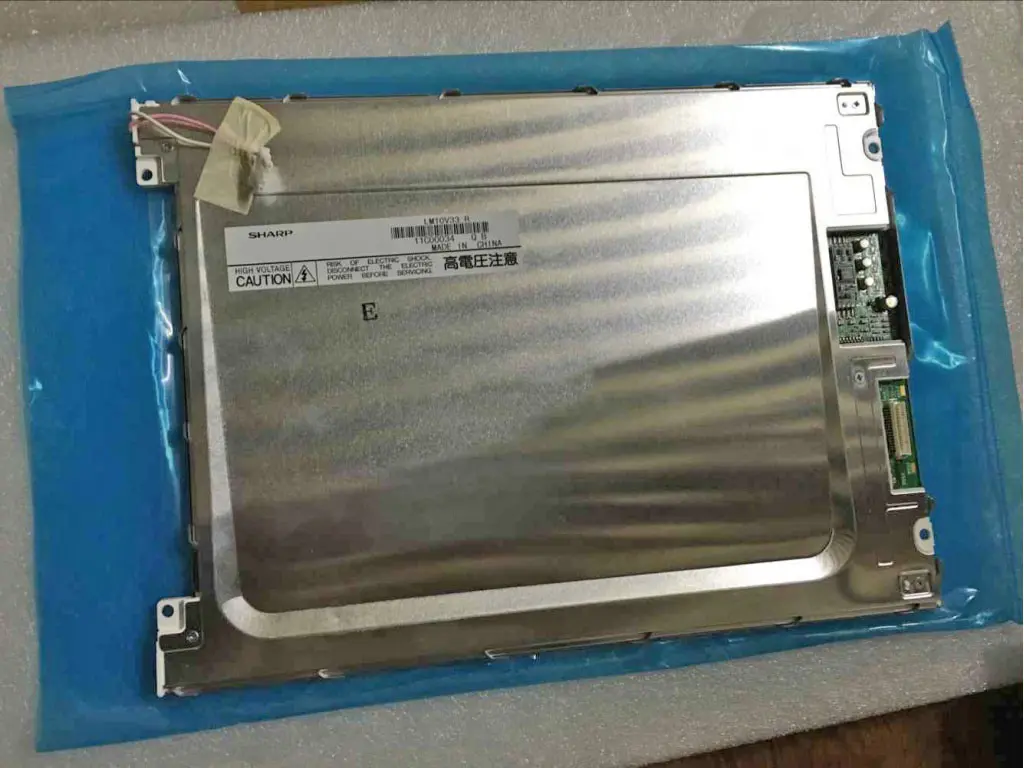

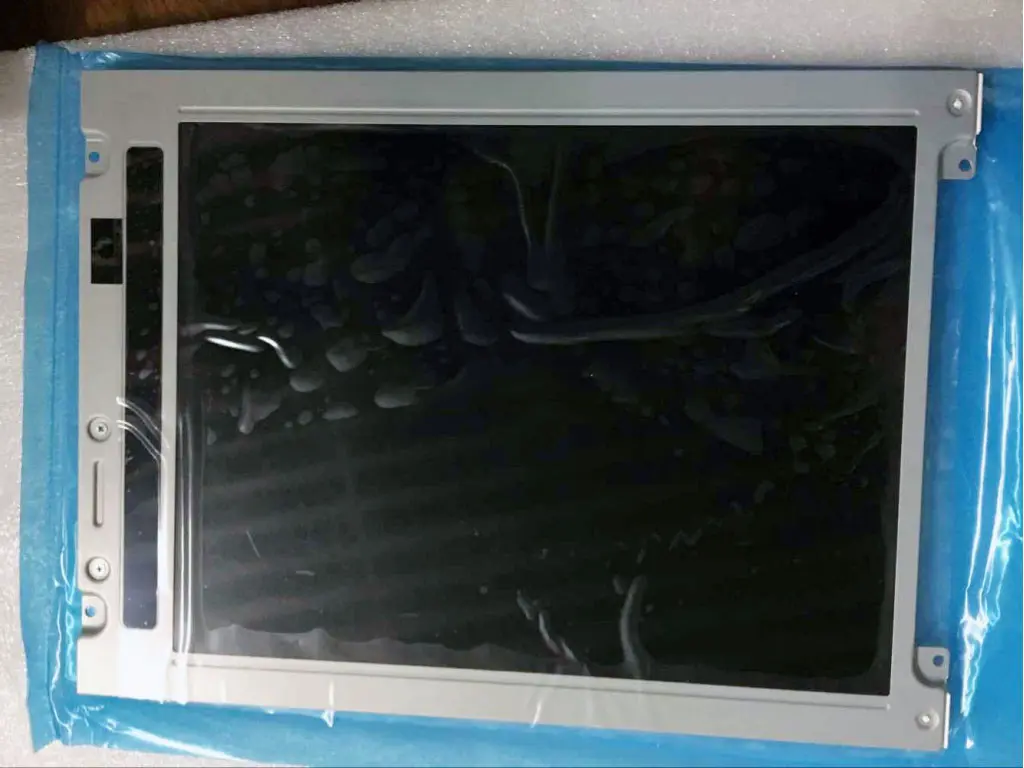

10.4" Sharp CSTN LCD Display LM10V33 640×480 VGA LCM Module

Name: 10.4" Sharp CSTN LCD Display LM10V33 640×480 VGA LCM Module
Brand: SHARP
Price: 153.0 USD

Price: $155.00

$153.00/ piece

Delivery:

Payment:

Calculate shipping price

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

Mr.

Ms.

1. Quote with shipping freight?

Email : *

YES

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

Specifications Ordering instructions Overview Product Comparison Q&A Reviews

10.4" Sharp CSTN LCD Display LM10V33 640×480 VGA LCM Module

Data sheets：

10.4" Sharp CSTN LCD Display LM10V33 640×480 VGA LCM Module.pdf

Product Information Product Specifications

Model:

LM10V33

Brand:

SHARP

Application:

Industrial

Size:

10.4"

Resolution:

640(RGB)×480, 4:3, VGA

Brightness:

70 cd/m² (Typ.)

Contrast Ratio:

30:1 (Typ.) (TM)

Lamp Type:

1 pcs CCFL, Without Driver

Signal Interface:

Parallel Data (1ch, 8-bit), 31 pins Connector

Panel Type:

CSTN-LCD, LCM

Active Area:

211.2(H)×158.4(V) mm

Outline:

246(H)×193.6(V)×8.5(D) mm

Storage Temp:

25 ~ 60 °C

Operating Temp:

0 ~ 40 °C

Support Color:

Color

Ordering instructions

Quality:

test ok before ship it

RMA Policy:

RMA 6 month

Sample:

Paid Sample

Stock:

260

Stock Location:

China

Delivery:

WorldWide

Lead Time:

1-3 Days

Weight:

1.000 KG

Overview

Sharp LM10V33 is a lightweight thin 10.4-inch VGA color CSTN integrated LCD module, widely factory-installed on vintage injection molding machines, small CNC controllers, textile printing equipment and legacy industrial PLC HMI terminals.

Adopting Normally Black color FSTN liquid crystal technology, it is optimized for long-term static text, numerical parameters, production curves and simple color industrial UI display under 24/7 continuous indoor constant-temperature workshop operation. It uses standard 31-pin 8-bit parallel TTL RGB bus with 5V logic voltage, fully compatible with early industrial single-chip mainboards without LVDS signal output, eliminating extra signal conversion hardware during screen replacement.

Single-side single CCFL backlight layout requires an independent single-channel CCFL inverter board to light the backlight; ultra-light 450g weight and thin 8.5mm thickness greatly save cabinet installation space compared to traditional thick CSTN modules. The matte polarizer weakens factory ambient light reflection for basic viewing demand.

Parameter	Specification
Model Number	LM10V33
Manufacturer	Sharp Corporation (Japan)
Diagonal Size	10.4 inches
Native Resolution	640(RGB) × 480 VGA, 4:3 Aspect Ratio, 76 PPI
LCD Technology	Color CSTN / FSTN, Transmissive, Normally Black
Color Depth	4096 display colors (12-bit RGB)
Pixel Arrangement	RGB Vertical Stripe
Signal Interface	Single-channel 8-bit Parallel TTL RGB, 31Pin Connector, 5V Logic Voltage
Backlight System	Single-side single CCFL lamp, no onboard drive circuit, external single-channel CCFL inverter required, 40,000 hrs typical lifespan
Typical Brightness	70 cd/m²
Typical Contrast Ratio	30:1
Total Response Time (Tr+Td)	300 ms typical
Refresh Rate	60 Hz
Pixel Pitch	0.330 × 0.330 mm
Active Display Area (AA)	211.2 mm (W) × 158.4 mm (H)
Overall Outline Dimension	246.0 mm (W) × 193.6 mm (H) × 8.5 mm (D)
Net Weight	~450 g typical
Surface Treatment	Standard matte polarizer, no extra hard anti-scratch coating
Operating Temperature Range	0 ℃ ~ +40 ℃
Storage Temperature Range	-25 ℃ ~ +60 ℃
Touch Function	No integrated touch panel
Power Consumption	Low power ~4.0W
Compliance Standard	RoHS Lead-Free Certified, Mercury warning for CCFL backlight
Product Status	Discontinued legacy industrial CSTN module, only A-grade tested spot stock for equipment repair & cross-replacement

Application Scenarios

Auxiliary main HMI panels for injection molding, blow molding & plastic machinery
Old-generation small CNC machine tool operator display terminals
Textile, printing & packaging equipment control screens
Portable industrial test, measurement & analytical instruments
Frequency converter, hydraulic power cabinet static parameter monitoring terminals
Environmental monitoring & power distribution cabinet local display screens
Cross-replacement spare screen for Sharp LM10V33 series 10.4" CSTN color modules
Compact embedded PLC static text, bar graph and curve display equipment

FAQ

Q1: Does LM10V33 need an external inverter for backlight?

A1: Yes, single side single CCFL lamp without built-in drive circuit. A matched single-channel CCFL inverter board is mandatory; dual-lamp inverters or WLED drivers cannot be directly used.

Q2: What signal logic voltage does this panel adopt?

A2: 5V 8-bit parallel TTL RGB, mainstream standard for old Sharp CSTN industrial screens.

Q3: Can LM10V33 replace LM10V331 directly?

A3: Yes, consistent outline size, mounting holes and 31Pin TTL pinout; only confirm single-channel CCFL inverter matching, plug-and-play without mechanical modification.

Q4: What temperature environment is suitable for this CSTN screen?

A4: Operating temperature limited to 0~40℃, storage -25~60℃. It cannot work stably in unheated cold workshops or high-temperature machinery cabinets exceeding rated range, not wide-temperature industrial grade.

Q5: What are the main disadvantages of CSTN compared with modern TFT LCD?

A5: Slow response speed, narrow vertical viewing angle, low brightness (only 70 cd/m²), limited 4096-color gamut; unsuitable for fast dynamic images, machine vision inspection or high-precision grayscale display, only for static parameter monitoring.

Product Comparison

Model:

Size:

Resolution:

Brightness:

Contrast Ratio:

Viewing Angle:

Lamp Type:

Signal Interface:

Panel Type:

10.4" Sharp CSTN LCD Display LM10V33 640×480 VGA LCM Module

LM10V33

10.4"

640(RGB)×480, 4:3, VGA

70 cd/m² (Typ.)

30:1 (Typ.) (TM)

1 pcs CCFL, Without Driver

Parallel Data (1ch, 8-bit), 31 pins Connector

CSTN-LCD, LCM

lm104vc1t51 Sharp 10.4 inch lcd display module

lm104vc1t51

10.4"

640*480

2 pcs CCFL

CSTN-LCD, LCM

LCD display LQ104V1DG74 10.4 inch 640*480 Industrial screen

LQ104V1DG74

10.4"

640(RGB)×480, VGA 76PPI

370 cd/m² (Typ.)

800:1 (Typ.) (TM)

80/80/60/80 (Typ.)(CR≥10)

WLED , 70K hours , With LED Driver

CMOS (1 ch, 6-bit) , 40 pins Connector

a-Si TFT-LCD, LCM

LCD display LQ150X1LW94 15 inch 1024*768 Industrial screen Gaming

LQ150X1LW94

15"

1024(RGB)×768, XGA 85PPI

300 cd/m² (Typ.)

1500:1 (Typ.) (TM)

85/85/85/85 (Typ.)(CR≥10)

WLED , 50K hours , With LED Driver

LVDS (1 ch, 8-bit) , 30 pins Connector

a-Si TFT-LCD, LCM

LM10V33 is a 10.4" CSTN-LCD, LCM Display screen Product from SHARP.According to SHARP's product specification sheet,LM10V33 display has a resolution of 640(RGB)×480, 4:3, VGA, Contrast Ratio is 30:1 (Typ.) (TM),Viewing Angle is ,Lamp Type is 1 pcs CCFL, Without Driver,Signal Interface is Parallel Data (1ch, 8-bit), 31 pins Connector,Brightness is 70 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of LM10V33 after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
