Industrial display

AUO

10.4 inch touch display glass G104SN02 V1 lcd module 800*600 lcd display panel For AUO

Price: $85.00

$80.00/ Price

Delivery:

Payment:

Calculate shipping price

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

Mr.

Ms.

1. Quote with shipping freight?

Email : *

YES

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

Specifications Ordering instructions Overview Product Comparison Q&A Reviews

Product Information Product Specifications

Model:

G104SN02 V1

Brand:

AUO

Application:

Industrial

Size:

10.4"

Resolution:

800(RGB)×600, SVGA 96PPI

Brightness:

400 cd/m2 (Typ.)

Contrast Ratio:

500 : 1 (Typ.) (TM)

Viewing Angle:

80/80/60/80 (Typ.)(CR≥10)

Lamp Type:

2 pcs CCFL , 50K hours , Without Driver

Signal Interface:

LVDS (1 ch, 6/8-bit) , 20 pins Connector

Panel Type:

a-Si TFT-LCD, LCM

Ordering instructions

Quality:

test ok before ship it

RMA Policy:

RMA 6 month

Sample:

Paid Sample

Stock:

Stock Location:

China

Delivery:

WorldWide

Lead Time:

1-3 Days

Weight:

1.000 KG

Overview

G104SN02 V1: Product Information Product Specifications

Model	G104SN02 V1
Size	10.4"
Resolution	800(RGB)×600, SVGA 96PPI
Brightness	400 cd/m2 (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	80/80/60/80 (Typ.)(CR≥10)
Lamp Type	CCFL
Signal Interface	LVDS (1 ch, 6/8-bit) , 20 pins Connector
Panel Type	a-Si TFT-LCD, LCM

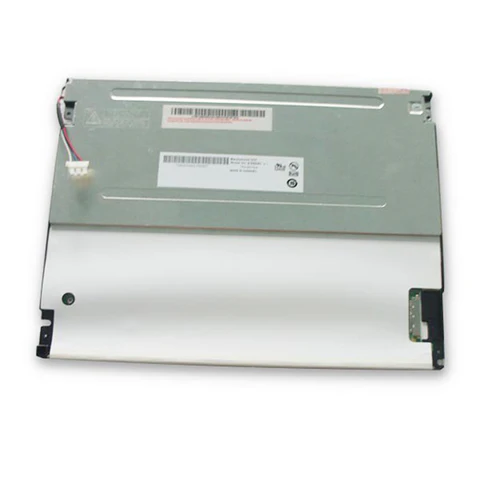

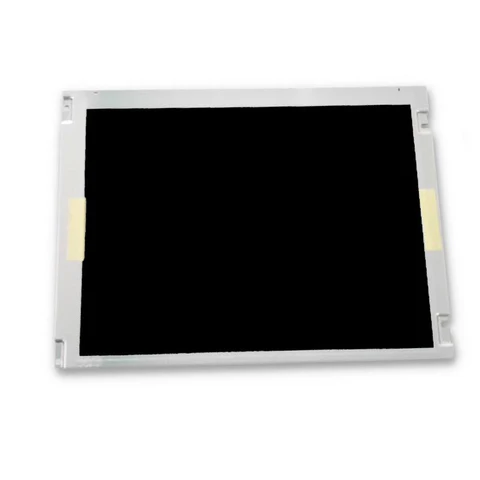

G104SN02 V1: Product show pictures

Product Comparison

Model:

Size:

Resolution:

Brightness:

Contrast Ratio:

Viewing Angle:

Lamp Type:

Signal Interface:

Panel Type:

10.4 inch touch display glass G104SN02 V1 lcd module 800*600 lcd display panel For AUO

G104SN02 V1

10.4"

800(RGB)×600, SVGA 96PPI

400 cd/m2 (Typ.)

500 : 1 (Typ.) (TM)

80/80/60/80 (Typ.)(CR≥10)

2 pcs CCFL , 50K hours , Without Driver

LVDS (1 ch, 6/8-bit) , 20 pins Connector

a-Si TFT-LCD, LCM

G104SN02 V.2 10.4" tft lcd module for AUO

G104SN02 V.2

10.4"

800(RGB)×600, SVGA 96PPI

400 cd/m² (Typ.)

700 : 1 (Typ.) (TM)

80/80/60/80 (Typ.)(CR≥10)

7S2P WLED , 50K hours , With LED Driver

LVDS (1 ch, 6/8-bit) , 20 pins Connector

a-Si TFT-LCD, LCM

G104SN03 V.5 10.4" lcd display module for AUO

G104SN03 V.5

10.4"

800(RGB)×600, SVGA 96PPI

230 (Typ.)(cd/m²)

500 : 1 (Typ.) (TM)

80/80/60/70 (Typ.)(CR=10)

9S6P WLED , 50K hours , With LED Driver

LVDS (2 ch, 8-bit) , Connector 30 pins

a-Si TFT-LCD, LCM

G104SN02 V.0 AUO 10.4 inch a-Si TFT-LCD LCM 800(RGB)×600 SVGA 96PPI

G104SN02 V.0

10.4"

800(RGB)×600, SVGA 96PPI

230 cd/m² (Typ.)

500:1 (Typ.) (TM)

BestViewon

1 pcs CCFL , 20K hours , Without Driver

LVDS(1ch,6-bit),20pinsConnector

a-Si TFT-LCD, LCM
