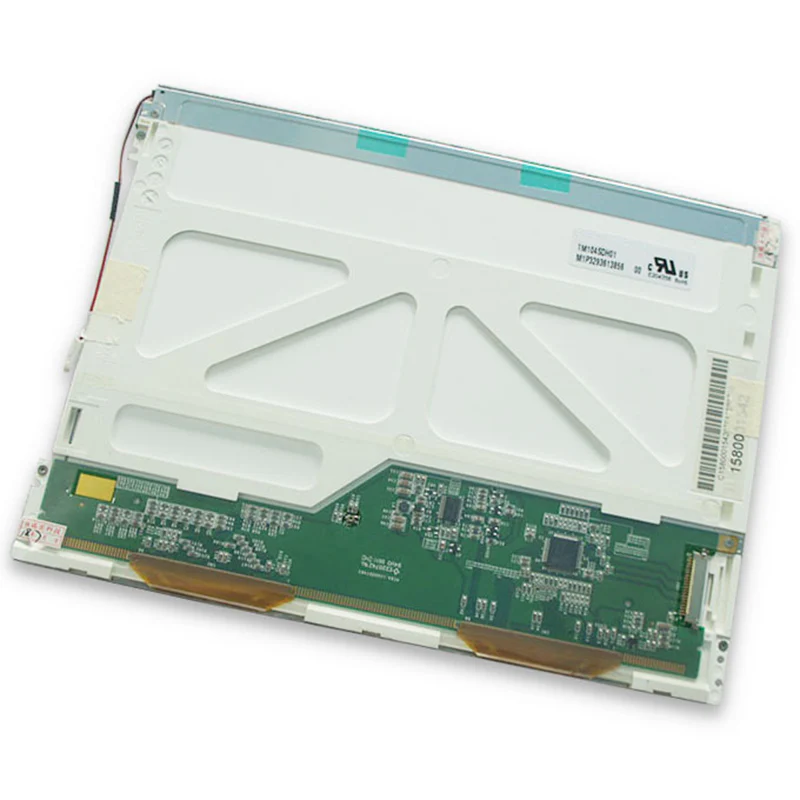

TM104SDH01 10.4" TFT LCD Panel  Tianma 800×600 Industrial LCD Module
TM104SDH01 10.4" TFT LCD Panel Tianma 800×600 Industrial LCD Module
Price: $109.00
$100.00/ piece
Add to cart
TM104SDH01 10.4
TM104SDH01 10.4
TM104SDH01 10.4
TM104SDH01 10.4

TM104SDH01 10.4" TFT LCD Panel Tianma 800×600 Industrial LCD Module

Price: $109.00
$100.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

TM104SDH01 10.4" TFT LCD Panel Tianma 800×600 Industrial LCD Module

Product Information Product Specifications
Model:
TM104SDH01
Application:
Industrial
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
997
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

Tianma TM104SDH01 10.4-Inch Industrial TFT-LCD Display Module


The Tianma TM104SDH01 is a reliable 10.4-inch industrial TFT-LCD display module designed for industrial computers, medical equipment, automation systems, and embedded display applications. Featuring a 800 × 600 SVGA resolution, LVDS interface, and high-brightness LED backlight, this panel delivers stable image performance and long-term reliability in demanding environments.

Manufactured by Tianma, the TM104SDH01 uses a-Si TFT-LCD technology with TN normally white display mode, providing clear image output, low power consumption, and excellent compatibility with existing industrial systems. Its compact 10.4-inch 4:3 format makes it a popular replacement solution for legacy equipment and OEM applications.


Key Features

10.4-inch industrial TFT LCD display

Native resolution: 800 × 600 (SVGA)

a-Si TFT-LCD technology

TN normally white transmissive display

LVDS interface (20-pin, 1 channel 6-bit)

LED white backlight design

Brightness up to 400 cd/m²

4:3 aspect ratio for industrial systems

Anti-glare surface treatment

Wide operating temperature range

Suitable for long lifecycle applications


Technical Specifications

SpecificationDetails
ModelTM104SDH01
ManufacturerTianma
Display Size10.4 Inch
Resolution800 × 600 (SVGA)
Display Technologya-Si TFT-LCD
Display ModeTN, Normally White, Transmissive
Aspect Ratio4:3
Brightness400 cd/m² (Typ.)
Contrast Ratio400:1 (Typ.)
Display Colors262K
Pixel ArrangementRGB Vertical Stripe
Active Area211.2 × 158.4 mm
Outline Size236 × 176.9 × 5.9 mm
InterfaceLVDS (1 ch, 6-bit, 20 pins)
BacklightWLED
Surface TreatmentMatte, Hard Coating (3H)
Input Voltage3.3V
Operating Temperature-20°C to +70°C
Storage Temperature-30°C to +80°C
Response TimeApprox. 10/15 ms


Typical Applications

The TM104SDH01 LCD panel is widely used in:

Industrial PC systems

Human Machine Interface (HMI) terminals

Factory automation equipment

Medical monitoring devices

Test and measurement instruments

Control panels

Embedded computing systems

Industrial replacement projects


Why Choose TM104SDH01?

The Tianma TM104SDH01 provides a dependable display solution for industrial environments requiring stable performance and long operating life. Its SVGA resolution, LVDS interface, LED backlight, and wide temperature capability make it suitable for equipment manufacturers and system integrators maintaining existing designs.

With a proven 10.4-inch form factor and strong compatibility, this TFT LCD module is an excellent choice for OEM replacement, repair, and industrial display integration projects.


Quality Assurance & Supply Support

Original Tianma LCD module

Fully tested before shipment

Anti-static protective packaging

Global shipping available

OEM and bulk order support

Replacement sourcing assistance

Technical compatibility support


FAQ Section

What resolution does the TM104SDH01 support?

The TM104SDH01 supports 800 × 600 SVGA resolution.

What interface does this LCD module use?

It uses an LVDS interface (1 channel, 6-bit, 20 pins).

Is TM104SDH01 suitable for industrial applications?

Yes. It is designed for industrial PC systems, medical equipment, automation devices, and embedded applications.

Does this panel include a touch screen?

No. The TM104SDH01 is a standard TFT LCD panel without touch functionality.
